Description

Product Description

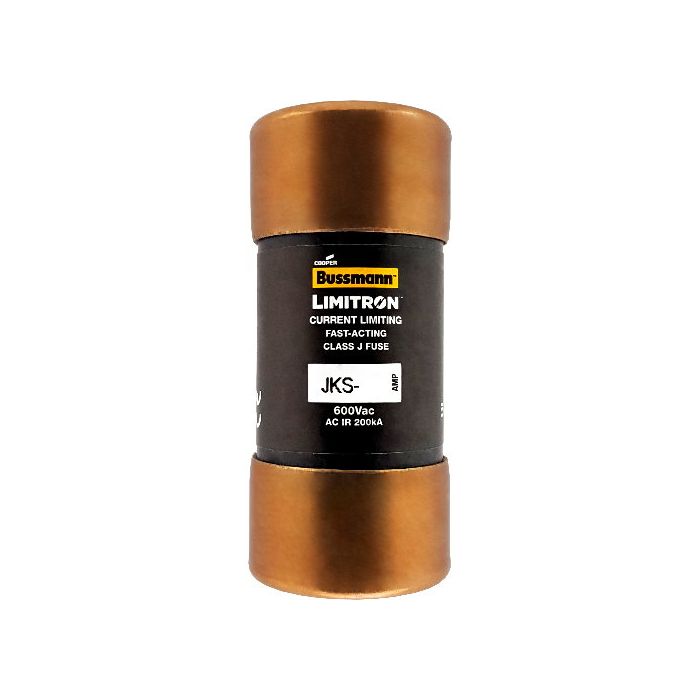

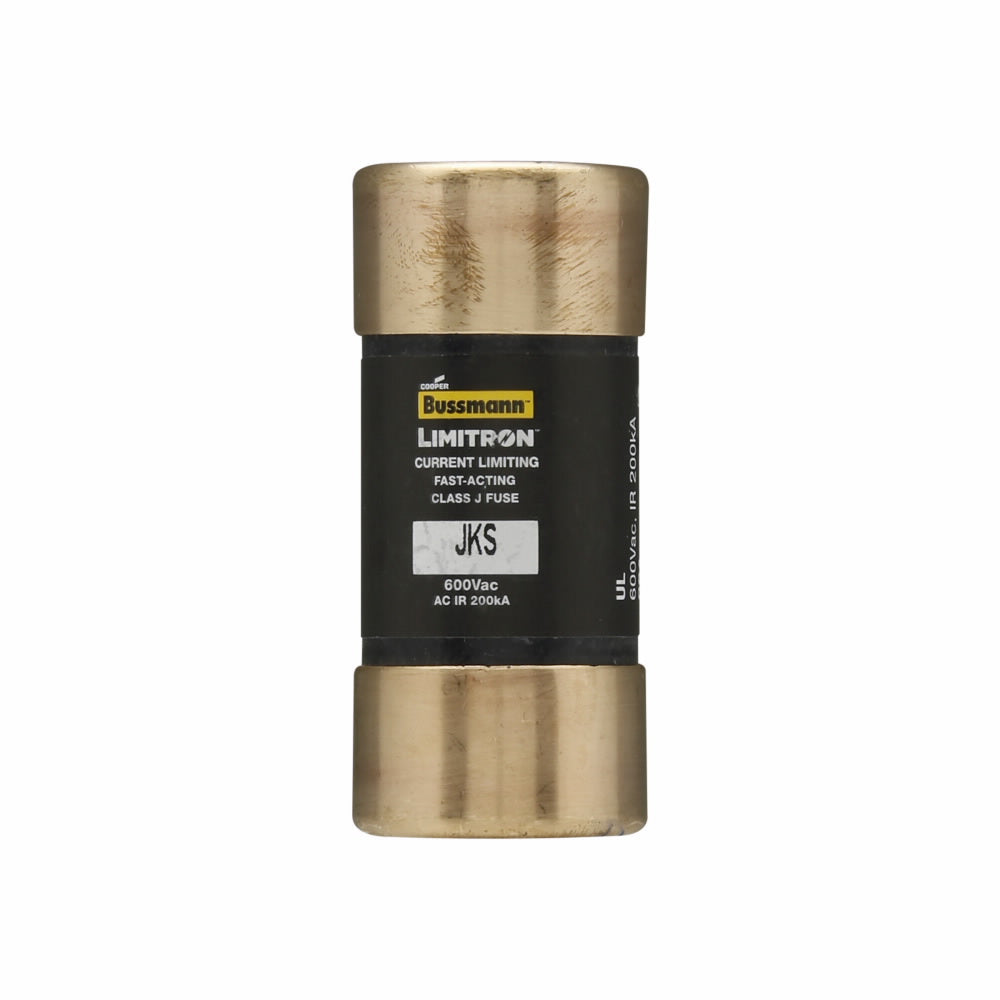

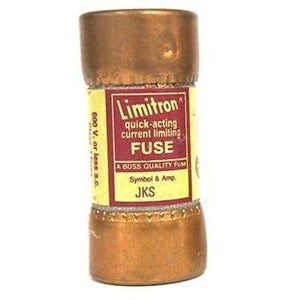

The BUSSMANN JKS-60 Series Class J fuse is a fast-acting, current limiting fuse with a 60 A amperage rating and a rejection style. It has an interrupting rating of 200kA at 600Vac. It provides short circuit protection and is suitable for industrial and commercial applications with specific current limitation requirements.

  • Fast-acting
  • Current limiting
  • Rejection style fuse
  • Interrupting rating of 200kA at 600Vac

Product Highlights

The BUSSMANN JKS-60 fuse offers reliable overcurrent protection for various applications. It is a UL and CSA Listed fuse with a 200kA interrupting rating.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: JKS-60
  • Country of Origin: MX
Technical Specifications
Product Name
Eaton Bussmann series JKS fuse
Catalog Number
JKS-60
UPC
051712630603
Product Length/Depth
2.38 in
Product Height
1 in
Product Width
1 in
Product Type
Fuse
Amperage Rating
60 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Amps
60
Volts AC
600
Fuse Class
UL Class J
Speed
Quick Acting
Current Limiting
Yes
Physical Size
1.06" x 2.38"
AC Voltage Rating
600
Interrupting Rating
10,000 AIC RMS @ 600VAC
UL Listed
Std. 248-8, Class J, Guide JDDZ, File E4273
CSA Certified
C22.2 No. 248.8, Class 1422-02, File 53787
DC Voltage Rating
175
Applications
Power Panelboards, Machinery Disconnects
Connection Type
Ferrule
Element
Single
End Type
Ferrule
Size
1.06 In Diameter X 2.38 In Length
Standard
CSA,E2186,UL
TC Connection
Ferrule End X Ferrule End
Voltage
600 Volt
Brand
Eaton
Sub Brand
Limitron
AC Adapter Current
60 Amps
Material
Melamine
Maximum Current
60 Amps
Mounting Type
Holder
Current Rating
60 Amps
Material Type
Copper
Interrupt Rating AC
200 kA
Ampere
60 A
Shape
Cartridge Fuses
Approvals
CE, UL, CSA
Substitute parts
Littelfuse JLS, Mersen A4J
Dimensions
1.06" Dia x 2.38" L (26.92x60.45mm)
Alternate Catalog Number
JKS-60
Application
Ind Facilities & Factories - Facility: Safety and Security Systems
Body Size
1.06 in Dia x 2.38 in L
Height
2.38 in
Height [Metric]
6.0452 cm
Length
2.38 in
Length [Metric]
6.0452 cm
Series
JKS
Standards
ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedUL 248-8 Guide JDDZ UL File No. E4273CSA C22.2 Class 1422-02CSA File No. 53787
Terminal Type
Ferrule
UNSPSC
39121626
UPC 11
05171263060
UPC 12
051712630603
Width
1.60 in
Width [Metric]
4.0640 cm
