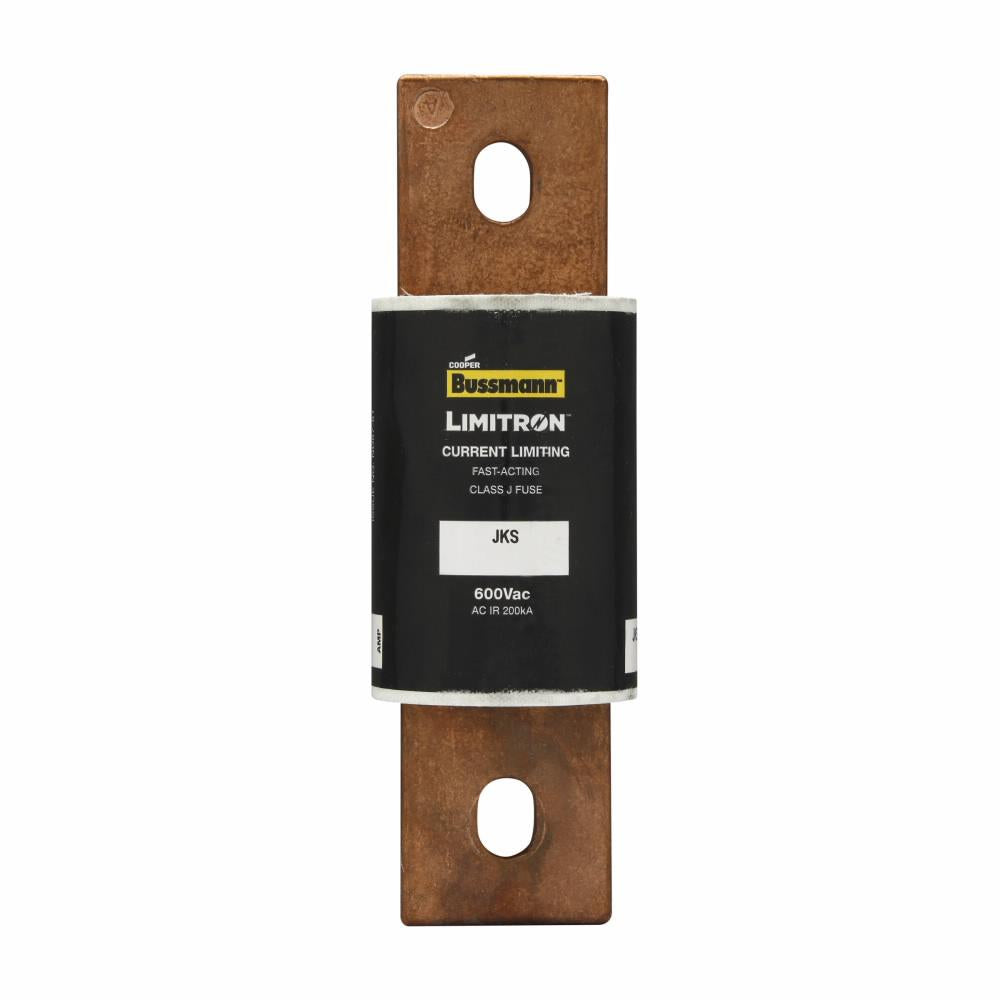

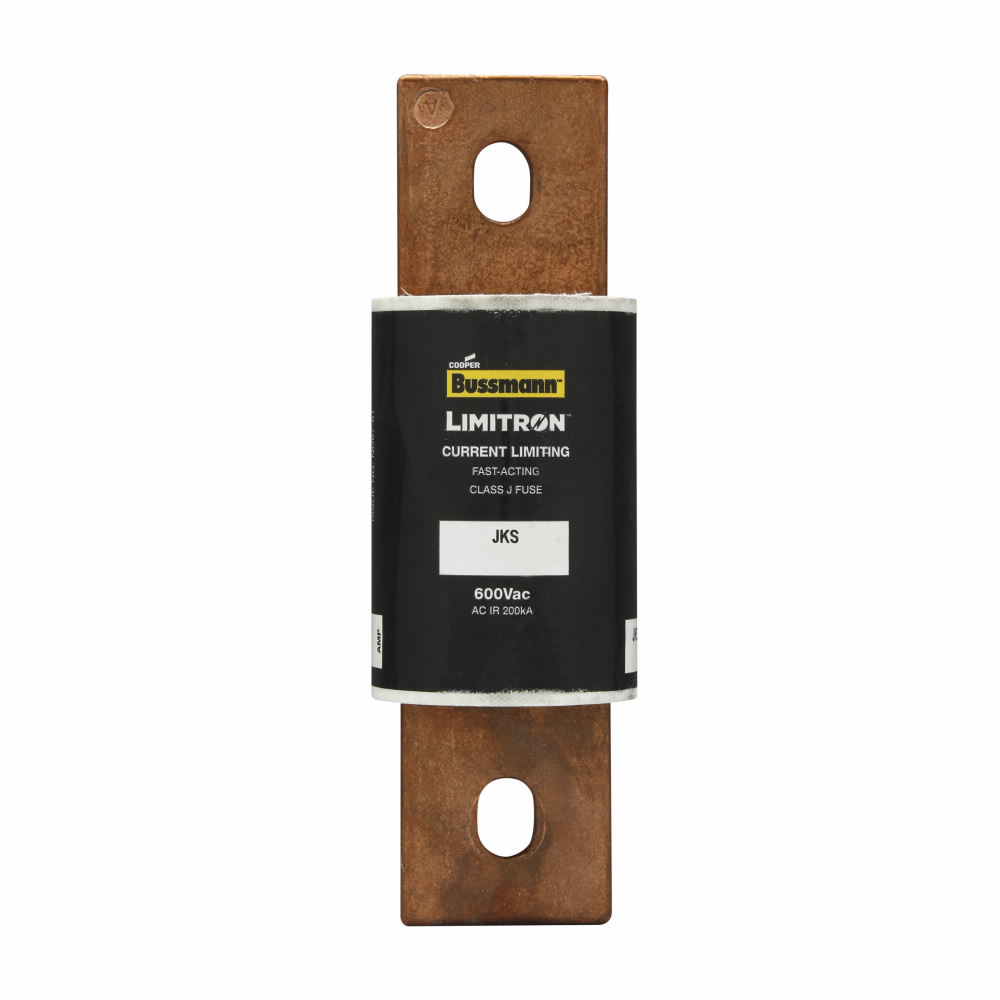

Bussmann JKS-500 500 Amp 600 VAC Class J Fast Acting Fuse

Product Description

The Bussmann JKS-500 is a 500 Amp Class J fast acting fuse designed for power panelboards and machinery disconnects. This fuse operates at a voltage of 600 VAC and features a bolted blade end connection. It plays a crucial role in protecting electrical circuits from overloads and short circuits.

• Rated for 500 Amps and 600 Volts
• High interrupt rating of 200 kAIC
• Single element design with a cartridge body

Product Highlights

This fuse is essential in managing current limits and preventing damage to electrical systems during fault conditions.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage Rating: 500 Amp
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Body Size: 2-1/2 inches Diameter x 8 inches Length
• Element: Single
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Bolted Blade End
• Class: J
• Type: Current Limiting, Fast Acting
