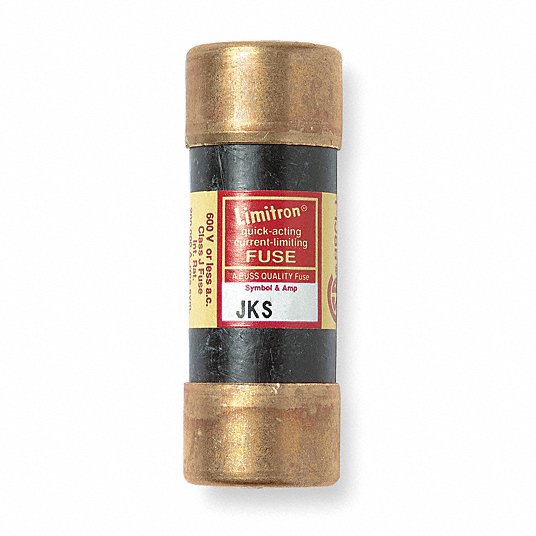

Bussmann JKS-45 Jks-45 Fuse 45 A

Product Description

The BUSSMANN JKS-45 is a Class J, fast-acting, current limiting fuse with a 45 A amperage rating and a rejection style. It has an interrupting rating of 200kA at 600Vac. It provides overcurrent protection of an electrical circuit and responds rapidly to changes in current to protect current-sensitive equipment.

• Fast-acting
• Current limiting fuse
• Rejection style fuse
• Interrupting rating of 200kA at 600Vac

Product Highlights

The BUSSMANN JKS-45 fuse is a fast-acting fuse with a cylindrical body, 45 A, and 600 V AC, designed for current protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JKS-45
• Country of Origin: U.S.A

Technical Specifications

• Type: Fuse
• Class: Class J
• Element: Single
• Standard: CE Marked;RoHS Compliant
• Connection: Ferrule end x ferrule end
• Application: Ind Facilities -N- Factories - Facility: Safety and Security Systems
• Manufacturer: BUSSMANN
• Voltage Rating: 600 V
• Amperage Rating: 45 A
• Interrupt Rating: 200 kAIC at 600 Vac
• Special Features: Indicating
• Product Name: Eaton Bussmann series JKS fuse
• Catalog Number: JKS-45
• UPC: 051712630450
• Product Length/Depth: 2.38 in
• Product Height: 1 in
• Product Width: 1 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Number of elements: 1
• Packaging type: Standard
• Fuse indicator: Non-indicating
• AC Adapter Current: 45 Amps
• Voltage: 600 Volts
• Material: Copper
• Maximum Current: 45 Amps
• Mounting Type: Through-Hole Mount
• Material Type: Copper
• Bulb Voltage: 600 volts
• Series: JKS
• Manufacturer Part Number: JKS-45
• AC Voltage Rating: 600 V
• Body Material: Melamine
• Compatible Fuse Block Series: CH60J; JM600; JT600; JTN600
• Current Rating: 45
• Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: J
• Interrupt Rating - AC: 200 kA
• Overall Diameter: 1-1/16 in
• Overall Length: 2-3/8 in
• Speed: Fast-Acting
• Standards: CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
• Visual Indication: Non-Indicating
• UNSPSC: 39121606
