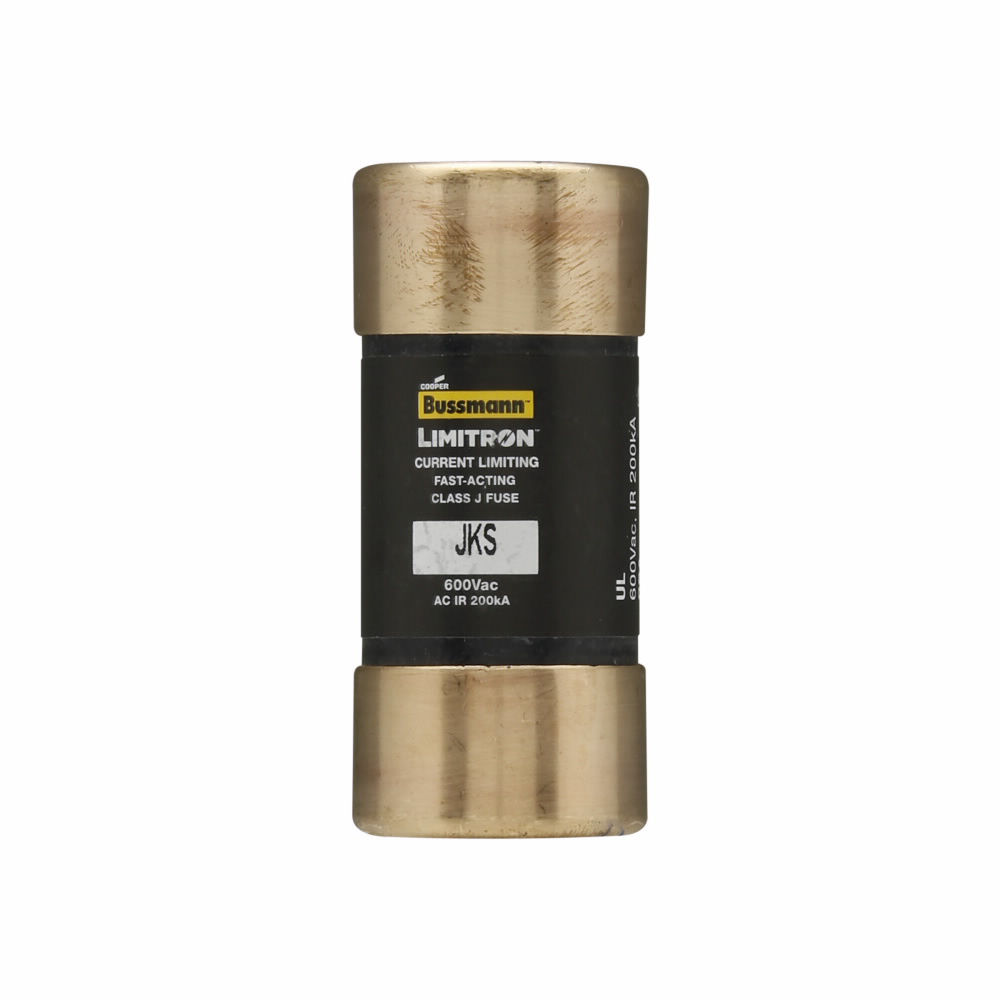

Bussmann JKS-40 Class J Limitron Fast Acting Fuse 40A 600V

Product Description

The Bussmann JKS-40 Class J Limitron Fast Acting Fuse is designed for use in power panelboards and machinery disconnects. With a current rating of forty amperes, this fuse offers fast-acting protection. It also features a non-indicating design with ferrule ends for easy installation. The fuse can handle an interrupting current of two hundred kiloamperes at six hundred volts AC.

• Type: Fast Acting and Current Limiting
• Voltage Rating: Six hundred volts AC
• Applications: Power panelboards, machinery disconnects

Product Highlights

This fuse is ideal for ensuring safety in various electrical applications. It follows industry standards, including CE, CSA C22.2, and UL 248-8.

Product Information

Standard Information

• Brand: Bussmann
• MPN: JKS-40

Technical Specifications

• Diameter: One point zero six inches
• Length: Two point thirty-eight inches
• Element: Single
• End Type: Ferrule
• Weight: Zero point eighteen pounds
• Standard: CE Marked, RoHS Compliant
• Interrupt Rating: Two hundred kAIC at six hundred volts AC
• Applications: Ind Facilities, Factories, Safety and Security Systems
