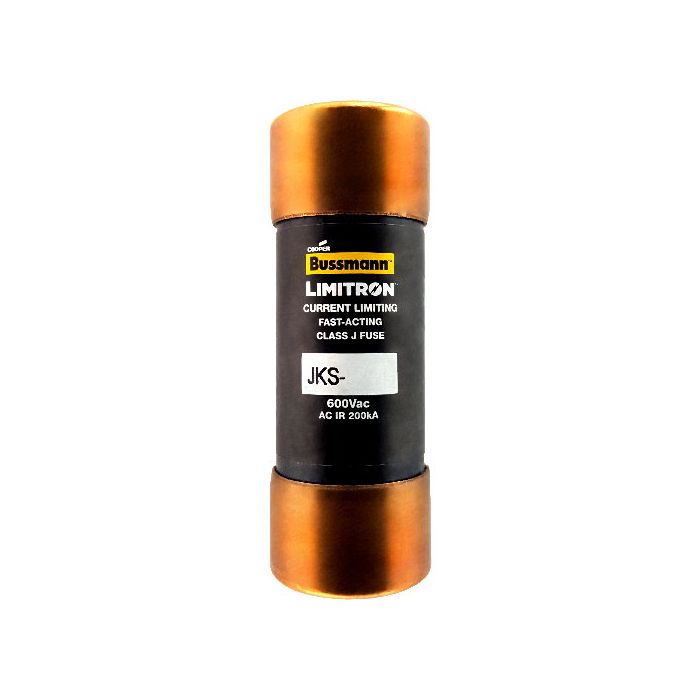

EATON Bussmann JKS-30 Limitron Fast Acting Fuse Class J
EATON Bussmann JKS-30 Limitron Fast Acting Fuse Class J

Bussmann JKS-30 Limitron Fast Acting Fuse Class J

EATON
Brand: EATON
SKU: JKS-30
Availability: In Stock

Ships same day if ordered by 12 pm
$102.35
$102.35
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BUSSMANN JKS-30 is a Limitron series, fast-acting, current limiting Class J fuse. With an interrupting rating of 200kA at 600Vac, this fuse is ideal for critical industrial or commercial applications that have specific current limitation requirements.

  • Fast-acting
  • Current limiting fuse
  • Rejection style fuse
  • Interrupting rating of 200kA at 600Vac

Product Highlights

The Bussmann JKS-30 fuse provides advanced protection with current limitation for critical applications.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: JKS-30
  • Country of Origin: China
Technical Specifications
Product Name
Eaton Bussmann series JKS fuse
Catalog Number
JKS-30
UPC
051712630306
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Compliances
RoHS Compliant
Product Type
Fuse
Amperage Rating
30 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Amps
30
Volts AC
600
Fuse Class
UL Class J
Acting Type
Quick Acting
Current Limiting
Yes
Physical Size
0.81" x 2.25"
AC Voltage Rating
600 V
Interrupting Rating
200,000 AIC RMS @ 600VAC
UL Listed
Std. 248-8, Class J, Guide JDDZ, File E4273
CSA Certified
C22.2 No. 248.8, Class 1422-02, File 53787
DC Voltage Rating
200
Ampere
30 A
Speed
Fast Blow
Shape
Cartridge Fuses
Approvals
CE, UL, CSA
Substitute parts
Littelfuse JLS, Mersen A4J
Dimensions
0.81" Dia x 2.25" L (20.57x57.15mm)
Brand
BUSSMANN
MPN
JKS-30
Condition
New
Series
JKS
Body Material
Melamine
Compatible Fuse Block Series
CH30J; JM600; JP600; JT600; JTN600
Current Rating
30
Element
Single
Fuse Block Style
Non-Rejection
Fuse Body Style
Cylindrical
Fuse Class or Type
J
Interrupt Rating - AC
200 kA
Overall Diameter
13/16 in
Overall Length
2-1/4 in
Fast-Acting
Fast-Acting
Standards
CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
Visual Indication
Non-Indicating
UNSPSC
39121606
