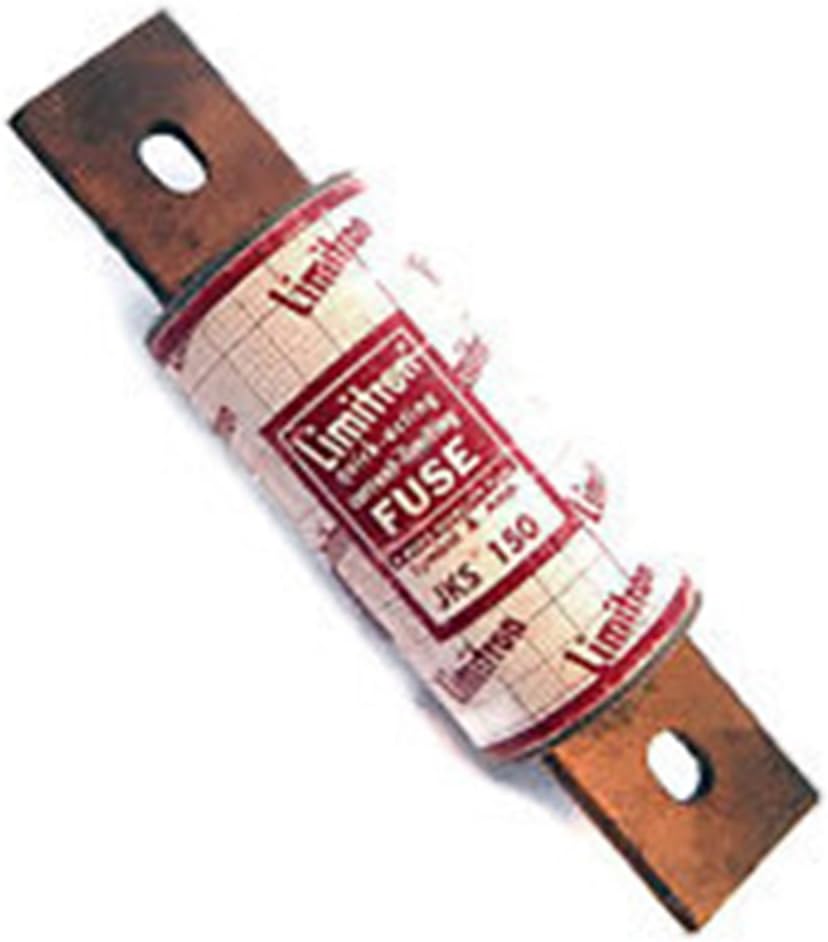

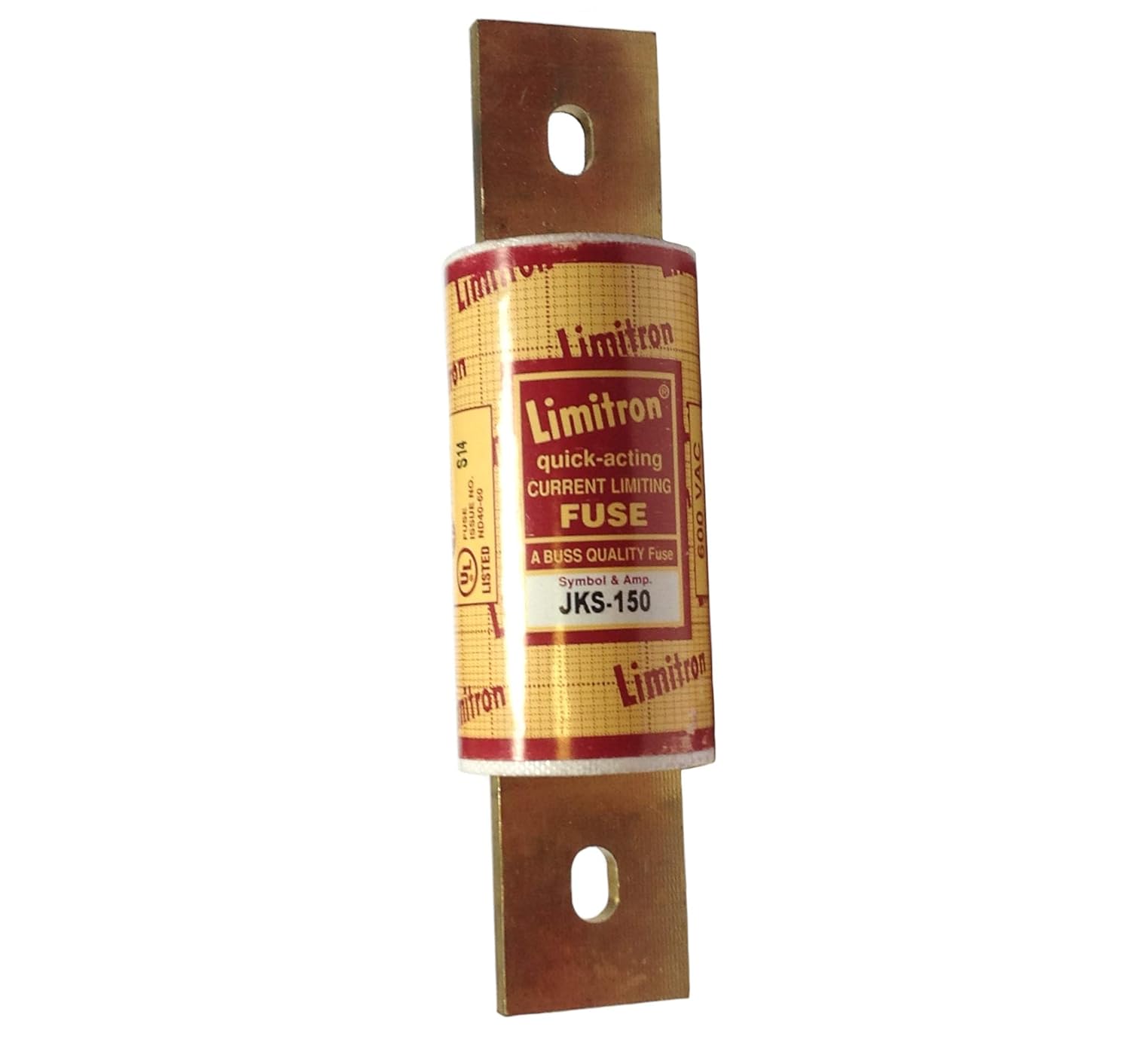

Bussmann JKS-150 Limitron Fast Acting Fuse Class J

Product Description

The Bussmann JKS-150 Limitron Fast Acting Fuse Class J is designed to provide component short circuit protection. It has a 200 kAIC interrupt rating and is well suited for lighting and heating circuits and other non-inductive loads. This fuse is rated for 600V and 150A.

• Fast Acting Fuse
• Class J
• Provides component short circuit protection in compliance with NEC 110-10

Product Highlights

The Bussmann JKS-150 is a Limitron fast-acting fuse with a Class J rating, ideal for protecting circuits from short circuits and overcurrents.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JKS-150
• Country of Origin: MX

Technical Specifications

• Brand: Bussmann
• Item Model Number: JKS-150
• MPN: JKS-150
• Voltage: 600 Volts
• Material: Copper
• Mounting Type: Holder
• Amperage Capacity: 150 Amps
• AC Adapter Current: 150 Amps
• Batteries Included?: No
• Batteries Required?: No
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Series: JKS
• Terminal Type: Bolted Blade End
• Type: Current Limiting Fast Acting
• Amperage Rating: 150 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Class: J
• Body Type: Cartridge
• Current Rating: 150A
• Fuse Speed: F
• Voltage Rating AC: 600V ac
• ETIM Class: Low Voltage HRC fuse
• ETIM Group: Circuit breakers and fuses
• Insulated metal gripping lugs (IMGL): No
• Rated current: 150A
• Rated switching capacity: 200kA
• Rated voltage: 600V
• Type of fuse status indicator: None
• Voltage Type: AC
