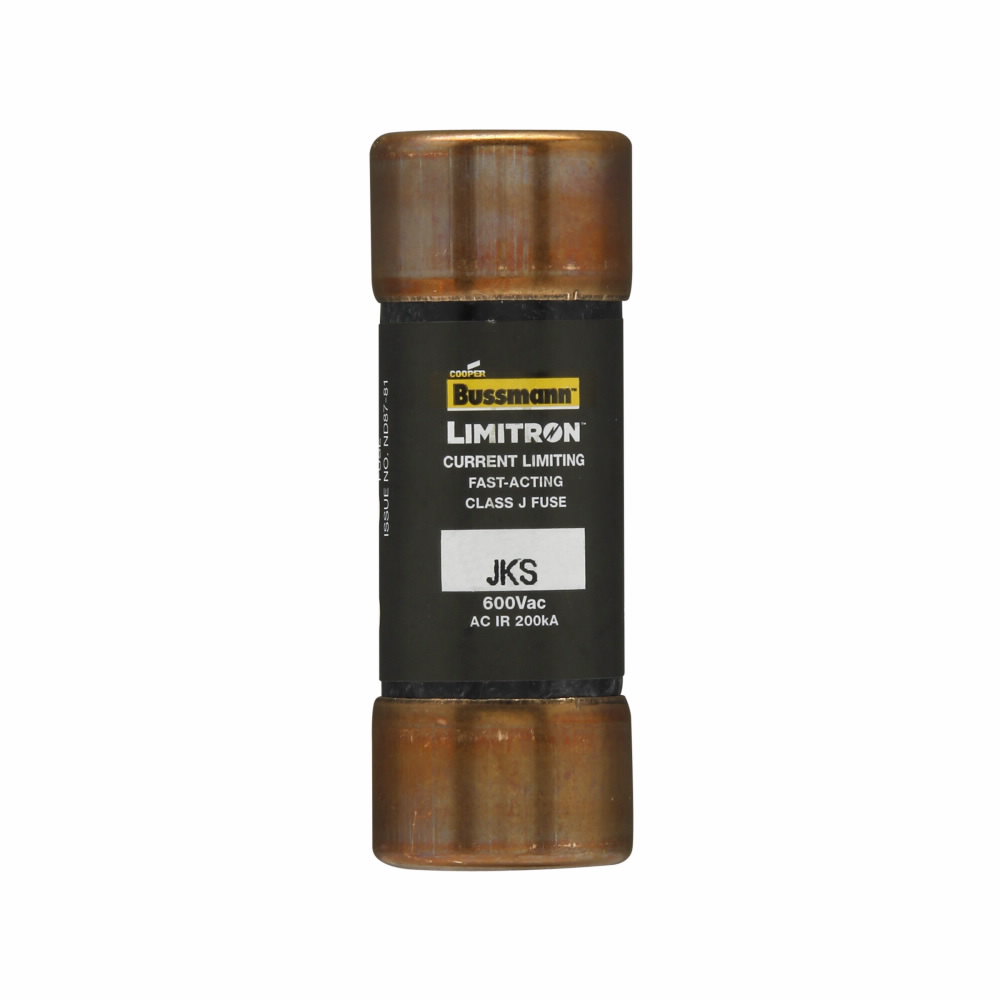

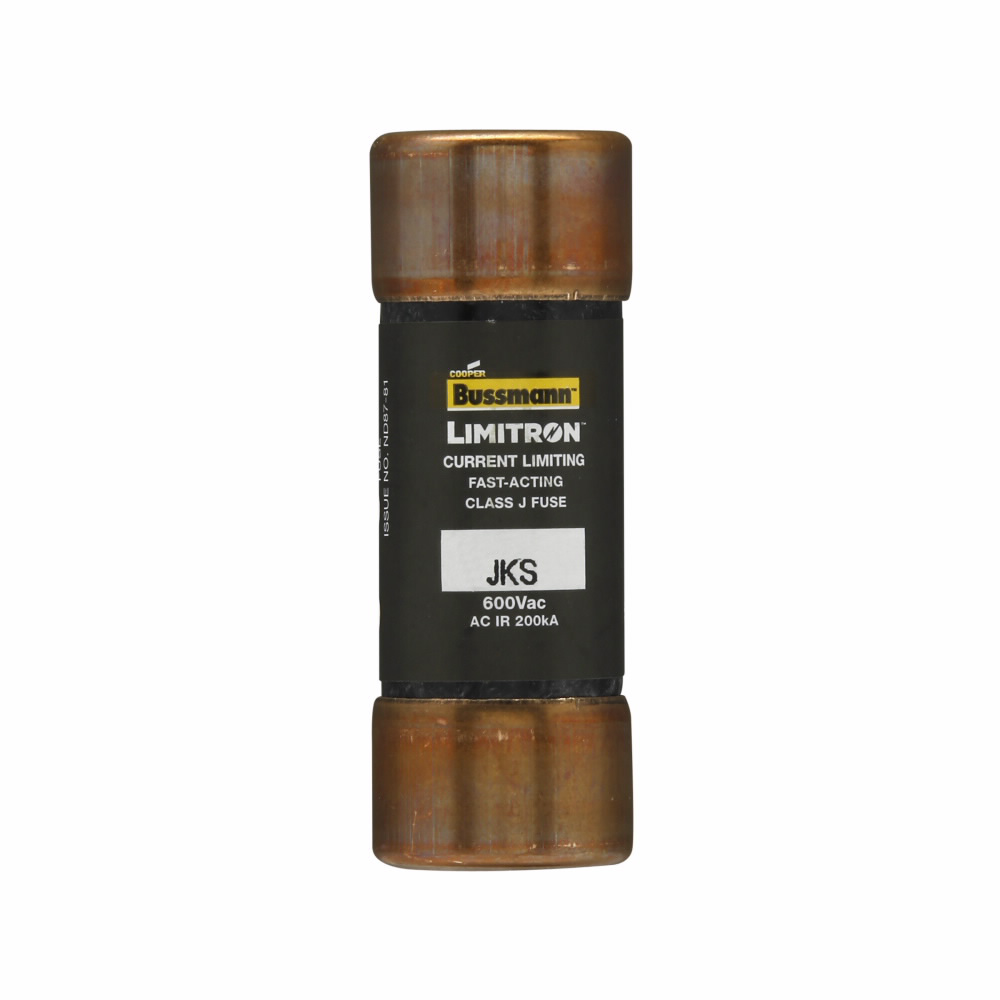

Bussmann JKS-10 Class J Limitron Fast Acting Fuse 10 A 600 Volt

Product Description

The Bussmann Series JKS-10 Class J Limitron Fast Acting Fuse is designed for use in power panelboards and machinery disconnects. This fuse is rated for ten amperes and has a voltage rating of six hundred volts. It features a ferrule end connection and operates with an interrupting rating of two hundred kiloamperes at six hundred volts AC.

• 10 Amp fast-acting fuse
• Ferrule end connection type
• Interrupting rating of 200 kAIC at 600 Vac

Product Highlights

Ideal for protecting electrical circuits in various industrial applications.

Product Information

Standard Information

• Manufacturer: Bussmann
• Catalog Number: JKS-10

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 10 Amp
• Diameter: 0.81 Inch
• Length: 2.25 Inches
• Application: Power panelboards, machinery disconnects
• Connection: Ferrule end x ferrule end
• Class: J
• Interrupt Rating: 200 kAIC
