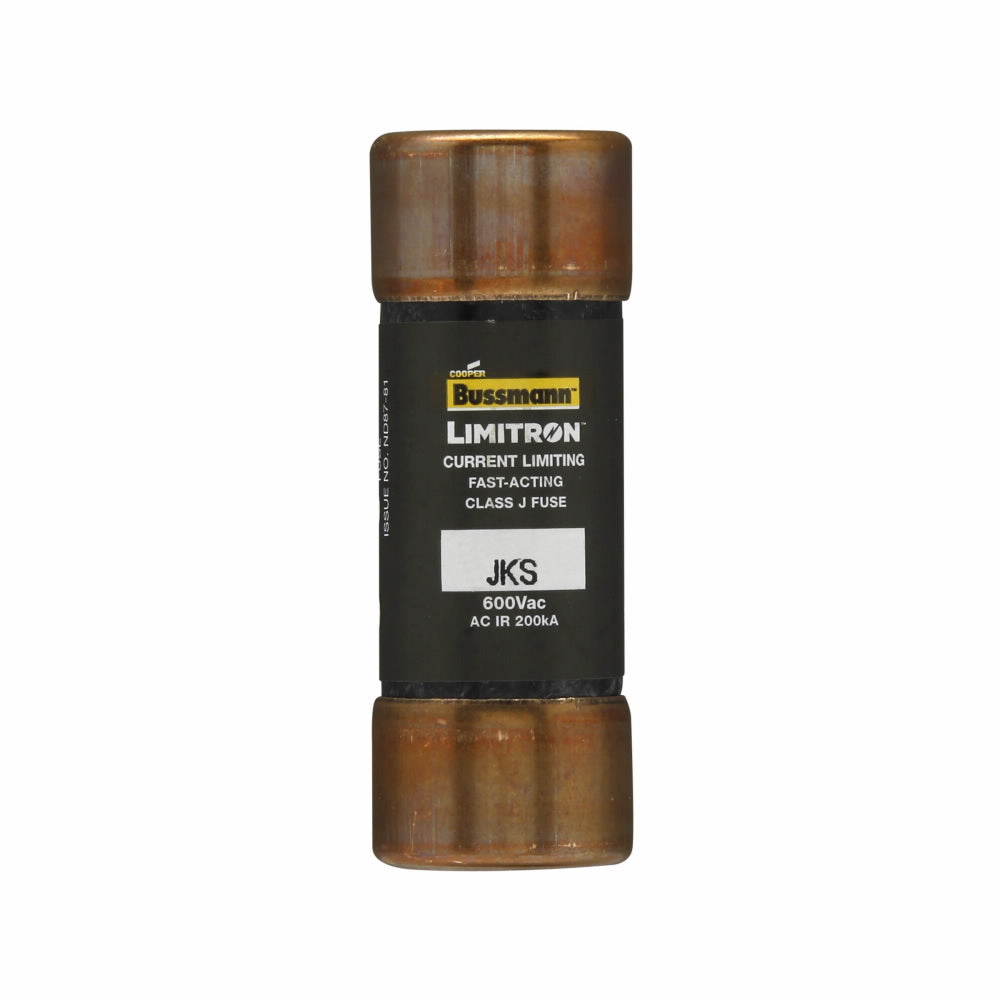

Bussmann JKS-1 Fuse 1 Amp

Product Description

The Bussmann JKS-1 is a Class J, fast-acting, current limiting fuse. This rejection style fuse has an interrupting rating of 200kA at 600Vac. It is suitable for use in industrial facilities, factories, and safety and security systems.

• Fast-acting
• Current limiting fuse
• Rejection style fuse

Product Highlights

The Bussmann JKS-1 fuse provides reliable and quick circuit protection in various applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JKS-1

Technical Specifications

• Class: Class J
• Element: Single
• Standard: CSA,E2186,UL
• Connection: Ferrule end x ferrule end
• Application: Ind Facilities -N- Factories - Facility: Safety and Security Systems
• Manufacturer: BUSSMANN
• Voltage Rating: 600 V
• Amperage Rating: 1 A
• Interrupt Rating: 200 kAIC at 600 Vac
• Special Features: Non-indicating
• Product Name: Eaton Bussmann series JKS fuse
• Catalog Number: JKS-1
• UPC: 051712630016
• Product Length/Depth: 2.25 in
• Product Height: 0.81 in
• Product Width: 0.81 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Number of elements: 1
• Fuse indicator: Non-indicating
• AC Voltage Rating: 600
• Physical Size: 0.81" x 2.25"
• UL Listed: Std. 248-8, Class J, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.8, Class 1422-02, File 53787
• Amperage: 1 Amp
• Fuse Class: J
• Voltage: 600V
• Fuse Speed: Quick Acting
• Current Limiting: Yes
• Applications: Power Panelboards, Machinery Disconnects
• Connection Type: Ferrule
• End Type: Ferrule
• TC Connection: Ferrule End X Ferrule End
• Brand: Eaton
• Sub Brand: Limitron
• Primary brand: Eaton
• Secondary brand: Cooper Bussmann
• Main function: Fuse
• Product series / family name: LV branch circuit fuses
• Sub-range name: Limitron fuse cartridges
• Functions: Low-Voltage (LV) fast-acting current-limiting fuse cartridge
• Design: Class J
• Rated current: 1A
• Rated voltage (AC): 600Vac
• Short circuit breaking rating: 200kA (RMS symmetrical)
• Technical compatibility with: power panelboards machinery disconnects
• Order code / Manufacturer SKU: JKS-1
• Manufacturer product status: Commercialized
• UPC code: 051712630016
• Compliant with standard(s): UL Listed Std. 248-8 Class J Guide JDDZ File E4273 CSA Certified Class 1422-02 File 53787 CE
