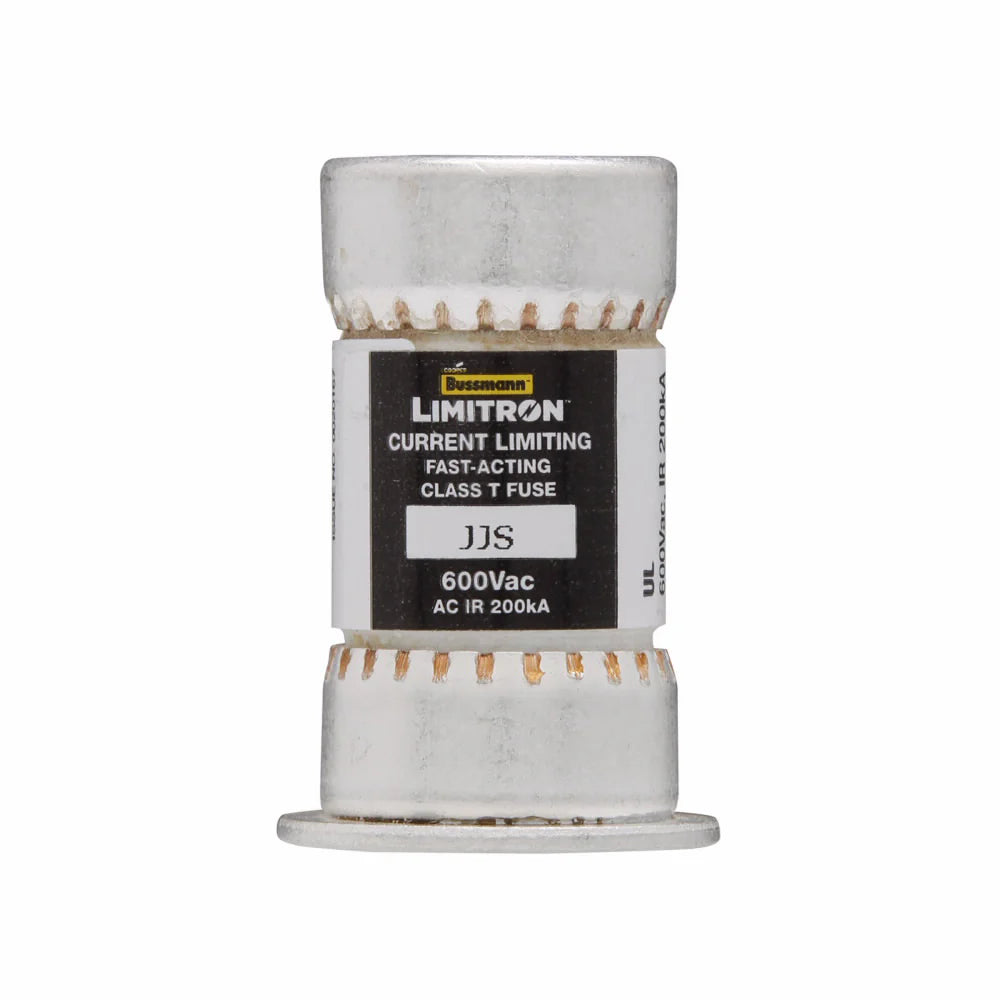

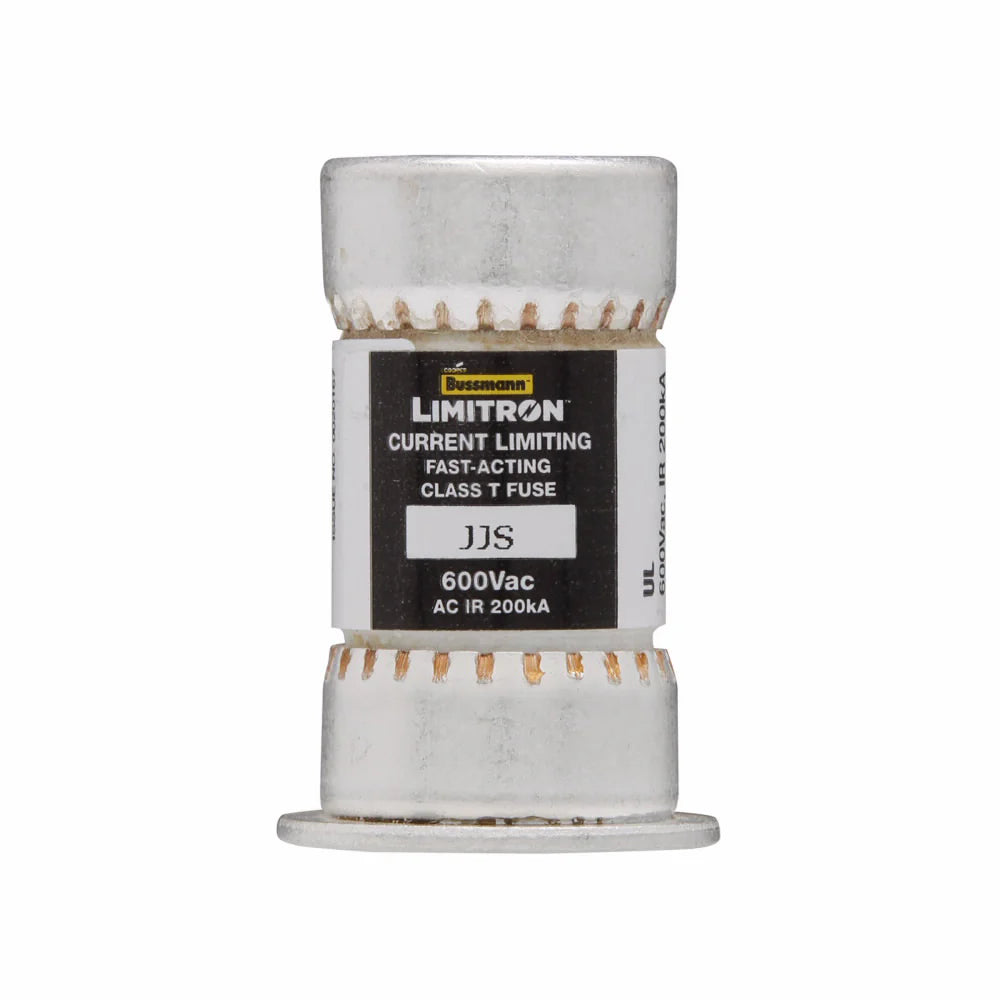

Bussmann JJS-90 Class T Tron Fast Acting Fuse Power 90 A

Product Description

The Bussmann JJS-90 Class T Tron fast-acting fuse is designed for effective current-limiting in electrical systems. With an amperage rating of ninety amps, this fuse is suitable for use in various applications, including motor control and protection for variable frequency drives. It features bolted blade end connections and is built to handle an interrupt rating of two hundred kAIC at six hundred volts. The compact size and non-indicating design make it a reliable choice for protecting sensitive equipment.

• Current-limiting design for enhanced safety
• Bolted blade end connection type
• Rated for applications up to 600 volts

Product Highlights

This fuse is important for protecting large apartment complexes and multi-family meter stacks.

Product Information

Standard Information

• Brand: Bussmann
• MPN: JJS-90

Technical Specifications

• Type: Current limiting, fast acting
• Voltage: 600 volts
• Amperage: 90 amps
• Diameter: 0.75 inches
• Length: 2.95 inches
• Weight: 0.11 lbs
• Interrupt Rating: 200 kAIC
• Connection Type: Bolted blade end x bolted blade end
