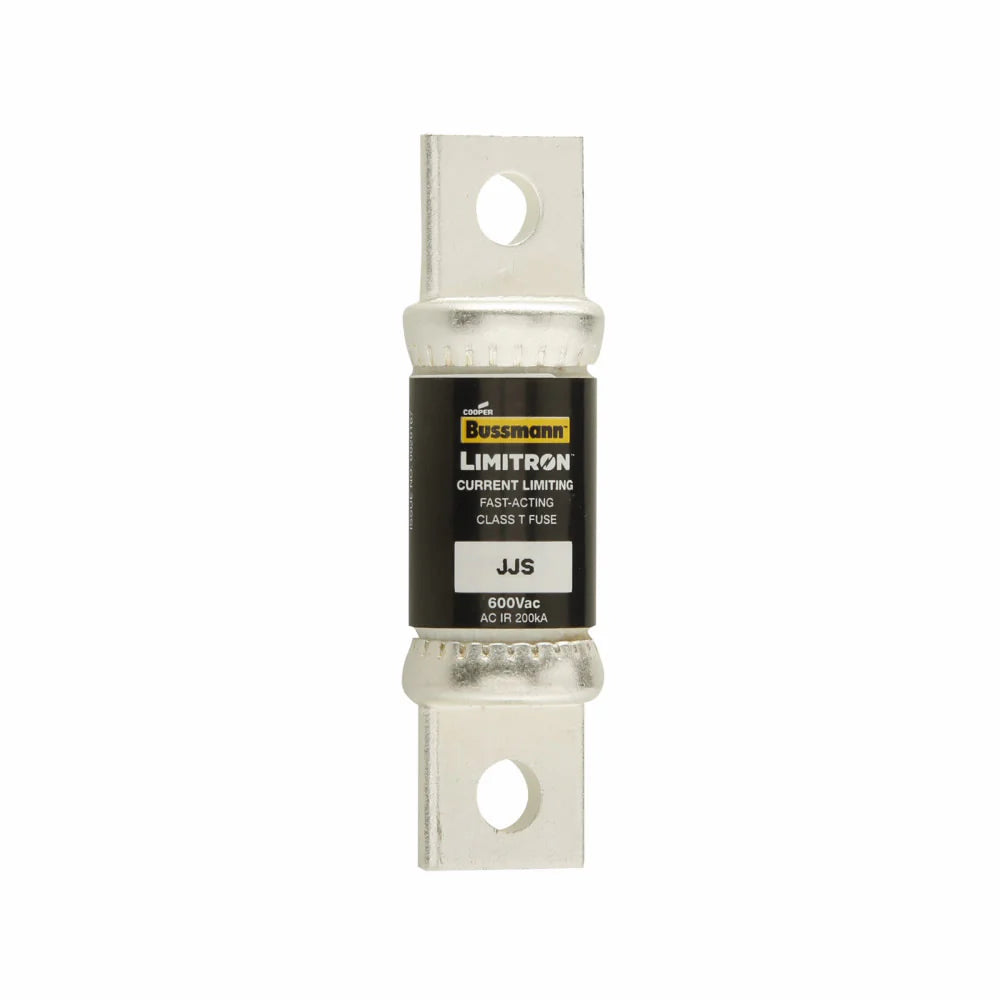

Bussmann JJS-70 Bussmann Series JJS-70 Class T Tron Fast Acting Fuse

Product Description

The Bussmann Series JJS-70 Class T Tron Fast Acting Fuse, with MPN JJS-70, is designed to provide reliable current limiting for electrical systems. It features a 70 Amp rating and is built to protect Variable Frequency Drives (VFDs) in various applications such as large apartment complexes and multi-family meter stacks.

• Current limiting capability for enhanced safety
• Compact design for easy installation
• Rated for 200 kAIC at 600 Volt

Product Highlights

This fuse offers essential protection in power distribution settings. Its bolted blade ends ensure stable connections, minimizing the risk of failure.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage Rating: 70 Amp
• Interrupt Rating: 200 kAIC
• Dimensions: 0.75 Inch Diameter x 2.95 Inch Length
• End Type: Bolted blade end
• Type: Current limiting, very fast acting
• Applications: Large apartment complexes, multi-family meter stacks, VFD line protection
• Special Features: Non-indicating
