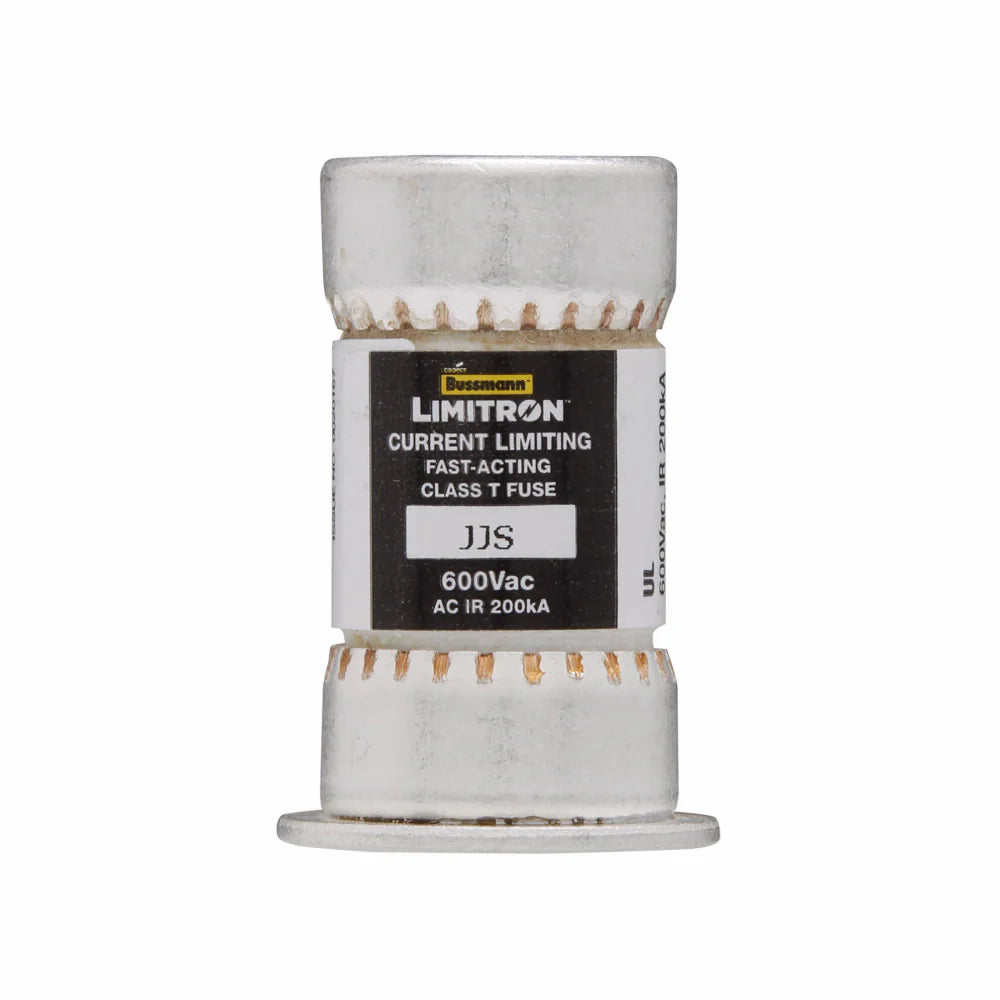

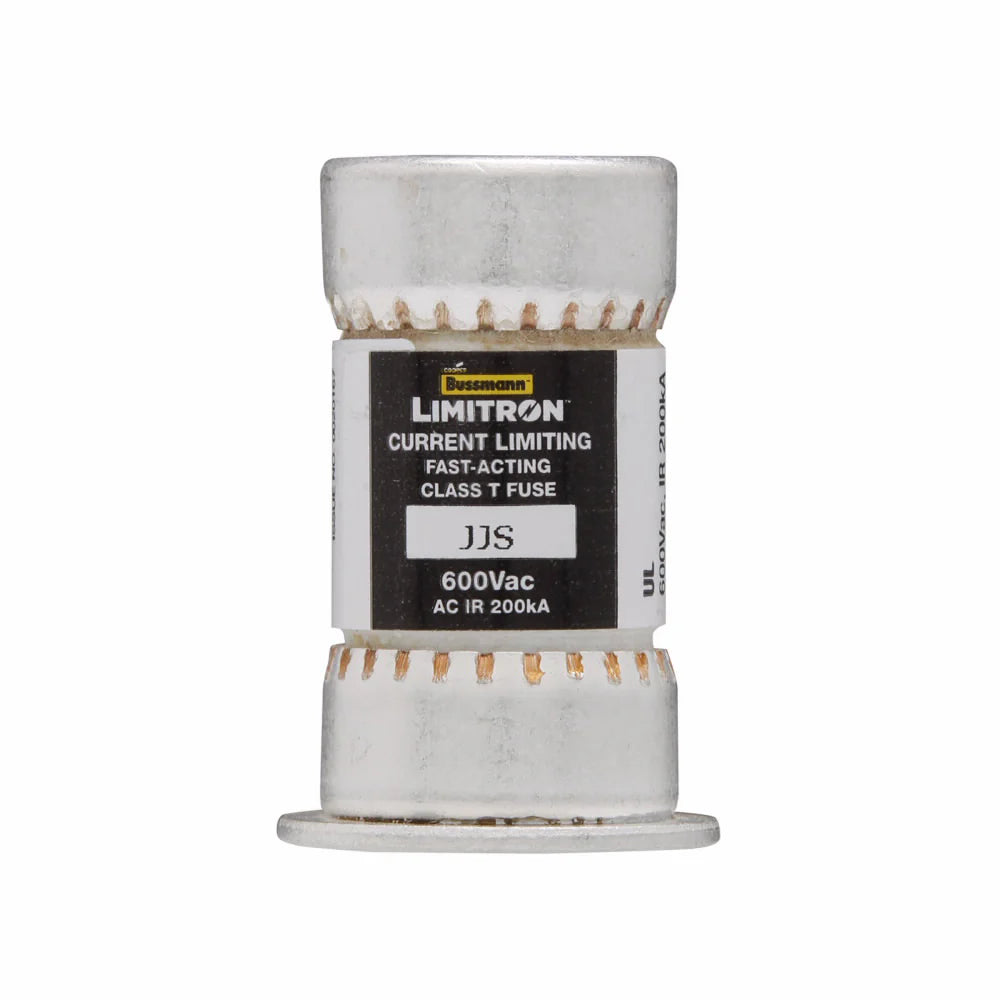

Bussmann JJS-45 Class T Tron Fast Acting Fuse 45 Amp

Product Description

The Bussmann JJS-45 is a Class T fast acting fuse designed for current-limiting applications. This fuse has a compact design and provides effective protection for Variable Frequency Drives (VFD). The JJS-45 operates at a nominal current of forty-five amps and is intended for use in systems with a voltage rating up to six hundred volts.

• Current-limiting and non-indicating design
• Ferrule end connections for easy installation
• Interrupt rating of two hundred kAIC at six hundred volts

Product Highlights

The Bussmann JJS-45 fuse is suitable for large apartment complexes and multi-family meter stacks. Designed for VFD line protection, it efficiently safeguards circuits from overloads and shorts, making it a reliable choice in electrical distribution systems.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Type: Current Limiting, Very Fast Acting
• Class: Class T
• Voltage: 600 Volt
• Amperage: 45 Amp
• Diameter: 1 Inch
• Length: 1.56 Inch
• Height: 0.81 Inch
• Weight: 0.5 lb
• End Type: Ferrule
• Interrupt Rating: 200 kAIC
• Applications: Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection
• Standard Compliance: CE, CSA C22.2, UL 248-15
