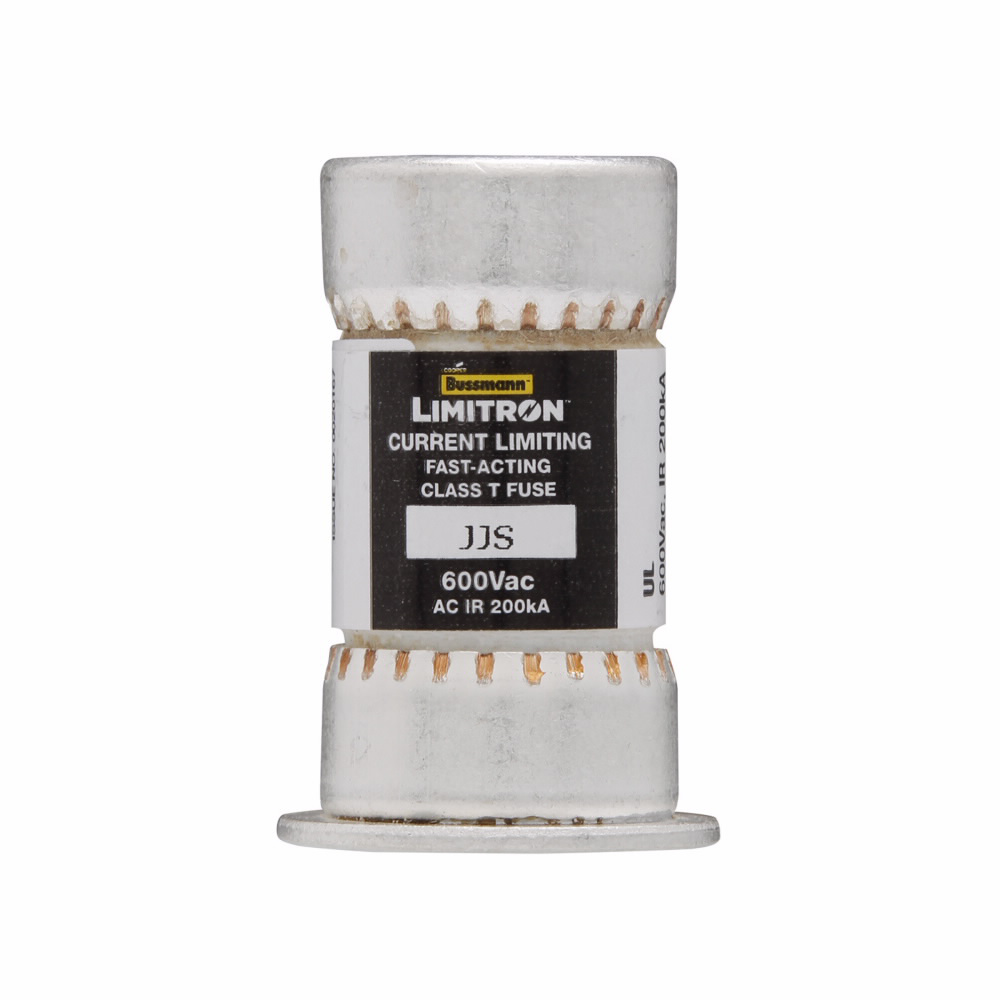

Bussmann JJS-40 Class T Tron Fast Acting Fuse

Product Description

The Bussmann JJS-40 Class T Tron Fast Acting Fuse is a reliable fuse designed for current-limiting applications. It has a small footprint and provides effective protection for variable frequency drives, rated at forty amperes. This fuse features a ferrule end design and operates at a voltage rating of six hundred volts with an interrupt rating of two hundred kAIC.

• Current-limiting design for enhanced safety
• Rated for applications including large apartment complexes and VFD line protection
• Standard compliance with CE and UL ratings

Product Highlights

This fuse is ideal for high-demand electrical environments, providing quick response times to prevent damage to electrical systems.

Product Information

Standard Information

• Brand: Bussmann
• MPN: JJS-40

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage Rating: 40 Amp
• Diameter: 1 Inch
• Length: 1.56 Inches
• Height: 0.81 Inch
• Weight: 0.5 lb
• End Type: Ferrule
• Standard Compliance: CE, CSA C22.2, UL 248-15
