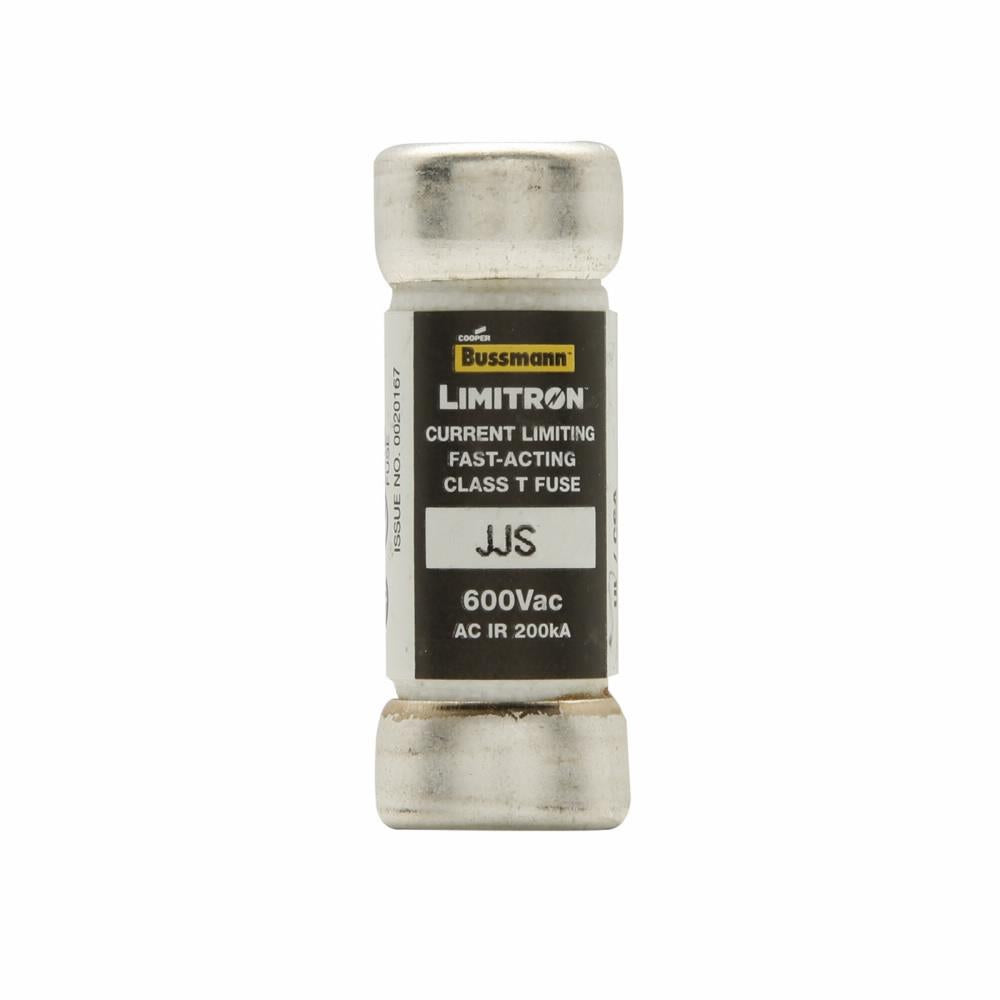

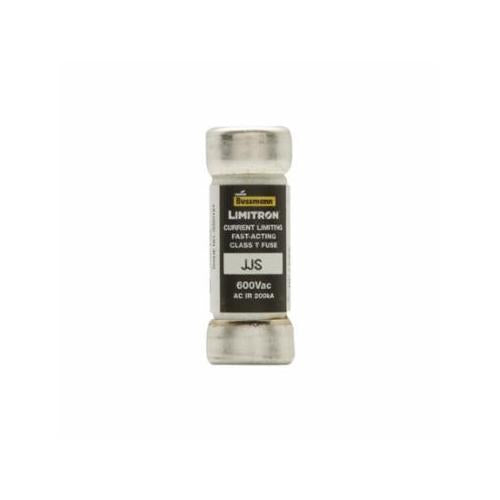

Bussmann JJS-3 Fast Acting Current Limiting Fuse 3 A 600 VAC 200 kA Interrupt Class T

Product Description

The Bussmann JJS-3 is a fast-acting current limiting fuse designed for optimal protection in electrical circuits. It provides a high level of current limitation to prevent equipment damage during short-circuit events. With a rating of 200 kA, this fuse complies with NEC Section 110.9 for large capacity systems.

• Fast acting and reliable for critical applications.
• Compact design with cylindrical body for efficient space use.
• Rated for 3 A and 600 VAC to suit various circuits.

Product Highlights

This fuse offers effective current limitation, ensuring safety and protection in electrical systems.

Product Information

Standard Information

• Series: JJS
• Manufacturer: Eaton

Technical Specifications

• Body Size: 0.56 inches diameter x 1.5 inches length
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Rejection/Non-Rejection: Non-Rejection
• Terminal Type: Ferrule
• Type: Fast Acting Current Limiting
• Amperage Rating: 3 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 kA
• Class: T
• Body Type: Cylindrical
