Description

Product Description

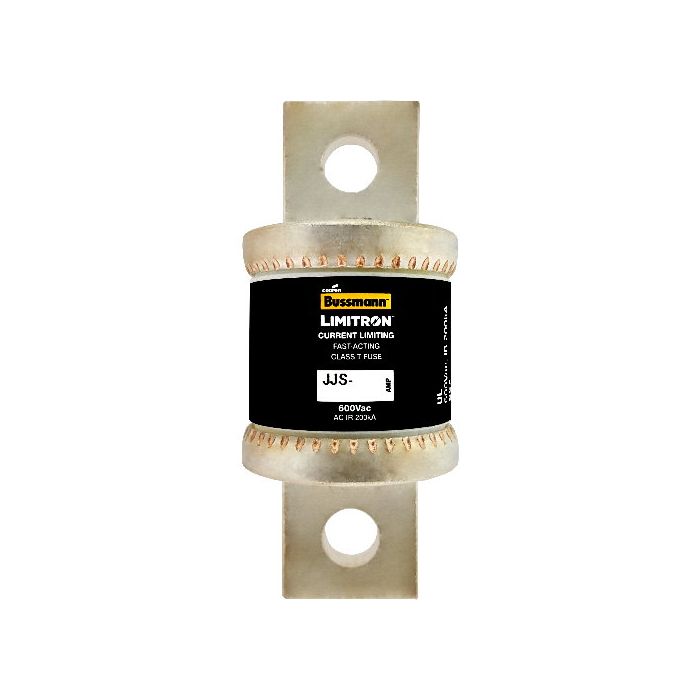

The Bussmann JJS-250 is an Eaton Bussmann series JJS fuse. This current-limiting fuse has a small footprint and provides VFD line protection. It features bolted blade end x bolted blade end connection and is non-indicating. It is suitable for critical industrial or commercial applications with specific current limitation requirements.

  • Current-limiting
  • Small footprint
  • VFD line protection
  • Non-indicating
  • Bolted blade end x bolted blade end

Product Highlights

The Bussmann JJS-250 fuse offers reliable protection in a compact size, ideal for applications needing precise current limitation.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: JJS-250
Technical Specifications
Product Name
Eaton Bussmann series JJS fuse
Catalog Number
JJS-250
UPC
051712628099
Product Length/Depth
3.63 in
Product Height
1 in
Product Width
1 in
Product Weight
0.5 lb
Compliances
CE Marked RoHS Compliant
Product Type
Fuse
Amperage Rating
250 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class T
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Quantity
1
Special features
Small footprint
Series
JJS
Mpn
JJS-250
Gtin
51712628099
Amps
250
Volts AC
600
Fuse Class
T
Acting Speed
Very Fast Acting
Current Limiting
Current Limiting
Physical Size
1" x 3.63"
AC Voltage Rating
600
Interrupting Rating
200,000 AIC RMS @ 600VAC
UL Listed
Std. 248-15, Guide JDDZ, File E4273
CSA Certified
C22.2 No. 248.15, Class 1422-02, File 53787
Ampere
250 A
Speed
Fast Blow
Shape
Cartridge Blade Fuses
Approvals
CE, UL, CSA, RoHS
Substitute parts
Littelfuse JLLS, Mersen A6T
Item weight
9.7 oz
UNSPSC Code
39120000
Application
Large apartment complexes, multi-family meter stacks, VFD line protection
Brand
Bussmann by Eaton
Current Rating
250 A
For Use With
Fuses
Manufacturer Part Number
JJS-250
Type
Fuse
Unit of Measure
EA
Maximum Amperage
250 A
Fuse Body Type
Cartridge
Number of Phases
1
Manufacturer
Bussmann
Amperage
250
Voltage
600
Voltage Type
AC
Poles
1
Frame Type
JJS
