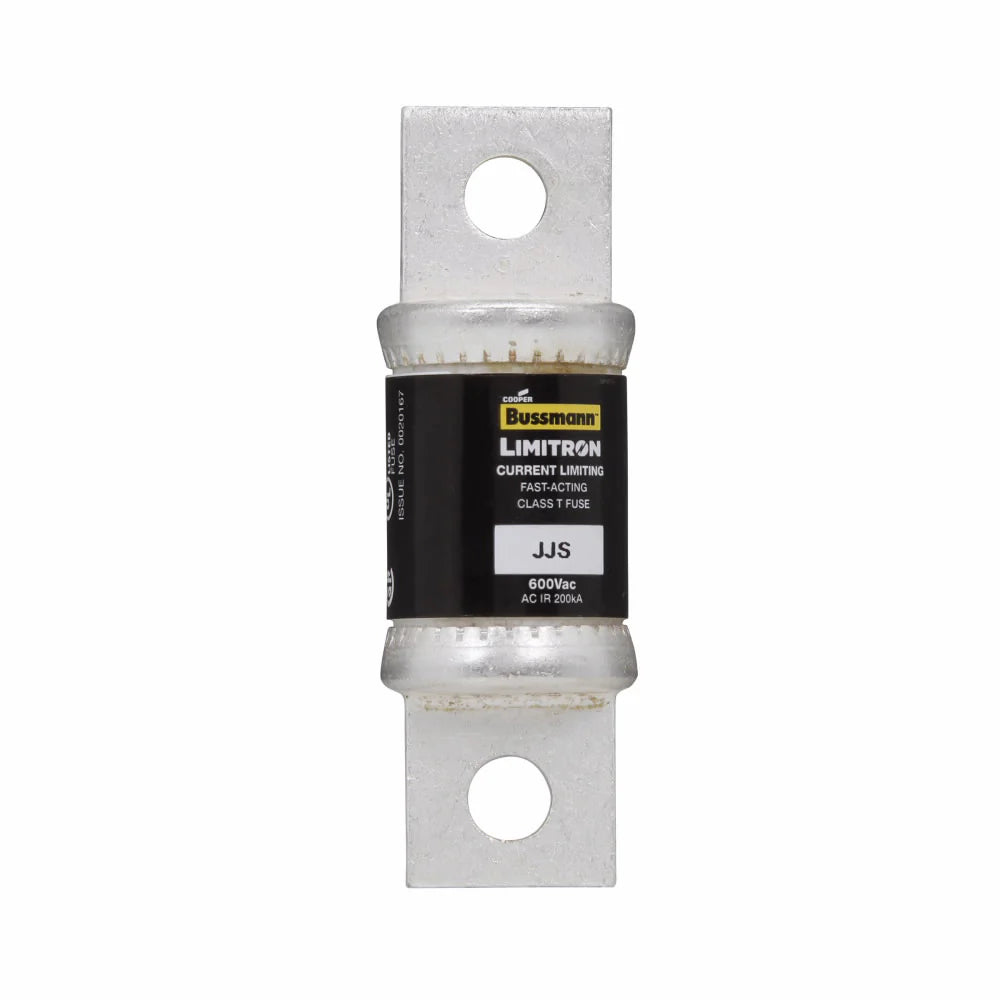

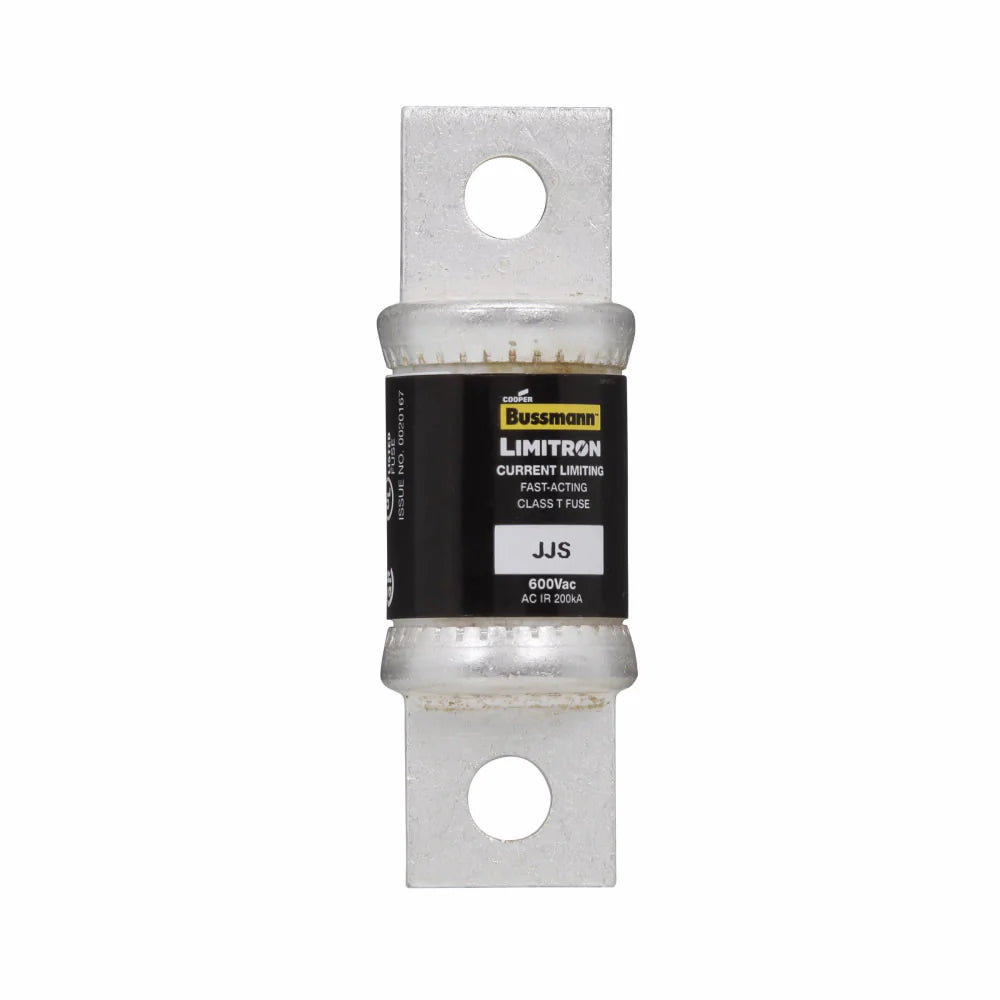

Bussmann JJS-200 Class T Tron Fast Acting Fuse 200 A

Product Description

The Bussmann JJS-200 Class T Tron Fast Acting Fuse is designed by Bussmann. This fuse is current-limiting and suitable for applications that require non-indicating protection. With a compact size and a voltage rating of six hundred volts, this fuse offers reliable performance for various electrical setups.

• Current-limiting feature for system protection
• High interrupt rating of two hundred kAIC
• Applications include large apartment complexes and VFD line protection

Product Highlights

The JJS-200 is ideal for protecting electrical circuits in demanding environments.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: JJS-200
• Size: 0.88 inches diameter x 3.25 inches length
• Type: Current limiting, very fast acting
• Voltage Rating: 600 volts
• Amperage Rating: 200 amps
• Interrupt Rating: 200 kAIC
• End Type: Blade, bolted
• Connection Type: Bolted blade end x bolted blade end
