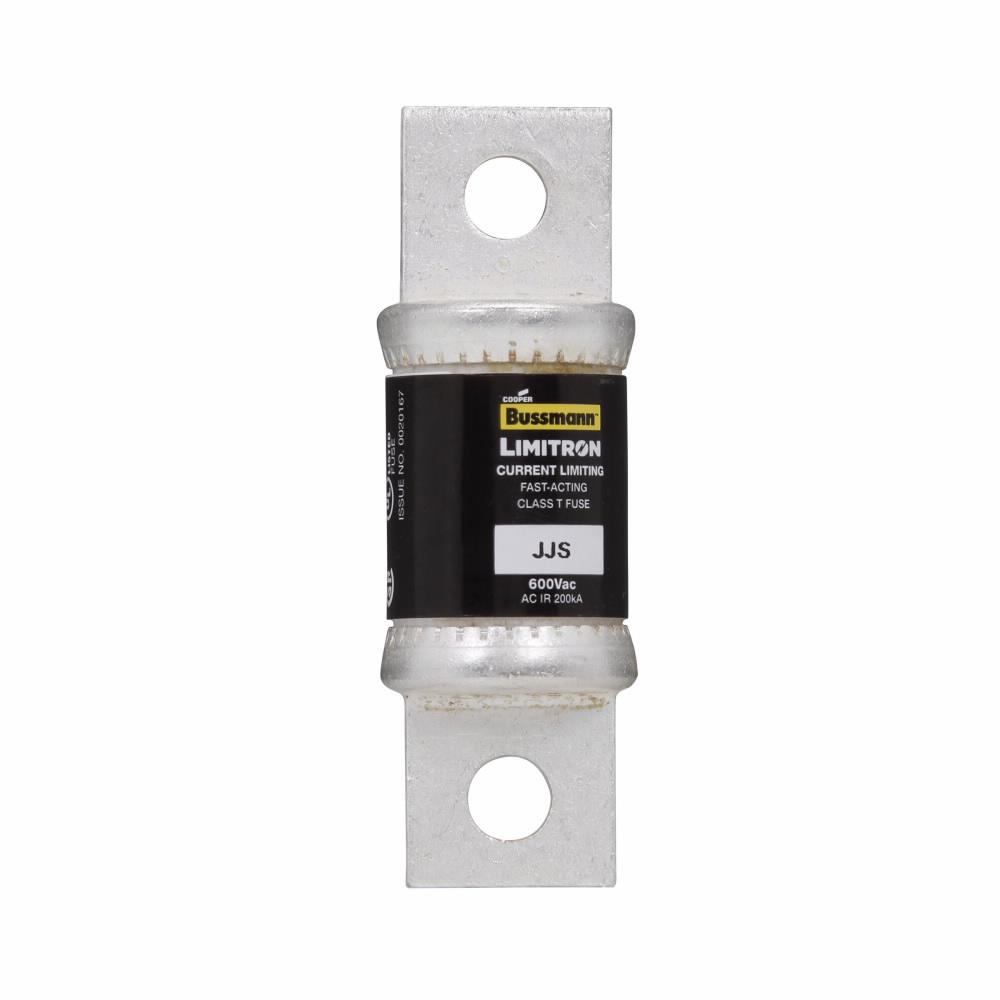

Bussmann JJS-150 Class T Tron Fast Acting Fuse 150 A

Product Description

The Bussmann Series JJS-150 Class T Tron Fast Acting Fuse is designed for current-limiting and very fast-acting applications. This fuse, with a rating of one hundred fifty amps, provides essential protection for various electrical systems. It features bolted blade ends for secure connections, and its compact size allows for easy installation in tight spaces.

• Current-limiting and very fast acting
• Rated for 150 Amps at 600 Volts
• Standard features include CE and CSA certifications

Product Highlights

This fuse protects variable frequency drives (VFD) and is ideal for large apartment complexes and multi-family meter stacks.

Product Information

Standard Information

• Catalog Number: JJS-150
• Brand: Bussmann

Technical Specifications

• Voltage: 600 Volt
• Amperage: 150 Amp
• Length: 3.25 Inch
• Diameter: 0.88 Inch
• Interrupt Rating: 200 kAIC
• End Type: Bolted blade end x bolted blade end
• Standard Compliance: CE, CSA C22.2, UL 248-15
• Applications: Large apartment complexes, multi-family meter stacks, VFD line protection
