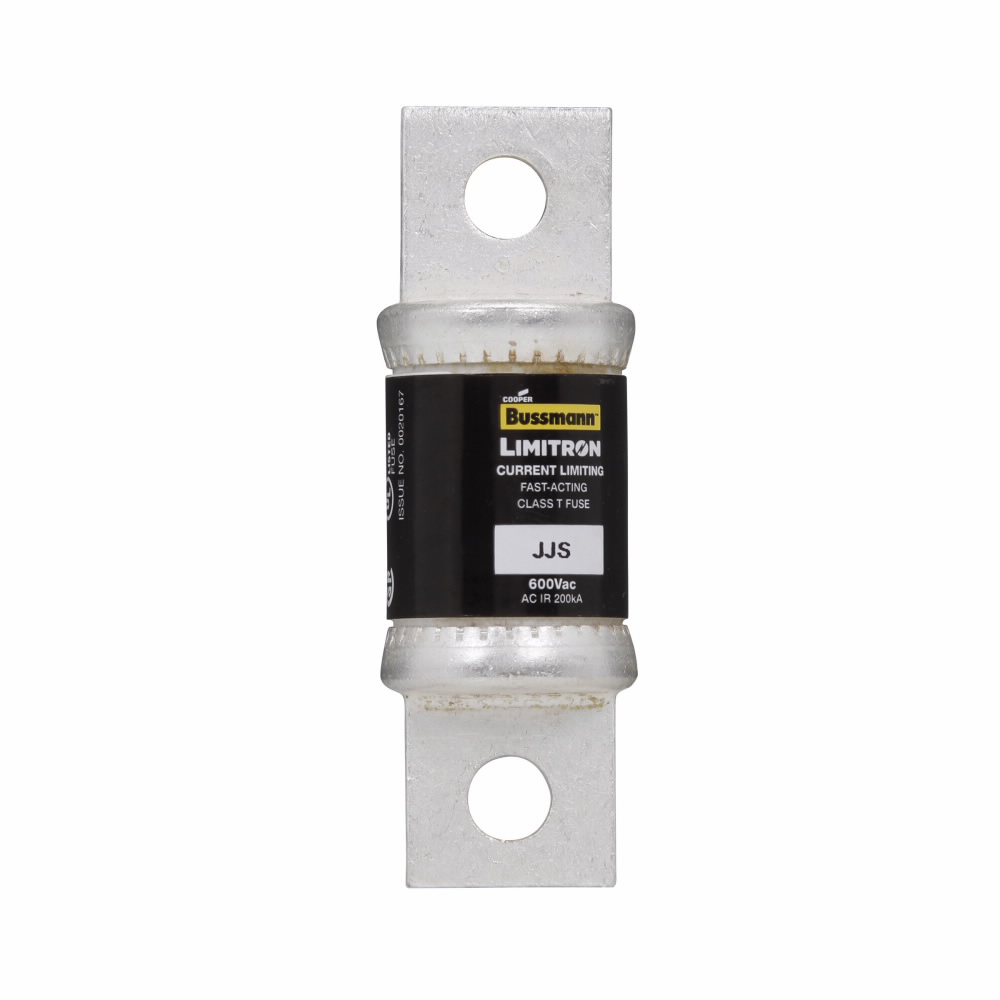

Bussmann JJS-125 Class T Tron Fast Acting Fuse 125 A

Product Description

The Bussmann JJS-125 is a Class T Tron fast-acting fuse designed by Bussmann. This fuse is current-limiting and provides effective protection for Variable Frequency Drives (VFDs). It has a small footprint, making it suitable for various applications in power distribution. Rated at one hundred twenty-five amps and capable of handling voltages up to six hundred volts, it features a bolted blade connection at both ends, ensuring reliable installation. This fuse can interrupt currents of up to two hundred kAIC, making it ideal for use in high-demand scenarios.

• Current-limiting design for enhanced safety.
• Size: Zero point eighty-eight inches in diameter by three point twenty-five inches in length.
• Compliant with CE, CSA C22.2, and UL 248-15 standards.

Product Highlights

Suitable for large apartment complexes, multi-family meter stacks, and provides VFD line protection.

Product Information

Standard Information

• Brand: Bussmann
• Class: T

Technical Specifications

• MPN: JJS-125
• Voltage Rating: 600 Volt
• Amperage Rating: 125 Amp
• Interrupt Rating: 200 kAIC
• Standard: CE, CSA C22.2, UL 248-15
• Connection Type: Blade, bolted
• Size: 0.88 inches in diameter x 3.25 inches in length
• Weight: 0.2 lb
