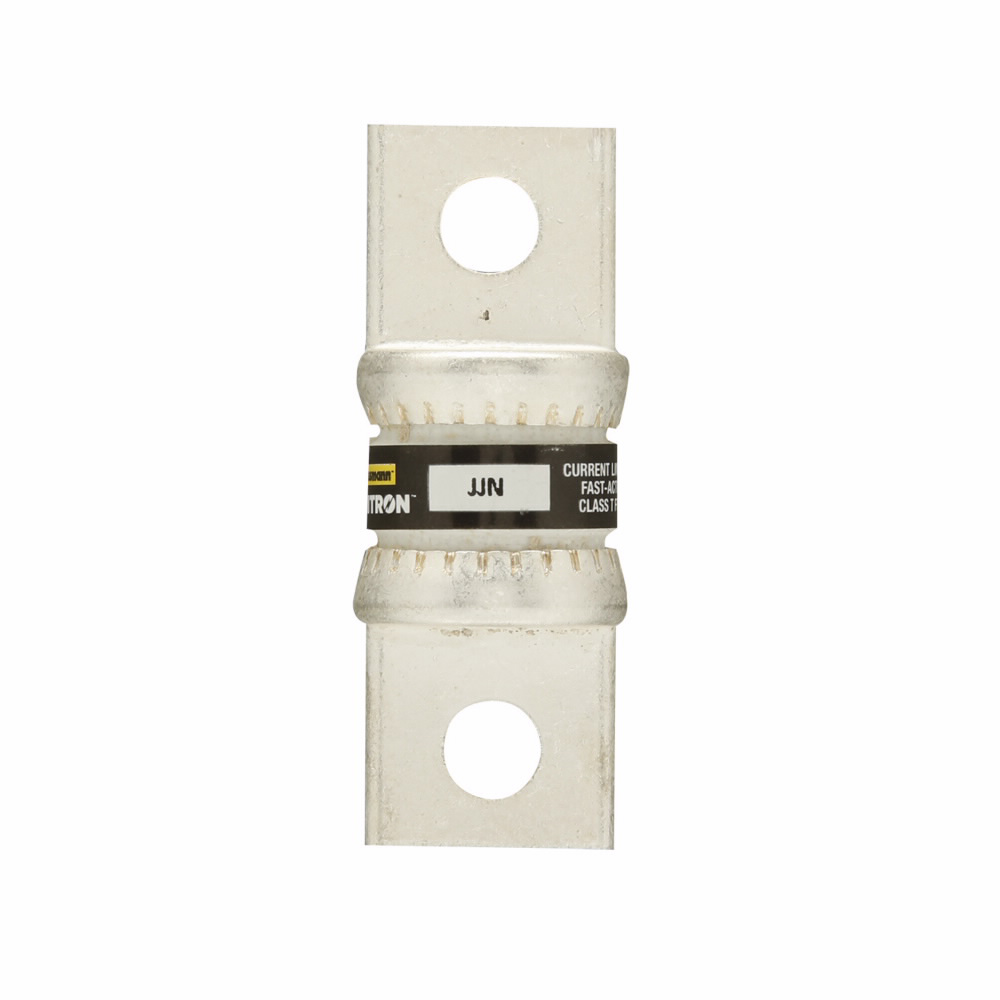

Bussmann JJN-80 Tron Fast Acting Fuse 80 Amp

Product Description

The Eaton Bussmann series JJN-80 is a Class T, current-limiting, fast-acting fuse designed for VFD line protection. This non-indicating fuse features bolted blade end x bolted blade end connections. It has an interrupt rating of 200 kAIC at 300 V and 20 kAIC at 160 Vdc.

• Current-limiting
• VFD line protection
• Non-indicating

Product Highlights

The JJN-80 fuse provides current limitation to help prevent equipment damage caused by short-circuit events and complies with NEC Section 110.9 for large capacity systems.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JJN-80

Technical Specifications

• Brand: Bussmann
• Class: Class T
• Voltage: 160 Volt
• Amperage: 80 Amp
• Diameter: 3/4 Inch
• End Type: Blade,Bolted
• Standard: CE,CSA C22.2,UL 248-15
• Sub Brand: T-Tron
• Applications: Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection
• Interrupt Rating: 200 kAIC
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Rejection/Non-Rejection: Non-Rejection
• Series: JJN
• Terminal Type: Bolted Blade
• Voltage Rating: 300 VAC/160 VDC
• Body Type: Cartridge
• Type: Current Limiting,Very Fast Acting
