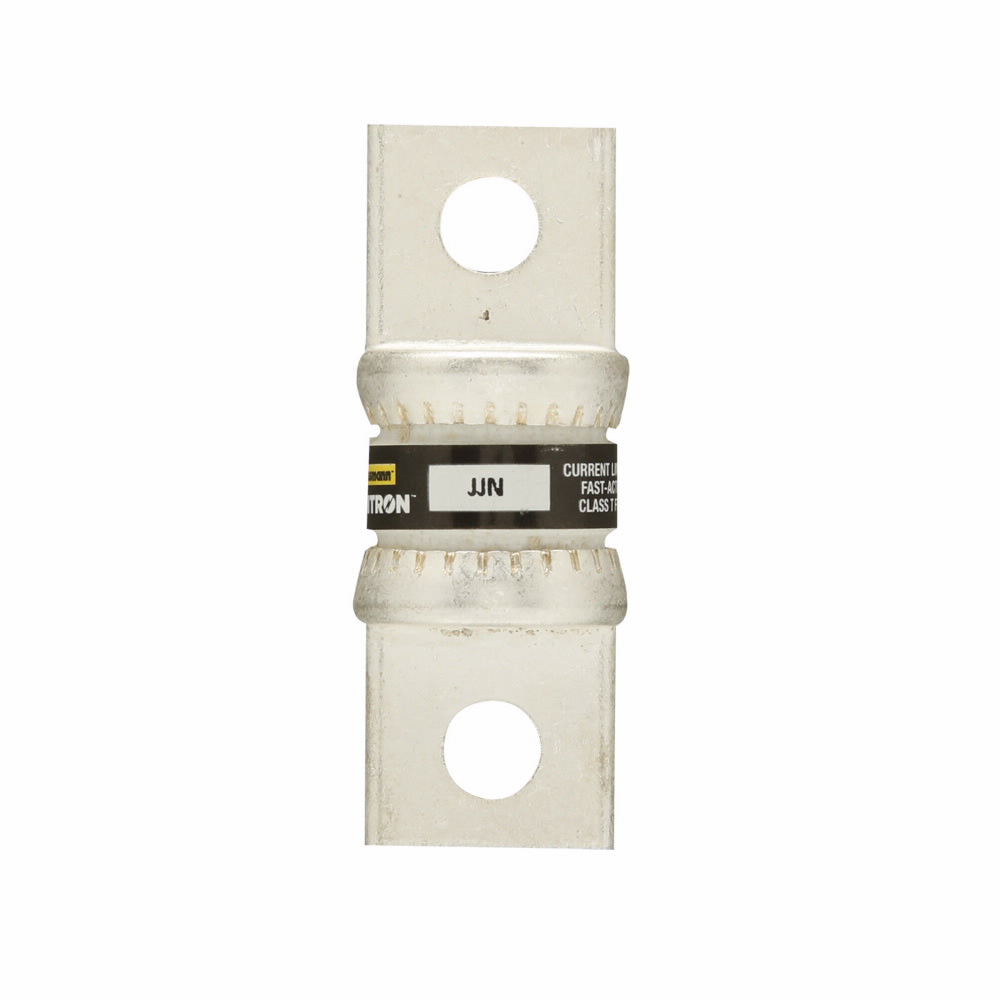

Bussmann JJN-70 Class T Tron Fast Acting Fuse 70A 300VAC/160VDC 20/200 kA Interrupt

Product Description

The Bussmann JJN-70 is a Class T fast acting fuse designed for current limiting applications. This fuse offers line protection for variable frequency drives. It can handle an amperage of seventy and voltages of up to three hundred VAC or one hundred sixty VDC.

• Current limiting for enhanced equipment protection
• Fast acting design for immediate response to overcurrent conditions
• Specifications include a diametric size of 0.75 inches and a length of 2.16 inches

Product Highlights

This Bussmann JJN-70 fuse features a bolted blade terminal connection type and adheres to various standards including UL 248-15 and CSA E2186.

Product Information

Standard Information

• Brand: Bussmann
• Sub Brand: T-Tron

Technical Specifications

• Amperage Rating: 70 Amp
• Voltage Rating: 300 VAC/160 VDC
• Interrupt Rating: 20/200 kA
• Body Size: 0.75 in Diameter x 2.16 in Length
• Fuse Type: Fast Acting Current Limiting
• Terminal Type: Bolted Blade
• End Type: Blade, Bolted
• Mounting Type: Holder
