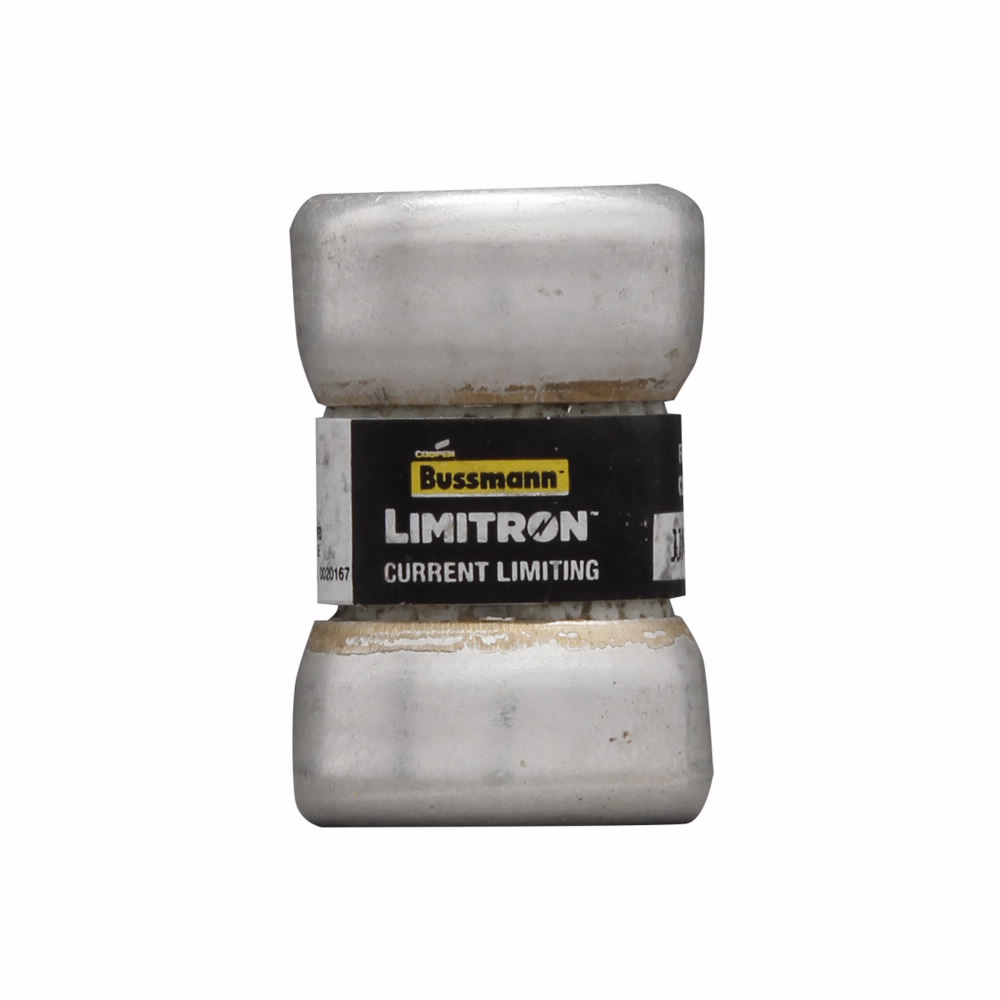

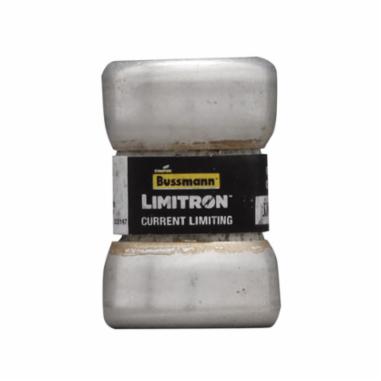

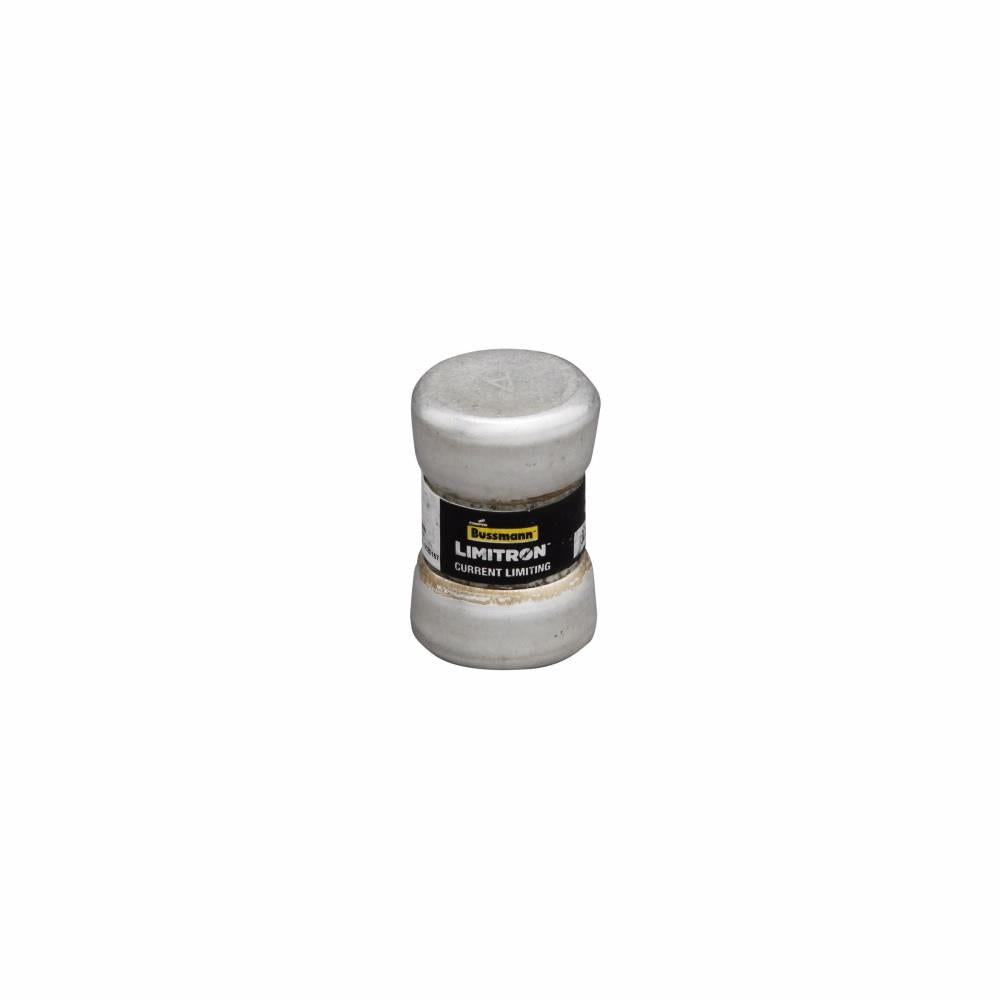

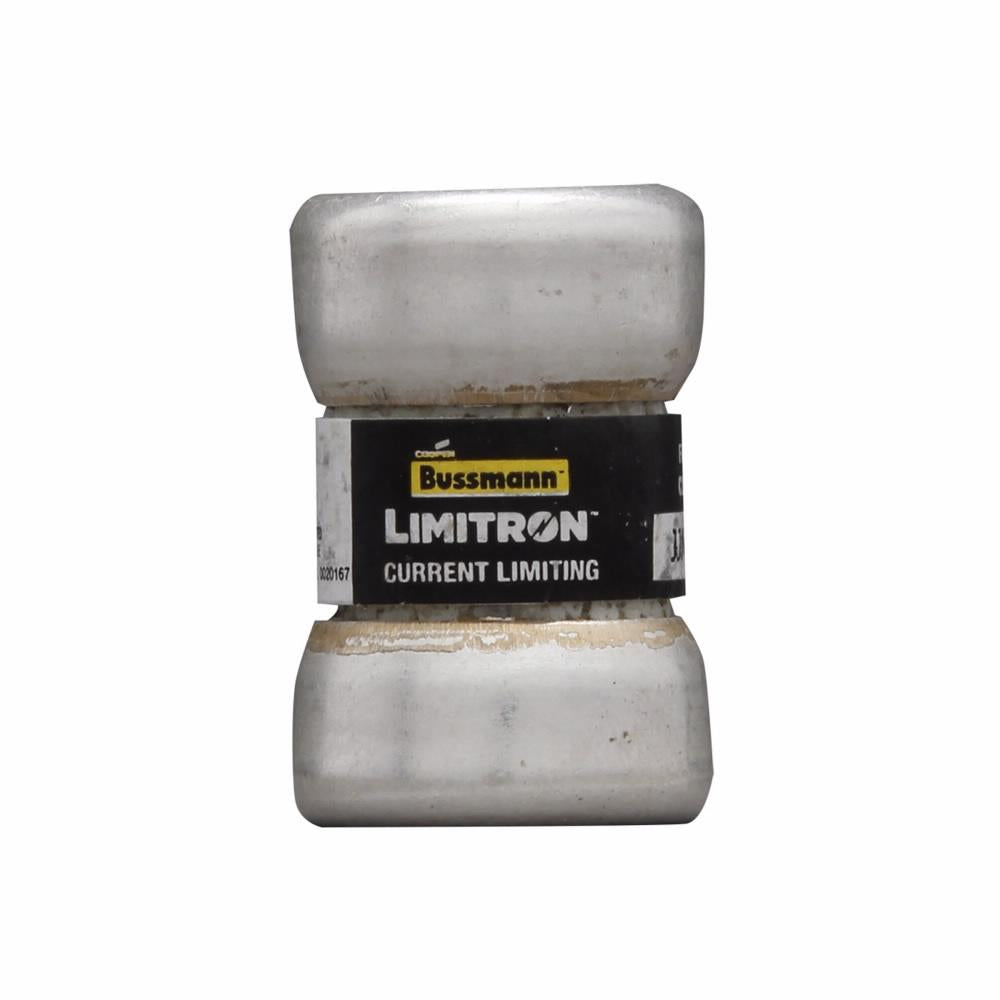

Bussmann JJN-60 Class T Tron Fast Acting Fuse 60 A (1 Pack) Replacement MPN

Product Description

The Bussmann JJN-60 fuse is a fast-acting, current-limiting fuse designed for effective protection in various applications. It features a cylindrical body and is rated for 60 amperes of current. This fuse operates at voltages up to three hundred volts alternating current or one hundred sixty volts direct current and can interrupt currents of up to two hundred kA.

• Current-limiting and fast acting
• Ferrule end connection type
• Meets UL 248-15 and CE standards

Product Highlights

This fuse provides high current limitation and enhances equipment protection against short-circuit events.

Product Information

Standard Information

• Brand: Bussmann
• Product ID: 85950

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 300 VAC/160 VDC
• Interrupt Rating: 200/20 kAIC
• Type: Current Limiting Very Fast Acting
• Body Size: 0.56 in diameter x 0.88 in length
• Material: Melamine
• Mounting Type: Holder
• Body Type: Cylindrical
