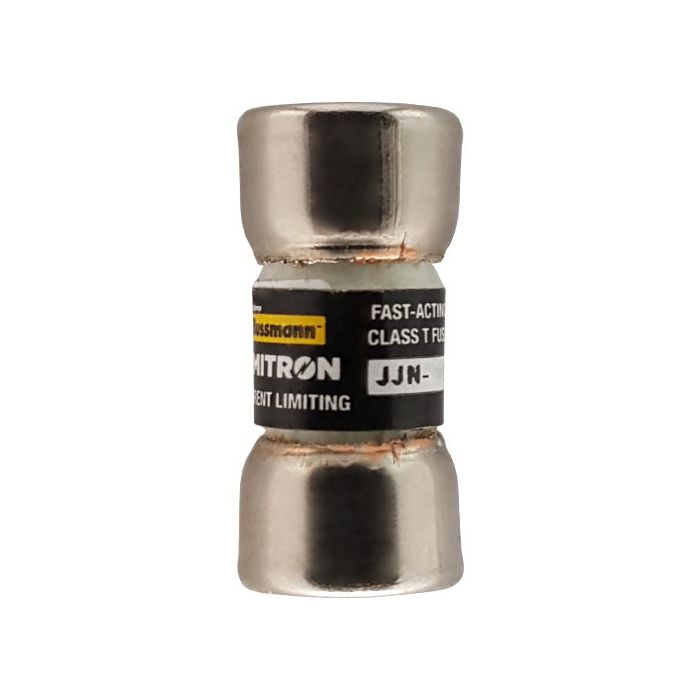

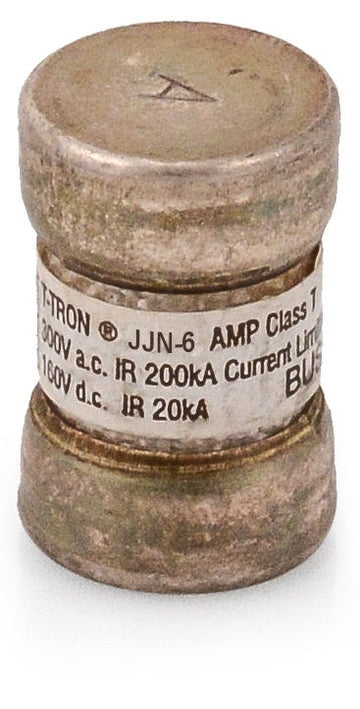

Bussmann JJN-6 Fuse 6 A

EATON
Brand: EATON
SKU: JJN-6
Availability: In Stock

Ships same day if ordered by 12 pm
$79.57
$79.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton BUSSMANN JJN-6 fuse is a current-limiting fuse designed for VFD line protection. Rated at 6 A and 300 V, it features ferrule end connections and a non-indicating design. This Class T fuse offers a 200 kAIC interrupting rating at 300 V. Ideal for industrial and commercial applications with specific current limitation requirements.

  • Current-limiting capabilities
  • VFD line protection
  • Suitable for industrial and commercial applications

Product Highlights

The BUSSMANN JJN-6 fuse provides reliable, advanced protection for critical applications requiring current limitation.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: JJN-6
  • Country of Origin: China
Technical Specifications
Product Name
Eaton Bussmann series JJN fuse
Catalog Number
JJN-6
UPC
051712627061
Product Length/Depth
0.88 in
Product Height
0.41 in
Product Width
0.41 in
Product Type
Fuse
Amperage Rating
6 A
Interrupt rating
200 kAIC at 300 Vac
Voltage rating
300 V
Class
Class T
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Ampere
6 A
Speed
Fast Blow
Shape
Cartridge Fuses
Approvals
CE, UL, CSA, RoHS
Substitute parts
Littelfuse JLLN, Mersen A3T
Amps
6
Volts AC
300
Fuse Class
UL Class T
Acting Speed
Very Fast Acting
Current Limiting
Yes
Physical Size
0.41" x 0.88"
AC Voltage Rating
300
Interrupting Rating
200,000 AIC RMS @ 300VAC
UL Listed
Std. 248-15, Guide JDDZ, File E4273
CSA Certified
C22.2 No. 248.15, Class 1422-02, File 53787
Brand
Eaton Bussmann
Series
JJN
Mpn
JJN-6
Gtin
51712627061
Category
Business & Industrial
Electrical, Specialty Fuses
Eaton - Bussmann Electrical Division JJN-6
Voltage Rating - AC
300 VAC
Manufacturer
Eaton - Bussmann Electrical Division
Response Time
Fast Blow
Applications
Electrical, Industrial
Mounting Type
Requires Holder
Breaking Capacity @ Rated Voltage
200kA
Fuse Type
UL Class T
Size / Dimension
0.410" Dia x 0.880" L (10.41mm x 22.35mm)
Current Rating (Amps)
6A
Product Series
JJN
Family Series
Eaton's Bussmann series Fuses, JJN Series
Description
Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 6 A, Class T, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 300 V, Standard, 10, 300 V
Current Rating
6 A
AC Voltage
300 VAC
Characteristic
Very Fast Acting
Interrupt Rating
200 kA @ 300 V
Trip Indicator
No
Alarm Contacts
No
Package Type
Cartridge
Diameter
0.41 "
Net Weight
0.1 lbs
Gross Weight
0.1 lbs
