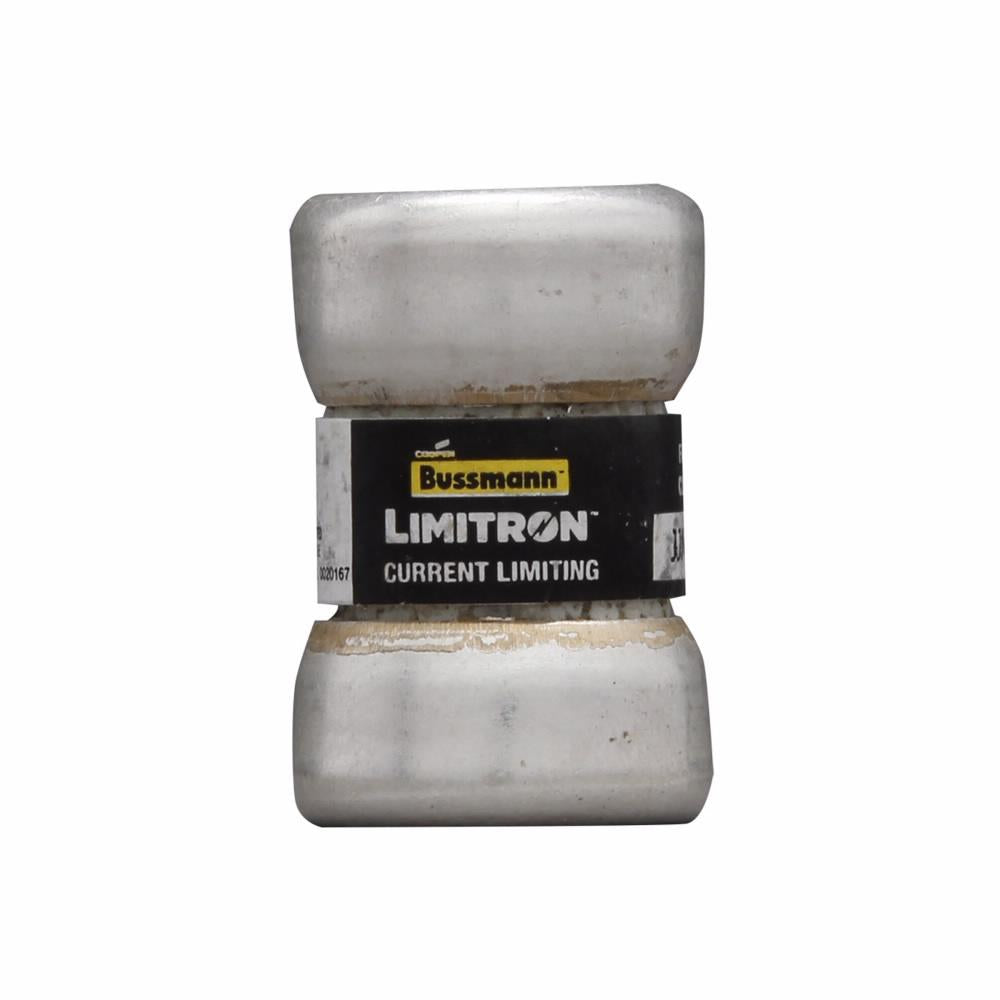

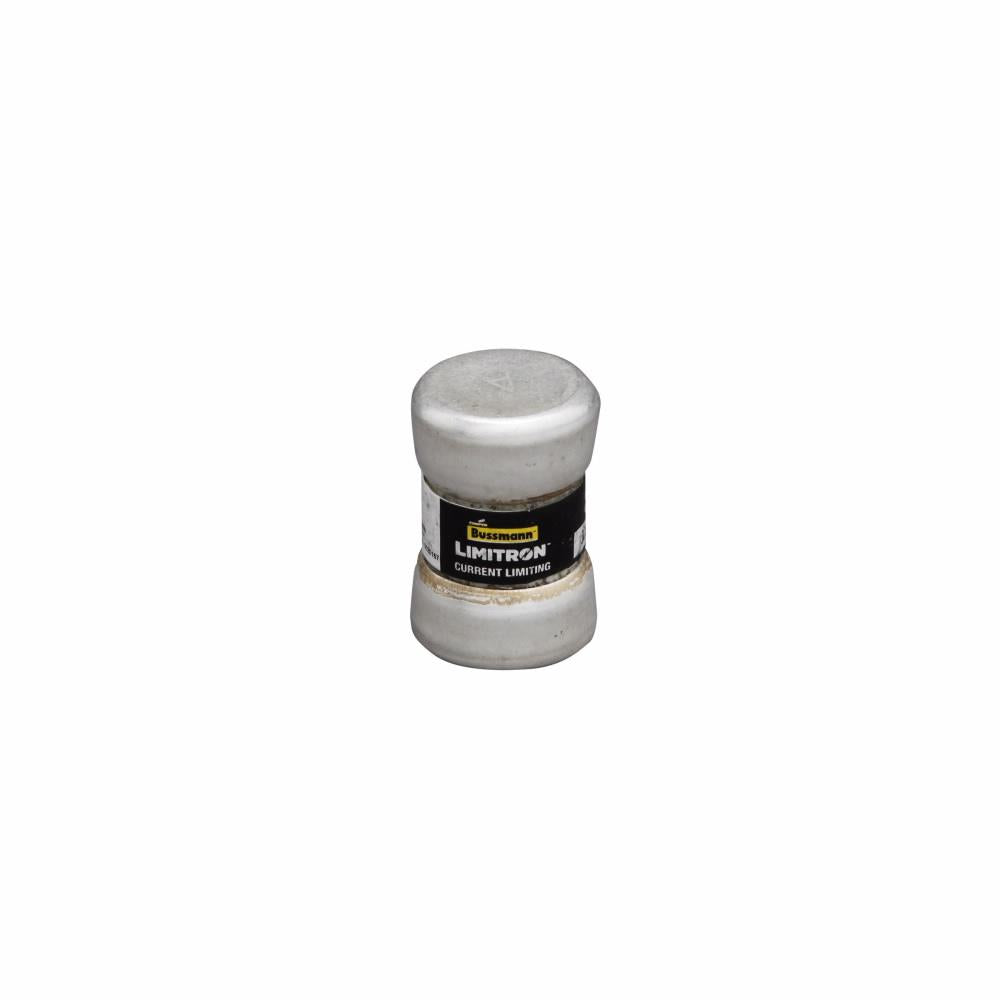

Bussmann JJN-50 Series JJN-50 Class T Tron Fast Acting Fuse

Product Description

The Eaton BUSSMANN series JJN-50 fuse is a current-limiting, fast-acting Class T fuse designed for VFD line protection. This non-indicating fuse features ferrule end x ferrule end connections. It has an interrupt rating of 200 kAIC at 300 V and 20 kAIC at 160 Vdc.

• Current-limiting
• VFD line protection
• Non-indicating
• Ferrule end x ferrule end

Product Highlights

Provides excellent component protection with a high degree of current limitation on short circuits. Ideal for large apartment complexes and multi-family meter stacks.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JJN-50

Technical Specifications

• Catalog Number: JJN-50
• Type: Current Limiting, Very Fast Acting
• Brand: Bussmann
• Class: Class T
• Height: 0.86 Inch
• Length: 0.57 Inch
• Voltage: 300 VAC/160 VDC
• Amperage: 50 Amp
• Diameter: 0.56 Inch
• End Type: Ferrule
• Standard: CE,CSA C22.2,UL 248-15
• Sub Brand: T-Tron
• Applications: Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection
• Connection Type: Ferrule
• Interrupt Rating: 200 kAIC
• Size: 0.56 In Diameter X 0.88 In Length
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Rejection/Non-Rejection: Non-Rejection
• Series: JJN
• Terminal Type: Ferrule
• Voltage Rating VAC: 300V
• Voltage Rating VDC: 160V
• Blow Characteristic: Fast Acting
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
