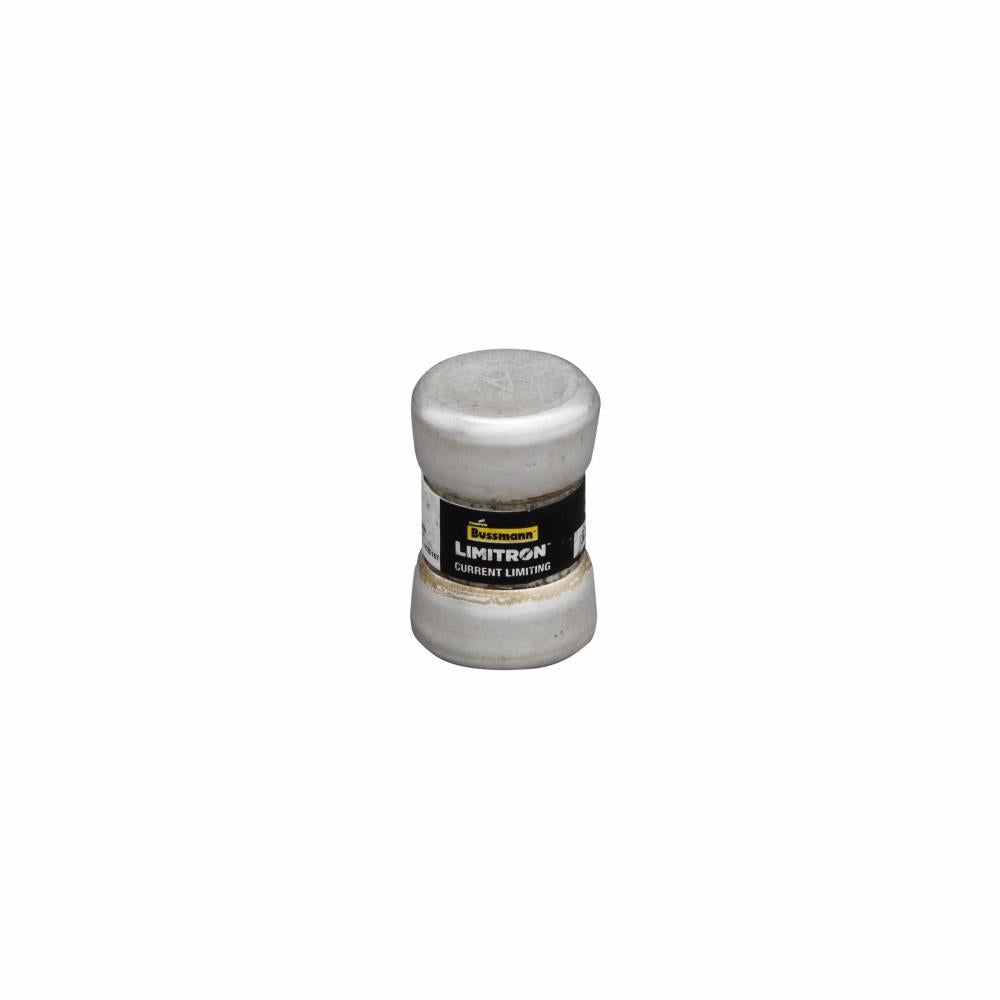

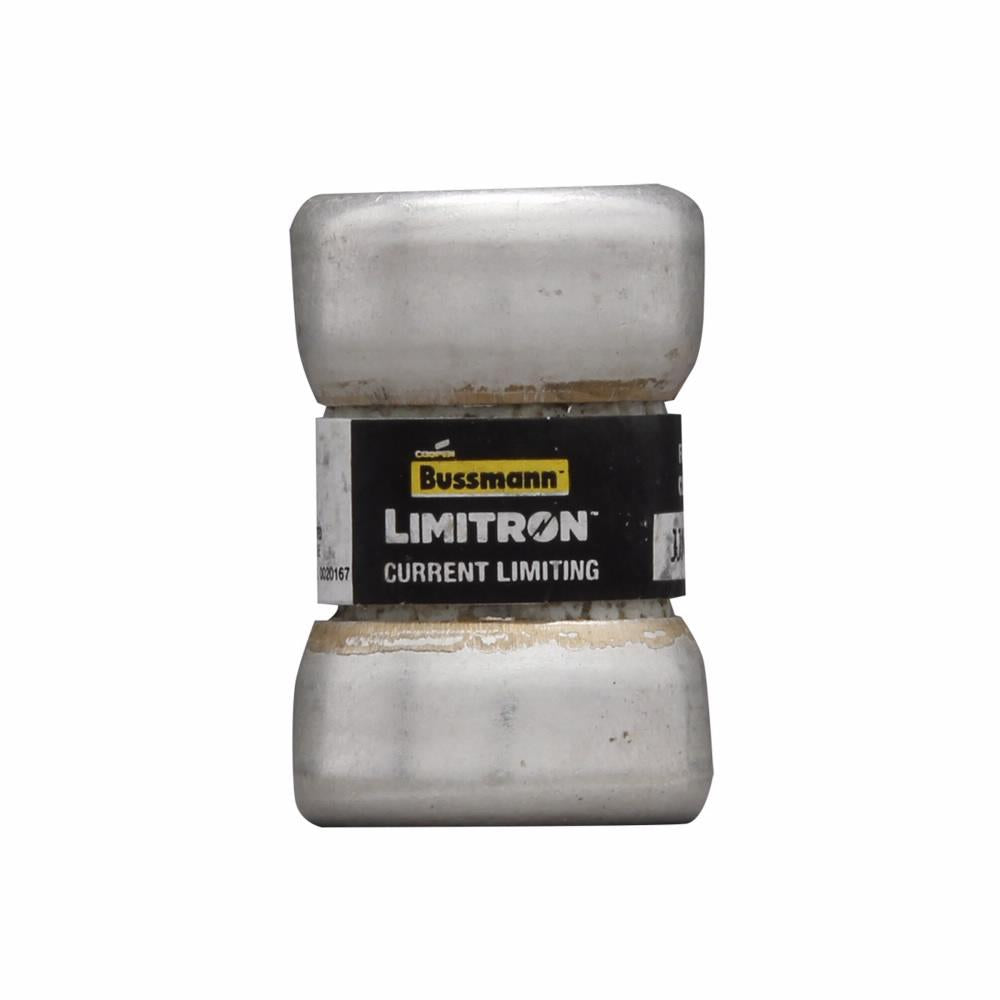

Bussmann JJN-45 Fuse 45 A

Product Description

The Bussmann JJN-45 is a Class T current-limiting, fast-acting fuse. It provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. With a 200 kA interrupting rating, it complies with NEC Section 110.9 for today's large capacity systems. Its small, space-saving design offers a high degree of current limitation on short-circuits.

• Small footprint allows more efficient use of available space
• Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
• Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions

Product Highlights

The JJN-45 fuse offers superior component protection with its fast-acting design and high interrupting rating.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JJN-45
• Country of Origin: United States

Technical Specifications

• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Rejection/Non-Rejection: Non-Rejection
• Series: JJN
• Terminal Type: Ferrule
• Type: Fast Acting Current Limiting
• Amperage Rating: 45 A
• Voltage Rating: 300 VAC/160 VDC
• Interrupt Rating: 20/200 kA
• Class: T
• Body Type: Cylindrical
• Characteristics: Very Fast Acting
• Interrupting Rating: 200000 Ampere (Symmetrical), 20000 Ampere (Dc)
• Approval: Ul 248-15, Csa, Ce
• Feature: Current Limiting
• Speed: Very Fast Acting
• Mounting: Cartridge
• Interrupt Rating DC: 20 kA
