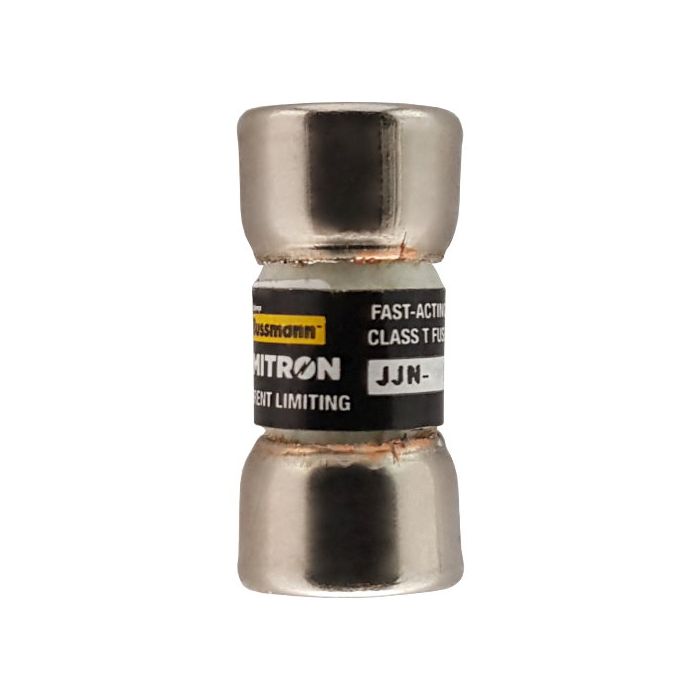

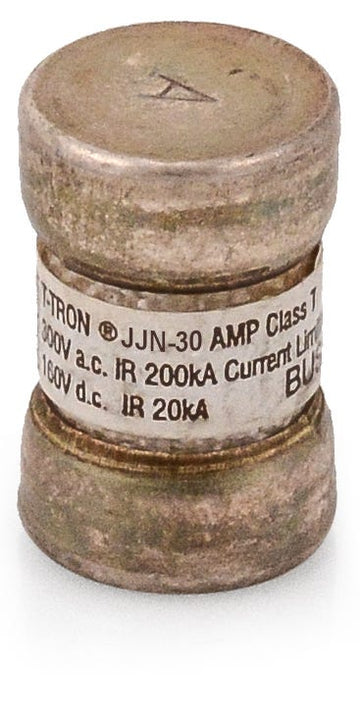

Bussmann JJN-30 Fuse 30 Amps 300 Volts AC

Product Description

The BUSSMANN JJN-30 is a 30 Amp, 300 Volts AC, UL Class T fuse with very fast acting speed and current limiting. It is UL Listed, CSA Certified and has an interrupting rating of 200,000 AIC RMS @ 300VAC. This fuse provides VFD line protection and is suitable for large apartment complexes and multi-family meter stacks.

• 30 Amps
• 300 Volts AC
• UL Class T Fuse

Product Highlights

The BUSSMANN JJN-30 fuse offers very fast acting speed and current limiting for reliable circuit protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JJN-30

Technical Specifications

• Amps: 30
• Volts AC: 300
• Fuse Class: T
• Acting Speed: Very Fast Acting
• Current Limiting: Yes
• AC Voltage Rating: 300
• Interrupting Rating: 200,000 AIC RMS @ 300VAC
• UL Listed: Std. 248-15, Guide JDDZ, File E4273
• CSA Certified: C22.2 No. 248.15, Class 1422-02, File 53787
• Product Name: Eaton Bussmann series JJN fuse
• Catalog Number: JJN-30
• UPC: 051712627009
• EAN: 5027590508674
• Product Length/Depth: 0.42 in
• Product Height: 0.87 in
• Product Width: 0.42 in
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 30 A
• Interrupt rating: 20 kAIC at 160 Vdc 200 kAIC at 300 Vac
• Voltage rating: 300 Vac, 160 Vdc
• Packaging type: Standard
• Class: Class T
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Quantity: 10
• Applications: Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection
• Connection Type: Ferrule
• End Type: Ferrule
• Size: 0.41 In Diameter X 0.88 In Length
• Standard: CSA,E2186,UL
• TC Connection: Ferrule End X Ferrule End
• Type: Monitoring
• Voltage: 160 Volt
• Brand: Eaton
• Sub Brand: T-Tron
• 12-Digit UPC: 051712627009
• GTiN: 00051712627009
• Product UPC: 05171262700
• Series: JJN
• Mpn: JJN-30
• Gtin: 51712627009
