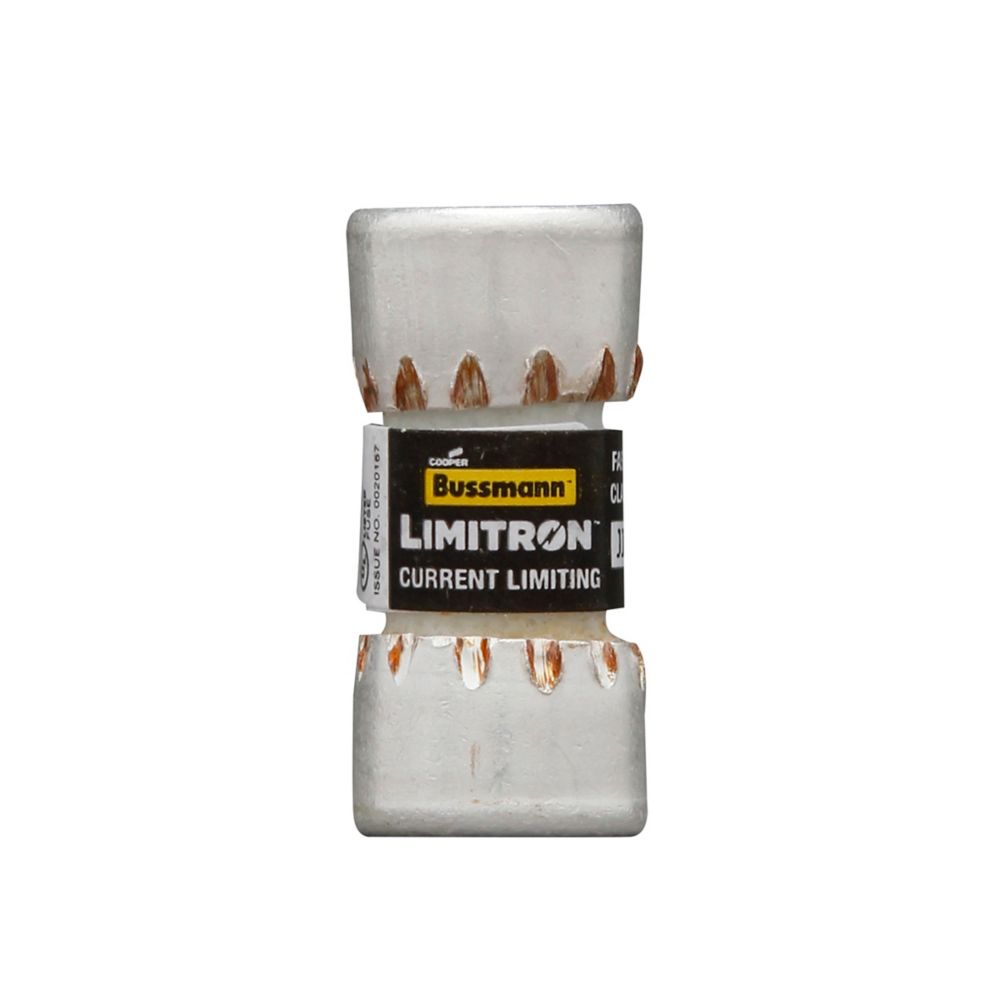

Bussmann JJN-25 Fast Acting Class T Fuse 25A

Product Description

The BUSSMANN JJN-25 is a 25A, 300VAC Class T fuse designed for fast-acting current limitation. It helps prevent equipment damage from short-circuit events. Ideal for industrial or commercial applications with specific current limitation requirements. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events.

• Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events.
• 200 kA interrupting rating complies with NEC Section 110.9 for today’s large capacity systems.
• Fast-acting fuse helps prevent equipment damage caused by short-circuit events.

Product Highlights

The BUSSMANN JJN-25 is a fast-acting Class T fuse with a 200kA interrupting rating, ideal for industrial and commercial applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JJN-25

Technical Specifications

• Manufacturer: Bussmann
• Description: 25A 300VAC, Bussmann Class T Fuse, Fast Acting Fuse, Current Limiting Fuse
• Product Name: Cooper Bussmann Fast Acting Class T Fuse JJN Fuse
• Catolog Number: JJN-25
• Rated Amperage: 25A
• Rated Voltage: 300VAC
• Datasheet: PDF
• Product Length: 0.88 in
• Product Diameter: 0.41 in
• Product Weight: 0.1 lb
• Class: Class T Fuse
• Voltage Type: AC, DC
• Package Type: Standard
• Breaking Capacity: 200kA Vac RMS Sym
• Agency information: cULus Listed file No. JDDZ.E4273 UL 248-15 CSA C22.2 No. 248.15 CE RoHS compliant
