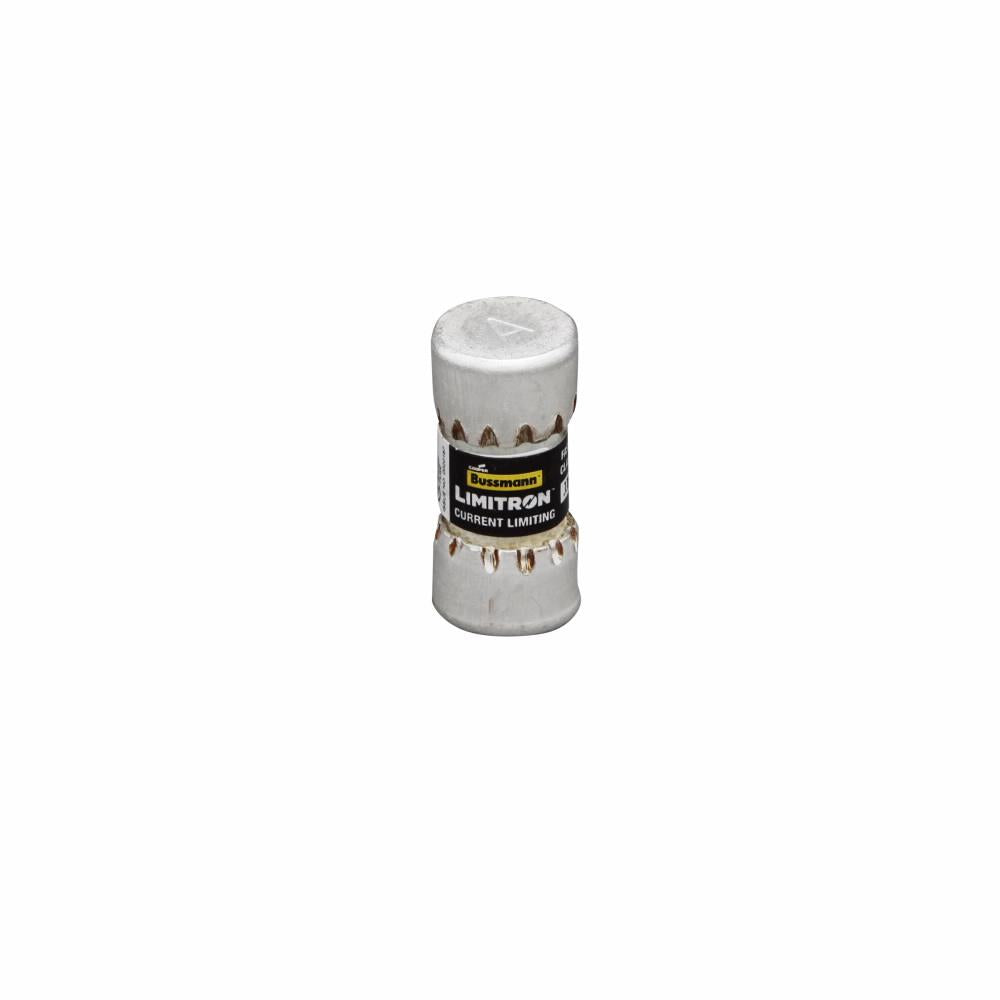

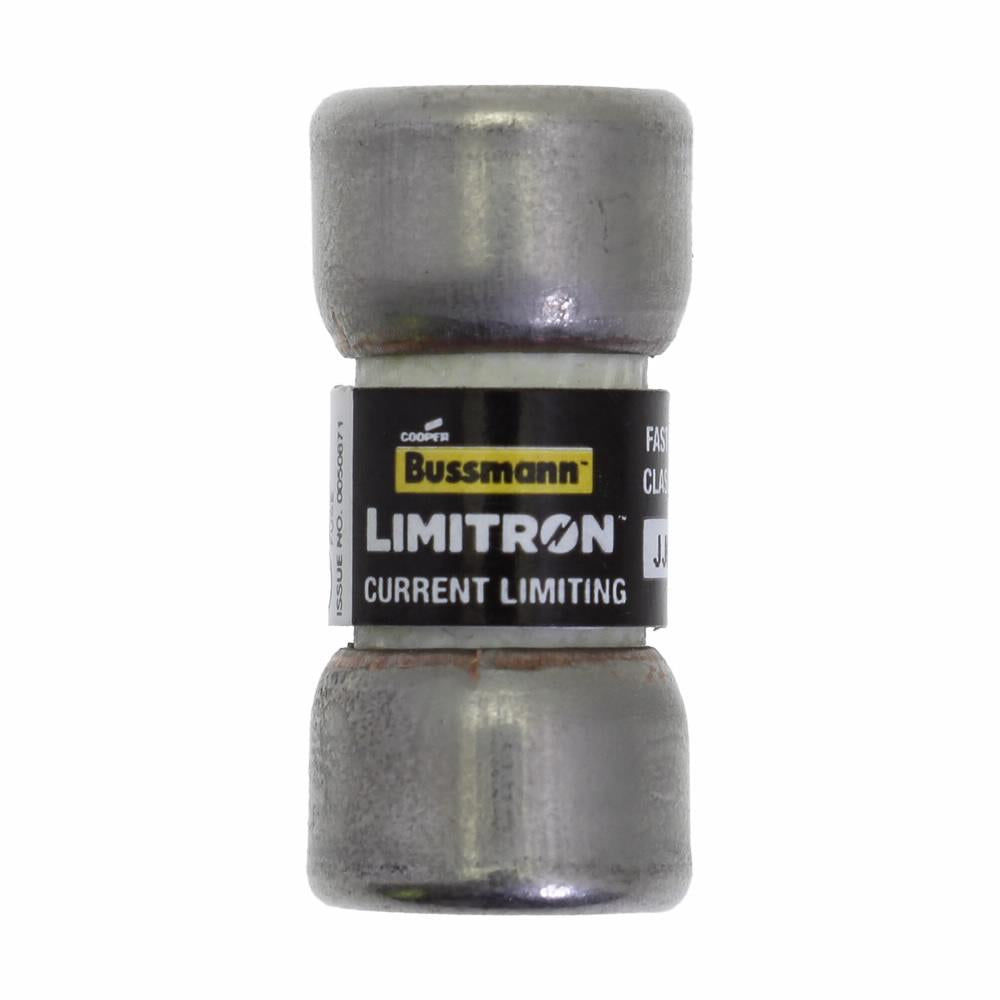

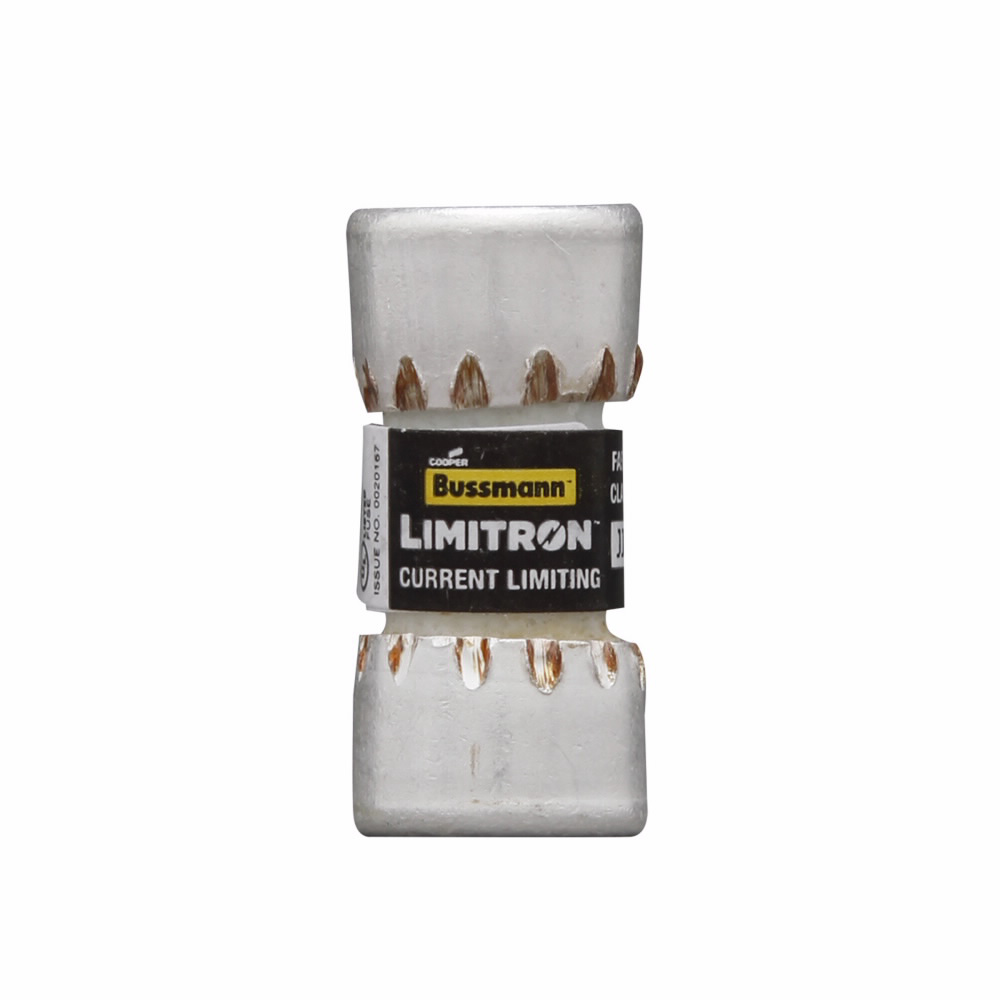

Bussmann JJN-20 Bussmann Series JJN-20 Class T Tron Fast Acting Fuse

Product Description

The Bussmann JJN-20 is a Class T fast-acting fuse from Bussmann, designed for current limitation and VFD line protection. With a rating of twenty amps, this fuse provides effective protection in various applications including large apartment complexes and multi-family meter stacks.

• Current-limiting feature helps to prevent damage from short-circuits.
• Compact size allows for efficient usage in tight spaces.
• 200 kA interrupt rating accommodates large capacity systems.

Product Highlights

This fuse is ideal for applications requiring a fast-acting response to overloads while maintaining high operational standards.

Product Information

Standard Information

• Brand: Bussmann
• MPN: JJN-20

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 300 VAC/160 VDC
• Body Size: 0.41 in Diameter x 0.88 in Length
• Interrupt Rating: 20/200 kA
• Class: T
• End Type: Ferrule
• Material: Melamine
• Mounting Type: Holder
