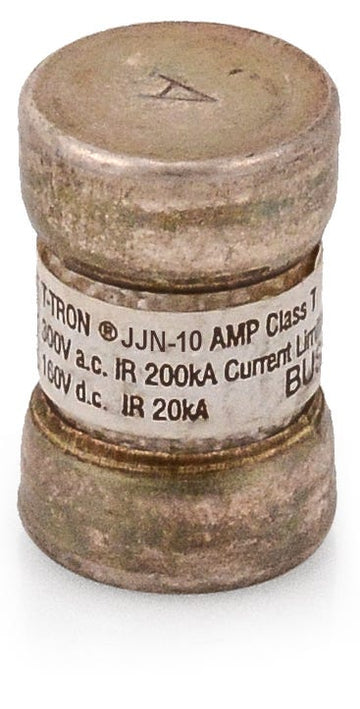

Bussmann JJN-10 Fuse 10 A

Product Description

The BUSSMANN JJN-10 is a current-limiting fuse designed for VFD line protection. Rated at 10 A and 300 V, this Class T fuse features ferrule end connections and a non-indicating design. It offers an interrupt rating of 200 kAIC at 300 Vac and is suitable for fast-acting applications.

• Current-limiting
• VFD line protection
• Non-indicating
• Ferrule end x ferrule end

Product Highlights

Fast-acting fuse with high interrupt rating for sensitive equipment protection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: JJN-10
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Bussmann series JJN fuse
• Catalog Number: JJN-10
• UPC: 051712627108
• Product Length/Depth: 0.88 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 10 A
• Interrupt rating: 200 kAIC at 300 Vac
• Voltage rating: 300 V
• Packaging type: Standard
• Class: Class T
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Brand: BUSSMANN
• Series: JJN
• Mpn: JJN-10
• Gtin: 51712627108
• Condition: New
• Body Material: Melamine
• AC Voltage Rating: 300 V AC
• Compatible Fuse Block Series: T300;
• Current Rating: 10 A
• DC Voltage Rating: 160 V DC
• Element: Single
• Fuse Body Style: Cylindrical
• Fuse Block Style: Non-Rejection
• Fuse Class or Type: T
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 20 kA
• Overall Diameter: 13/32 in
• Overall Length: 7/8 in
• Speed: Fast-Acting
• Standards: CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
• Visual Indication: Non-Indicating
• UNSPSC: 39121608
