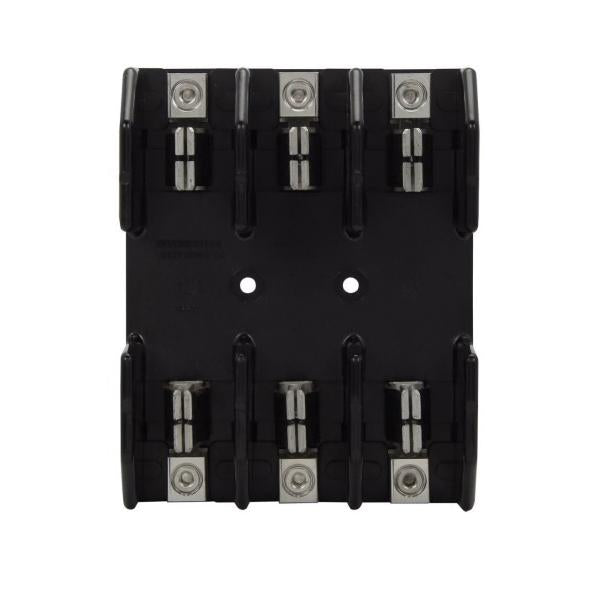

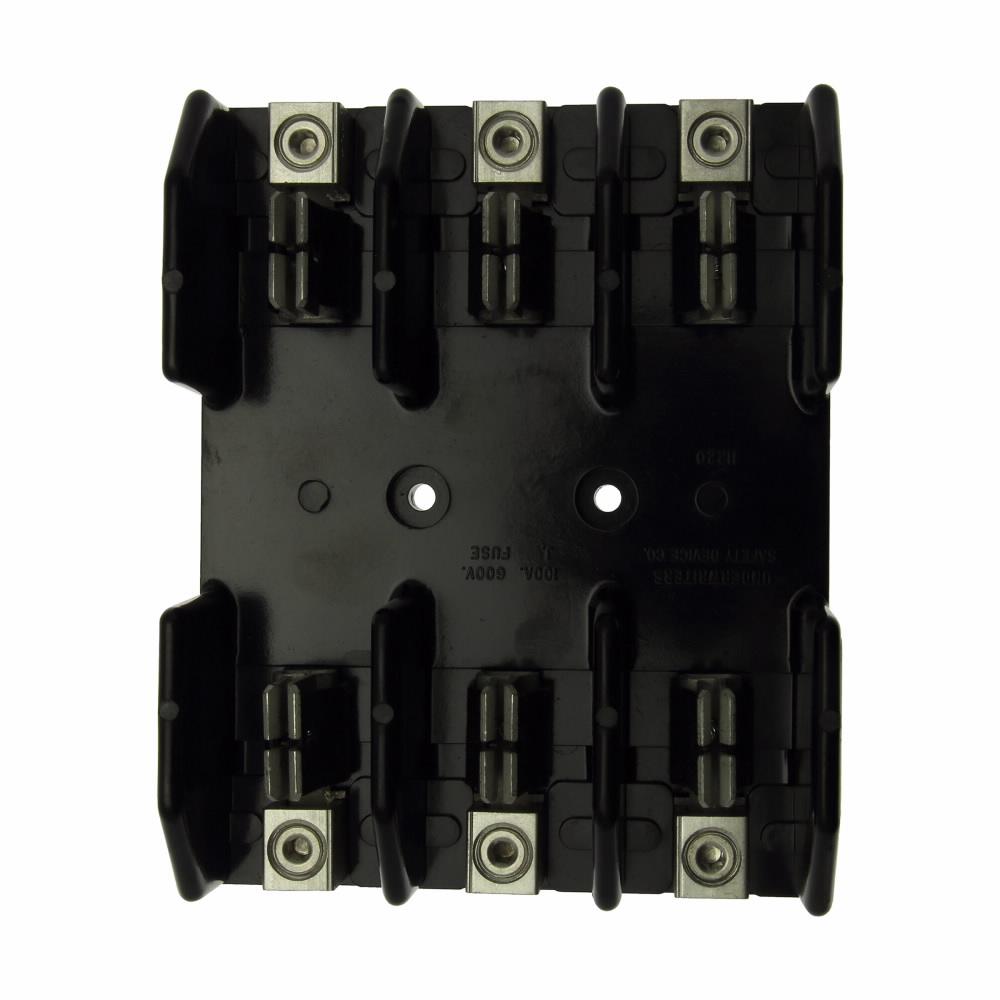

Bussmann J60100-3CR Class J Fuse Block 600 Volt 3 Poles

Product Description

The Bussmann J60100-3CR is a Class J fuse block designed for efficient power distribution. It operates at a voltage of six hundred volts and is suitable for applications requiring an amperage range of sixty-one to one hundred amps. The device accommodates wire sizes from eight to one-oh AWG and features a three-pole configuration, making it ideal for various electrical setups.

• Class J Fuse Block
• Mounts on DIN Rail
• Thermoplastic material for durability

Product Highlights

This fuse block is essential for protecting electrical circuits and ensuring safety in power distribution systems.

Product Information

Standard Information

• Brand: Bussmann
• MPN: J60100-3CR

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 61 to 100 A
• Class: J
• Wire Size: 8 to 1/0 AWG
• Number of Poles: 3
• Mounting Type: DIN Rail
• Material: Thermoplastic
• Dimensions: 6.28 in L x 5 in W x 2.28 in H
• Connection Type: Box Lug with Retaining Clip
