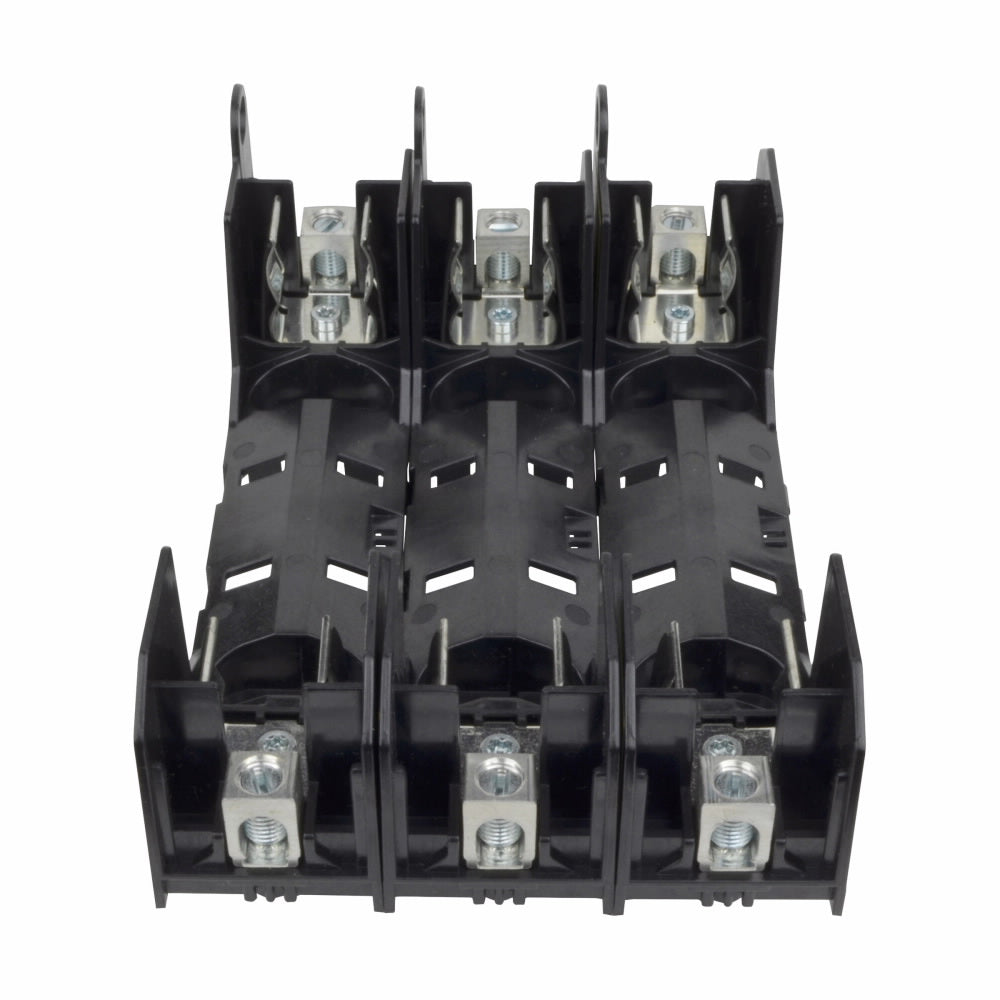

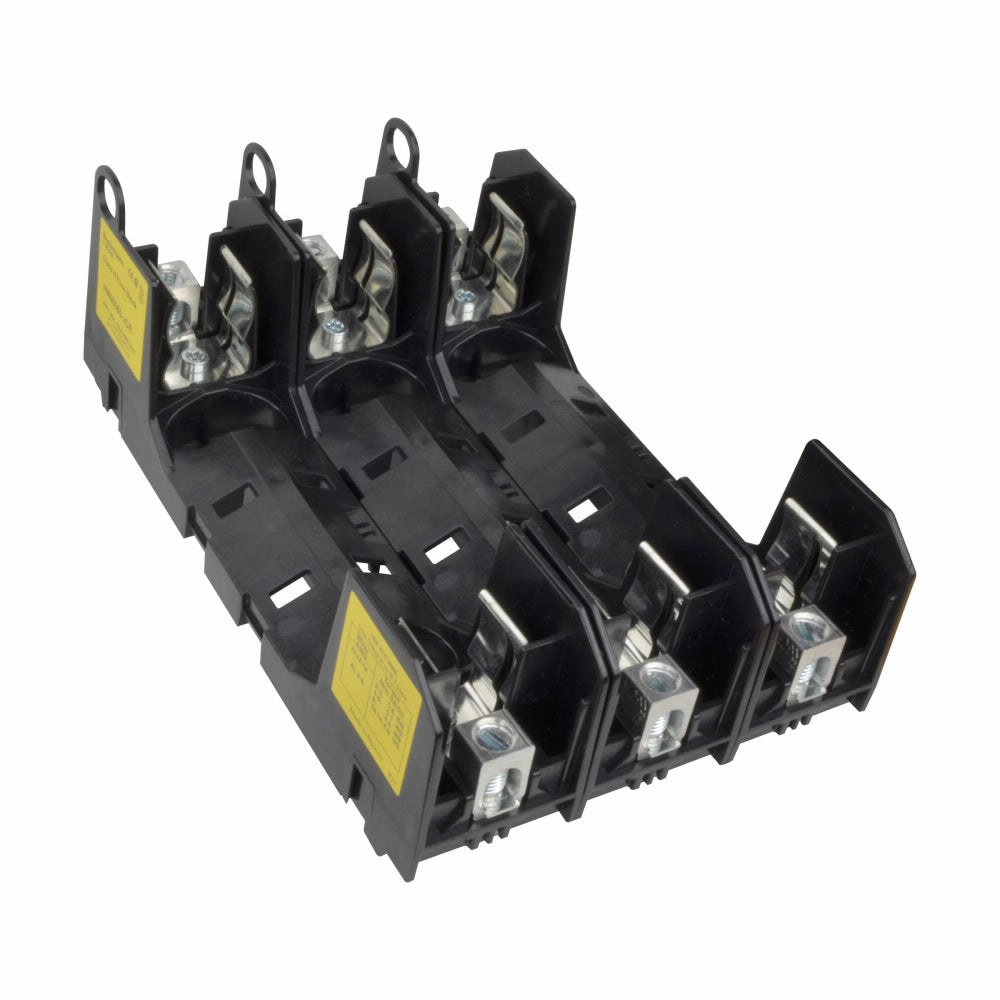

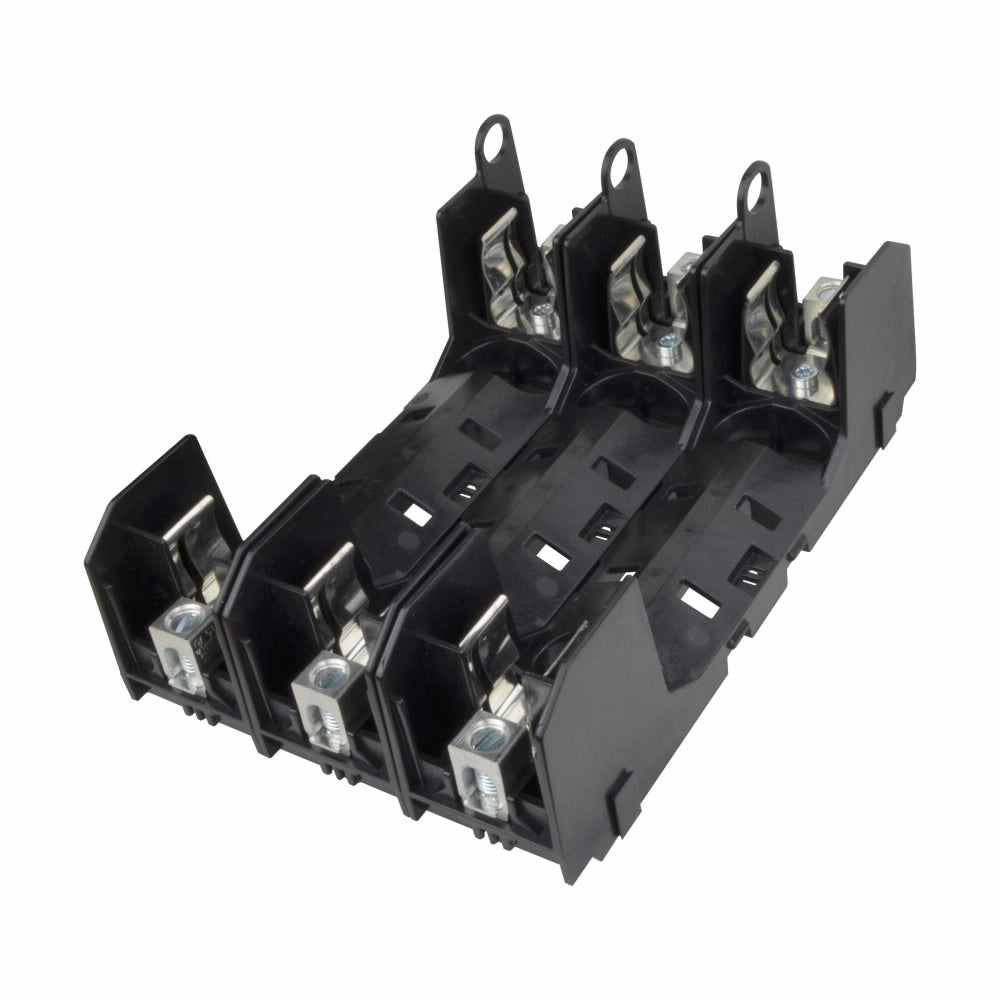

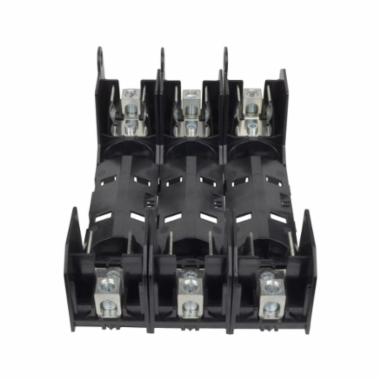

Bussmann HM60060-3CR Modular Fuse Block 600 Volt 35 to 60 Amp Class H/K

Product Description

The Bussmann HM60060-3CR is a modular fuse block designed for reliable circuit protection. This device accommodates three-pole configurations and supports voltage ratings of up to six hundred volts. It efficiently manages amperages ranging from thirty-five to sixty amps. Ideal for electrical assemblies and panel applications, this fuse block enhances safety and facilitates easy installation.

• Modular design for flexible configurations
• Supports a voltage rating of 600 volts
• Accommodates wire sizes from 14 to 2 AWG copper and 8 to 2 AWG aluminum

Product Highlights

The modular fuse block improves safety in any electrical system design. It allows for tool-less assembly and is suitable for various mounting options.

Product Information

Standard Information

• Brand: Bussmann
• MPN: HM60060-3CR

Technical Specifications

• Type: Modular Fuse Block
• Class: H/K
• Voltage Rating: 600 V
• Amperage Rating: 35 to 60 A
• Dimensions: 6.8 in L x 4.5 in W x 2.6 in H
• Fuse Length: 5-1/2 in
• Fuse Diameter: 1.06 in
• Material: Thermoplastic
• Temperature Rating: -40 to 120 deg C
• Wire Size: 14 to 2 AWG Cu, 8 to 2 AWG Al
• Mounting Type: DIN Rail/Panel
