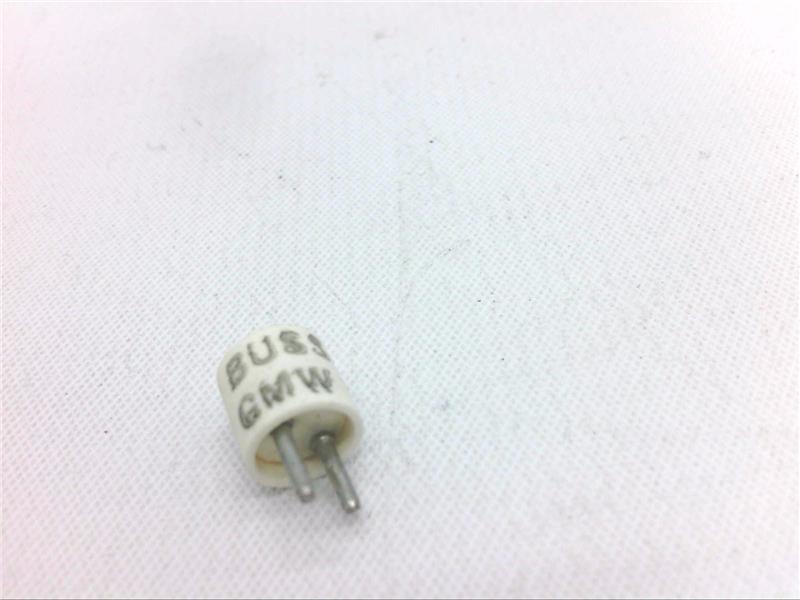

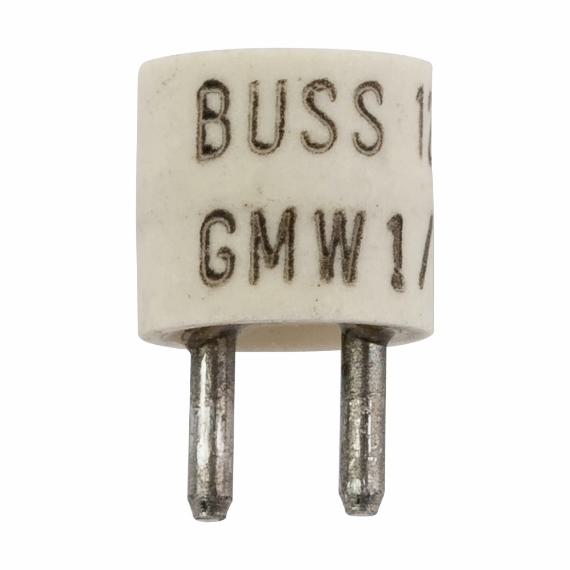

Bussmann GMW-1/32 Fuse 0.032A 125V Radial Leads

Product Description

The BUSSMANN GMW-1/32 is a fast-acting sub-miniature pin-base fuse designed for limited space applications. Rated at 0.032A and 125VAC, it can be soldered directly into a circuit or mounted in an HWA or HWA-AF series holder. A transparent window allows for visual determination of an open fuse element.

• Fast-Acting
• Sub-miniature pin-base
• For limited space applications

Product Highlights

This sub-miniature fuse is ideal for circuit protection in tight spaces, offering a transparent window for easy inspection.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GMW-1/32
• Country of Origin: USA

Technical Specifications

• fuse type: fast acting
• current rating: 0.032 a
• voltage rating: 125.0 v
• series: gmw
• mounting type: holder
• package: bulk
• item per pack: 1
• diameter: 0.280 IN
• length: 0.250 IN
• Ac Voltage: 125V AC
• Amps: 31.25 mA
• Body Style: Round Pin
• Dc Voltage: 125V DC
• Fuse Size / Group: 7.1 mm x 6.4 mm
• Fuse Type: Round Body Pin Fuses
• Indicator Style: Element Window
• Interrupt Rating: 35 AIC
• Overall Length: 0.28"
• Speed Type: Fast Blow
• Termination Type: Radial
• Visual Indication: Element Window
• Voltage: 125V AC
• Width: 6.4 mm
• Part #: GMW-1/32
• Category: Fuse
• Application: Limited Space Applications
• Terminal Type: Radial
• Type: Small Dimension Sub-Miniature Pin Base
