Bussmann GMF-5 Series GMF-5 5 Amp 300 VAC Non-Rejecting Time Delay Fuse

Product Description

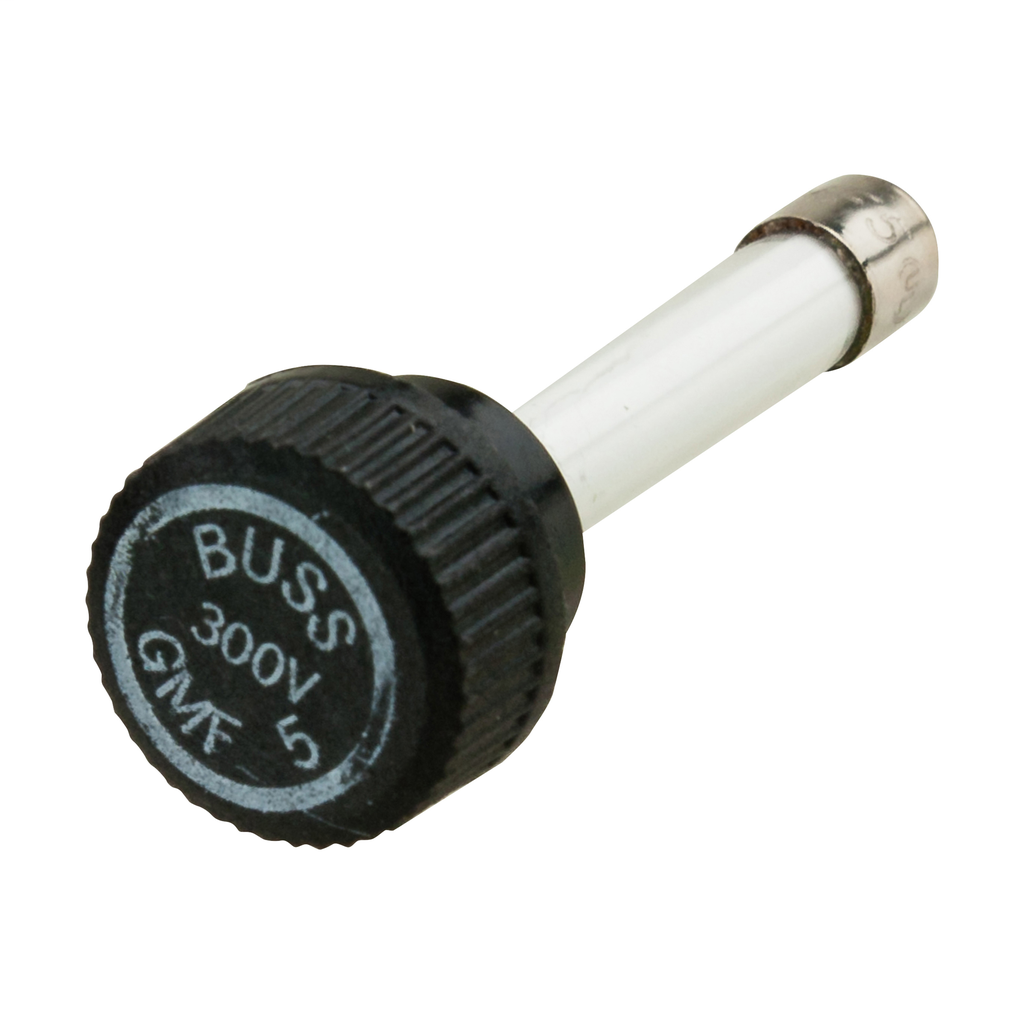

The BUSSMANN GMF-5 is a Bussmann Series GMF-5 5 Amp 300 VAC non-rejecting time delay fuse designed for in-line lighting ballast protection. It is a low voltage, supplemental fuse with a 10 kAIC interrupt rating. This fuse is suitable for panel mounting and features a cylindrical body.

• Non-Rejecting
• Time Delay
• Fuse and knob are an integral 1-piece unit and there are no replacement knobs (caps)

Product Highlights

The BUSSMANN GMF-5 fuse offers reliable supplemental protection for low voltage applications, featuring time delay functionality and a non-rejecting design.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GMF-5

Technical Specifications

• GTiN: 00051712716857
• Type: Low Voltage
• Brand: Bussmann
• Class: Supplemental
• Voltage: 300 Volt
• Amperage: 5 Amp
• Standard: CE,CSA C22.2,UL 248-14
• Product UPC: 05171271685
• 12-Digit UPC: 051712716857
• Applications: In-Line Lighting Ballast Protection
• Mounting Type: Panel/Holder
• Interrupt Rating: 10 kAIC
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Material: Glass
• Rejection/Non-Rejection: Non-Rejection
• Series: GMF
• Terminal Type: Ferrule
• Amperage Rating: 5 A
• Voltage Rating: 300 VAC
• Body Type: Cylindrical
• Speed: TIME DELAY
• SKU: GMF-5
