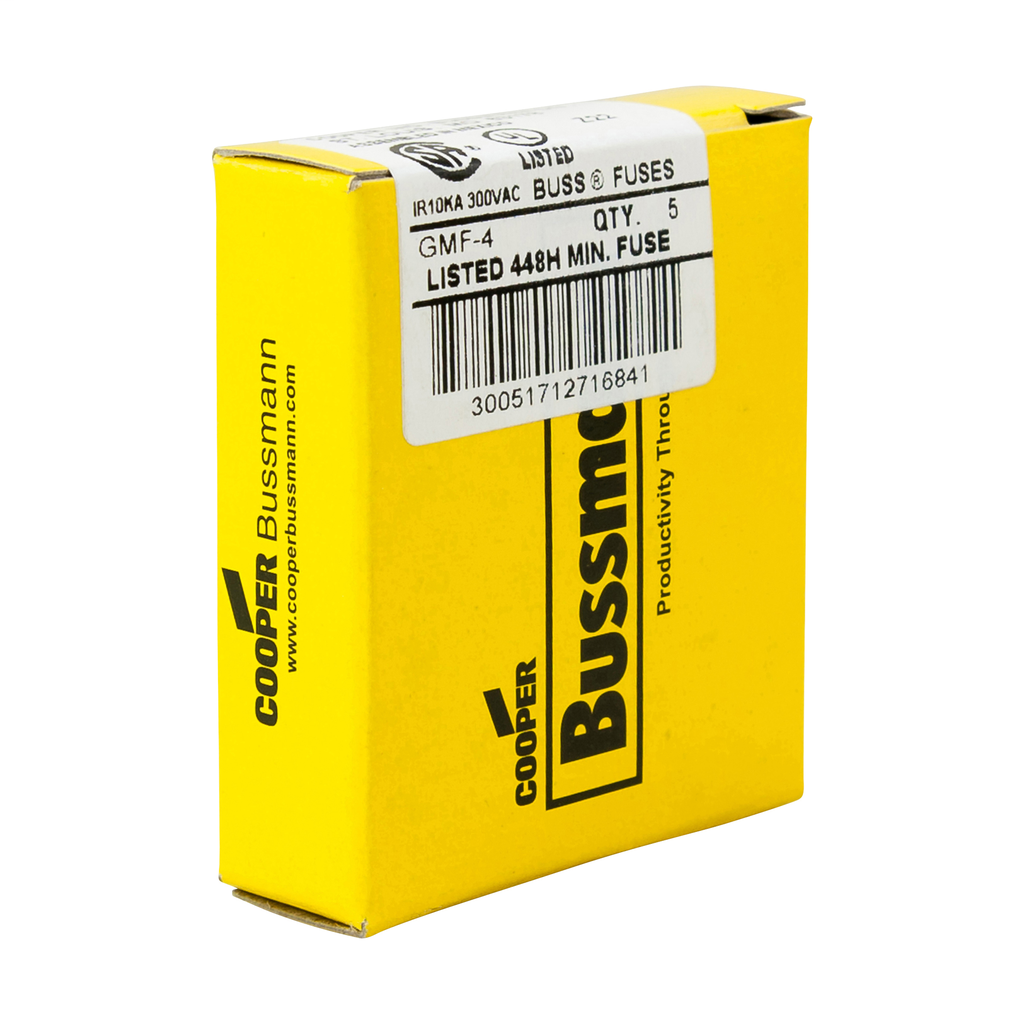

Bussmann GMF-4 GMF Series Fuse 4 Amp 300 VAC

Product Description

The BUSSMANN GMF-4 is a small dimension, slow blow fuse with a voltage of 300V and amperage of 4A. It is suitable for in-line lighting ballast protection. The fuse is CE, CSA C22.2, and UL 248-14 certified. It is a time-delay fuse, designed for use with HLR holders.

• Time Delay
• Voltage: 300 Volt
• Interrupt Rating: 10 kAIC

Product Highlights

The BUSSMANN GMF-4 fuse provides reliable time-delay protection in a compact size, ideal for various applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GMF-4
• Country of Origin: MX - Mexico

Technical Specifications

• Brand: Bussmann
• Class: Supplemental
• Voltage: 300
• Amperage: 4 Amp
• Diameter: 0.72 Inch
• Standard: CE,CSA C22.2,UL 248-14
• Applications: In-Line Lighting Ballast Protection
• Interrupt Rating: 10 kAIC
• MPN: GMF-4
• Series: GMF
• Part Number: GMF 046
• Mfg Cat No: GMF-4
• VAC: 300
• Amps: 4 amp
• Fuse Interrupt Rating: 10 kA
• Fuse Type: Time Delay Fuse
• Rated Voltage: 300V ac
• Fuse Amps: 4A
• Speed: Time-Delay
• AC Voltage Rating: 300V AC
• Visual Indication: Non-Indicating
• Interrupt Rating - AC: 10 kA
• Body Style: Cylindrical
• Body Material: Glass
• Equivalent Brand and Series: Bussmann GMF, Littelfuse LMF, Mersen SMF
• Compatible Fuse Block Series: HLR
• Fits Fuse Block Style: Nonrejection
• Item: Glass Fuse
• Element: Single
• Functionally Equal To: Littelfuse LMF, Mersen/Ferraz Shawmut SMF
• Equivalent Series: GMF, LMF, SMF
• Current: 4 A
• Overall Diameter: 5/8 in
• Overall Length: 2 1/4 in
• Brand / Manufacturer: BUSSMANN FUSES
• Amperage Rating: 4
• Catalog / Class: In-Line Fuse
