Bussmann GMF-2 Buss Small Dimension Fus 2 Amp

Product Description

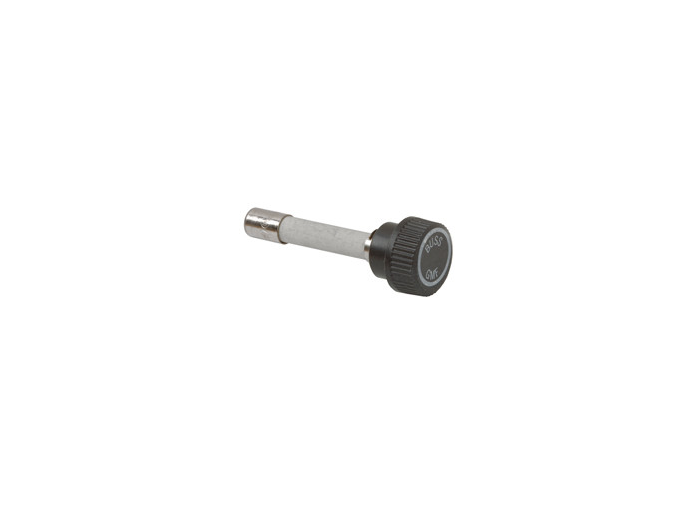

The BUSSMANN GMF-2 is a small dimension fuse designed for low voltage applications. This supplemental fuse is rated for 2 amps and 300 volts AC, with an interrupting rating of 10 kAIC. It is suitable for in-line lighting ballast protection and can be panel mounted.

• 2 Amp
• 300 Volts AC
• Time Delay

Product Highlights

The BUSSMANN GMF-2 fuse offers reliable circuit protection in a compact size, ideal for lighting and other electronic applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GMF-2
• Country of Origin: MX

Technical Specifications

• GTiN: 00051712716796
• Type: Electronic, Time Delay, Non Rejecting
• Brand: Bussmann
• Class: Supplemental
• Voltage: 300 Volt
• Amperage: 2 Amp
• Diameter: 0.72 Inch
• Standard: CE,CSA C22.2,UL 248-14
• Product UPC: 05171271679
• 12-Digit UPC: 051712716796
• Applications: In-Line Lighting Ballast Protection
• Mounting Type: Panel/Holder
• Interrupt Rating: 10 kAIC
• AC Voltage Rating: 300
• Speed: Time Delay, Slow Blow
• Interrupt Rating DC: 10 kA
• Alternate Catalog Number: GMF-2
• Amperage Rating: 2 A
• Body Type: Cylindrical
• Catalog Number: GMF-2
• Country of Origin: MX
• Element: Single
• Material: Glass
• Series: GMF
• Terminal Type: Ferrule
• UNSPSC: 39121609
• UPC 11: 05171271679
• UPC 12: 051712716796
• Voltage Rating: 300 VAC
• Brand / Manufacturer: BUSSMANN FUSES
• Manufacturer Part Number: GMF-2
• Manufacturer: Eaton's Bussmann series
• Product Series: GMF
• Family Series: Eaton's Bussmann series Fuses, GMF Series
• Description: FUSE, 2A
• Fuse Type: Supplementary (Midget)
• Current Rating: 2 A
• AC Voltage: 300 VAC
• Characteristic: Time Delay
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Cartridge
• Approvals: CE, CSA, UL
• Net Weight: 0.015 lbs
