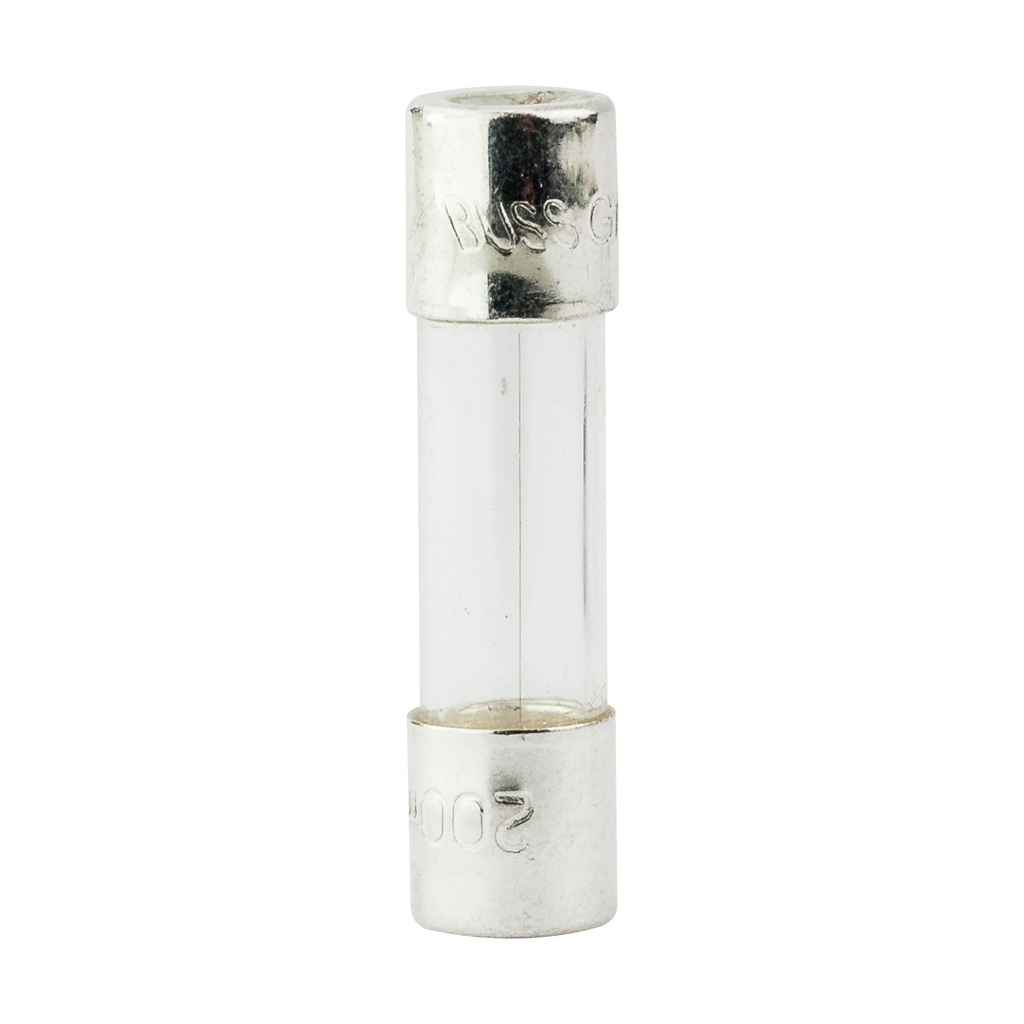

Bussmann GMA-200MA 200 mA 250 VAC Glass Tube Fast Acting Fuse

Product Description

The Bussmann GMA-200MA is a glass tube fast acting fuse designed to handle a maximum amperage of two hundred milliamps at a voltage rating of two hundred fifty volts. This fuse is ideal for protecting electronic circuits from overcurrent and shorts, ensuring the longevity and efficiency of electrical devices. It is constructed with a brass base and has a small yet effective size of five millimeters in diameter by twenty millimeters in length.

• Fast acting response with a maximum response time of two minutes at two hundred percent load.
• Compliance with CE, CSA, and UL 248-14 standards for safety.
• Ferrule end connections for easy installation in compatible circuits.

Product Highlights

This fuse is suitable for a range of electronic applications, providing reliable protection against overcurrent.

Product Information

Standard Information

• Brand: Bussmann
• Type: Electronic, Small Dimension

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 200 mA
• Size: 5 mm Diameter X 20 mm Length
• Material: Brass
• Interrupt Rating: 10 AIC
• Connection Type: Ferrule End X Ferrule End
• Applications: Electronic Circuits
• Response Time: 2 Min Maximum At 200%, 60 Min Maximum At 135%
