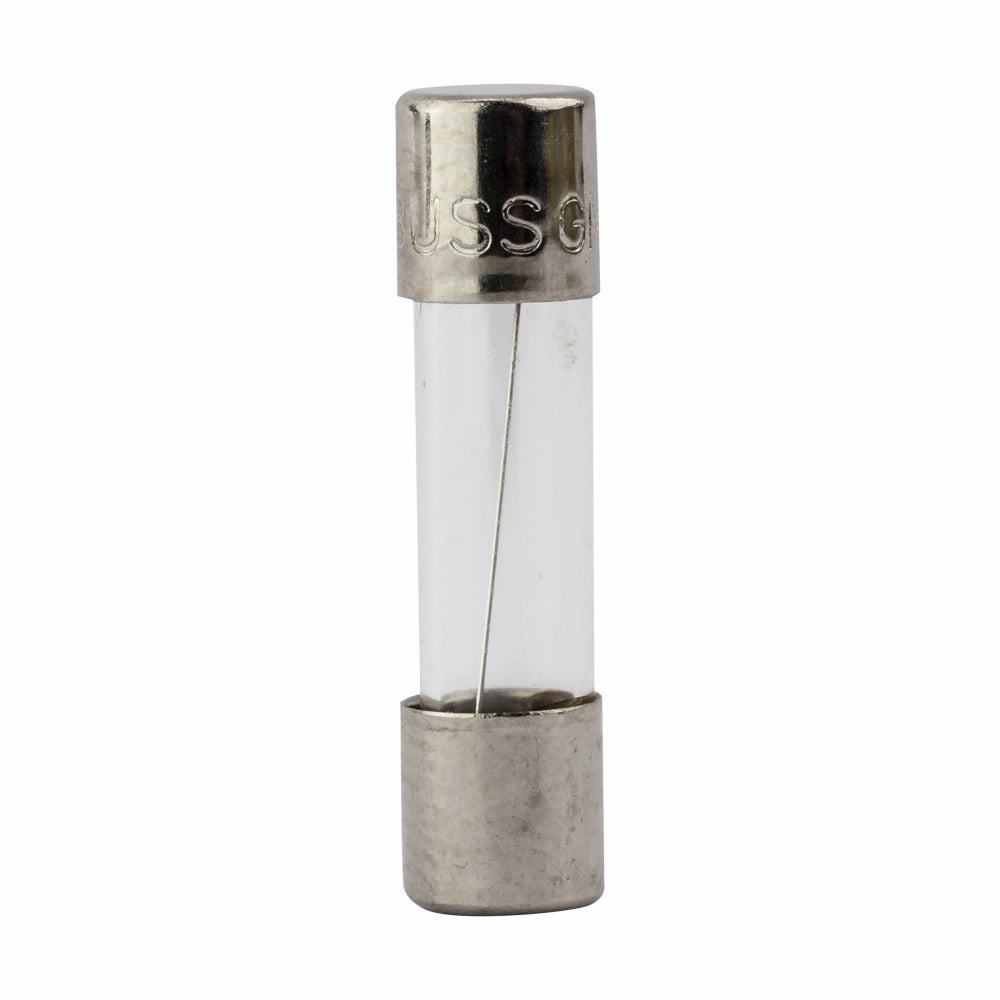

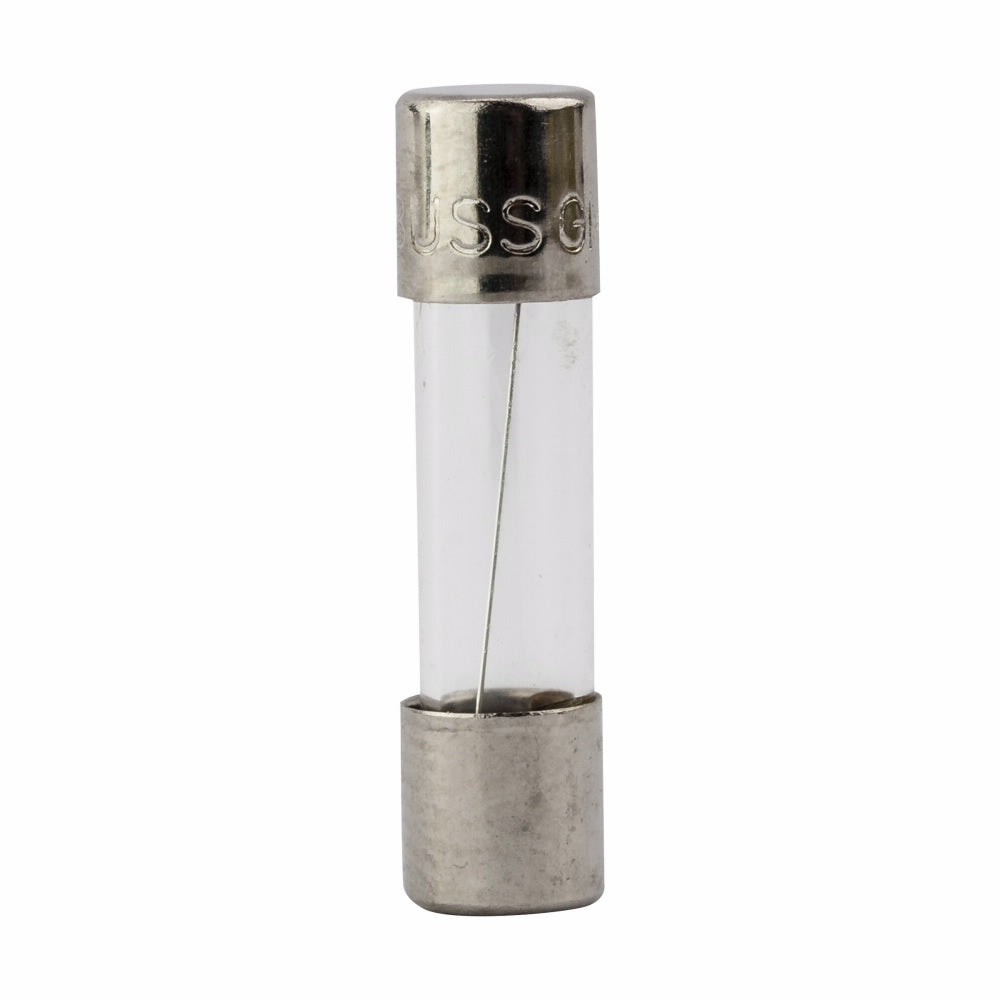

Bussmann GMA-15-R MINI FS Fast-Acting Fuse 15A 5Mm X 20Mm 2770222084

Product Description

The Bussmann GMA-15-R MINI FS is a fast-acting fuse ideal for protecting electrical circuits. With a rating of fifteen amperes at one hundred twenty-five volts alternating current and thirty-two volts direct current, this fuse is designed for reliable operation in various applications.

• Fast-acting fuse with a fifteen amp rating
• Dimensions of five millimeters in diameter and twenty millimeters in height
• Constructed from a glass tube with nickel-plated brass end caps

Product Highlights

This fuse meets safety standards and is suitable for use in industrial facilities and factory environments.

Product Information

Standard Information

• Brand: Bussmann
• UPC: 05171264787

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 Vac; 32 Vdc
• Interrupt Rating: 150 AIC at 125 Vac
• Response Time: 60 min at 135%; 2 min at 200%
• Dimensions: 0.7874 IN
• Material: Glass tube, Nickel-plated brass end cap
• Application: Safety and security systems in industrial facilities
• Standard: CE Marked, RoHS Compliant
