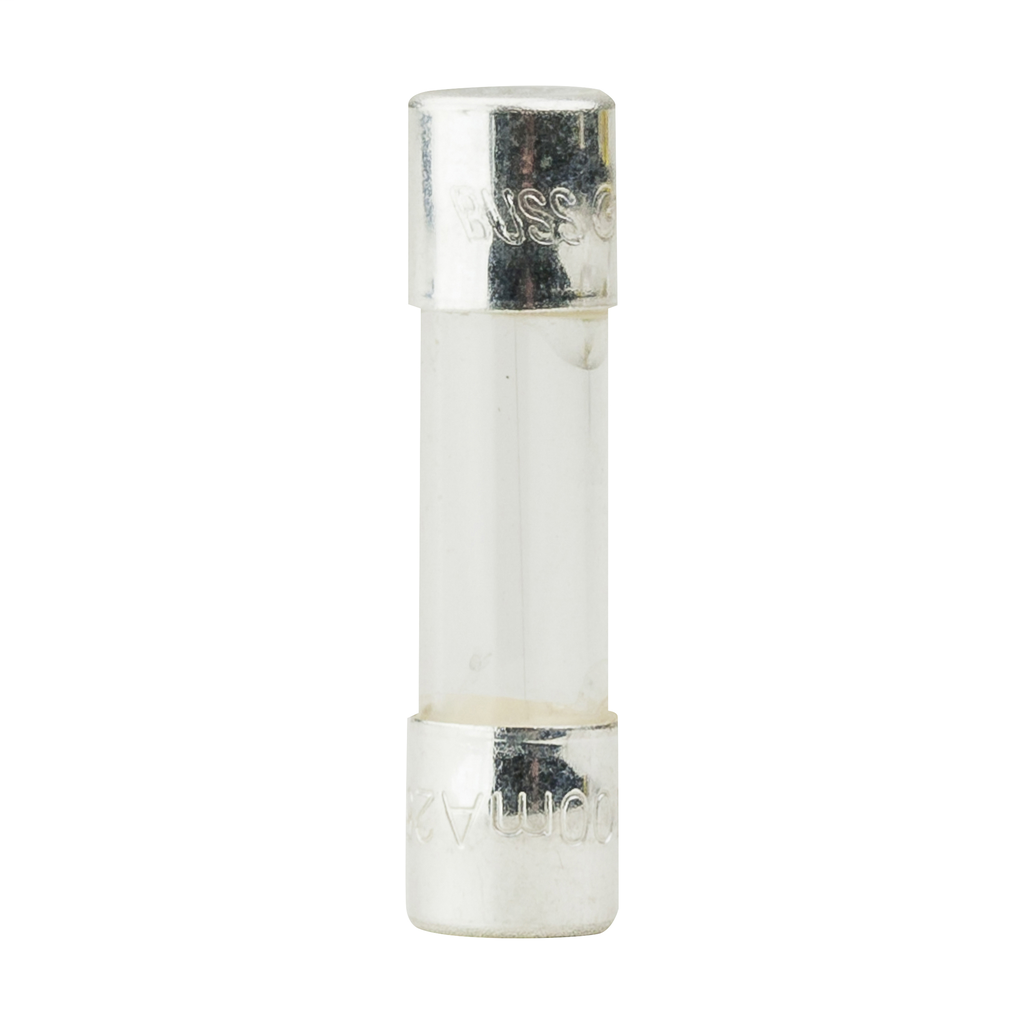

Bussmann GMA-100MA Glass Tube Fast Acting Fuse 100 mA 250 VAC

Product Description

The Bussmann GMA-100MA is a glass tube fast-acting fuse rated for one hundred milliamperes at two hundred fifty volts AC. This fuse is designed to protect electrical circuits by quickly interrupting the current flow in the event of an overload or fault. It is suitable for use in electronic circuits and operates under stringent safety standards.

• Fast-acting design for quick interruption of current
• Standard size of five millimeters by twenty millimeters
• Meets CE, CSA, and UL 248-14 standards

Product Highlights

This fuse is essential for the protection of electronic components and is widely used in various electronic circuits. Its small dimension is ideal for compact applications, ensuring that it fits in tight spaces while providing reliable performance.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: GMA-100MA
• Size: 5 mm Diameter x 20 mm Length
• Type: Electronic, Fast Acting
• Voltage Rating: 250 VAC
• Amperage Rating: 100 mA
• Material: Brass
• Response Time: 2 min maximum at 200%, 60 min maximum at 135%
• Connection Type: Ferrule End x Ferrule End
• Interrupt Rating: 10 kAIC
• Applications: Electronic Circuits
