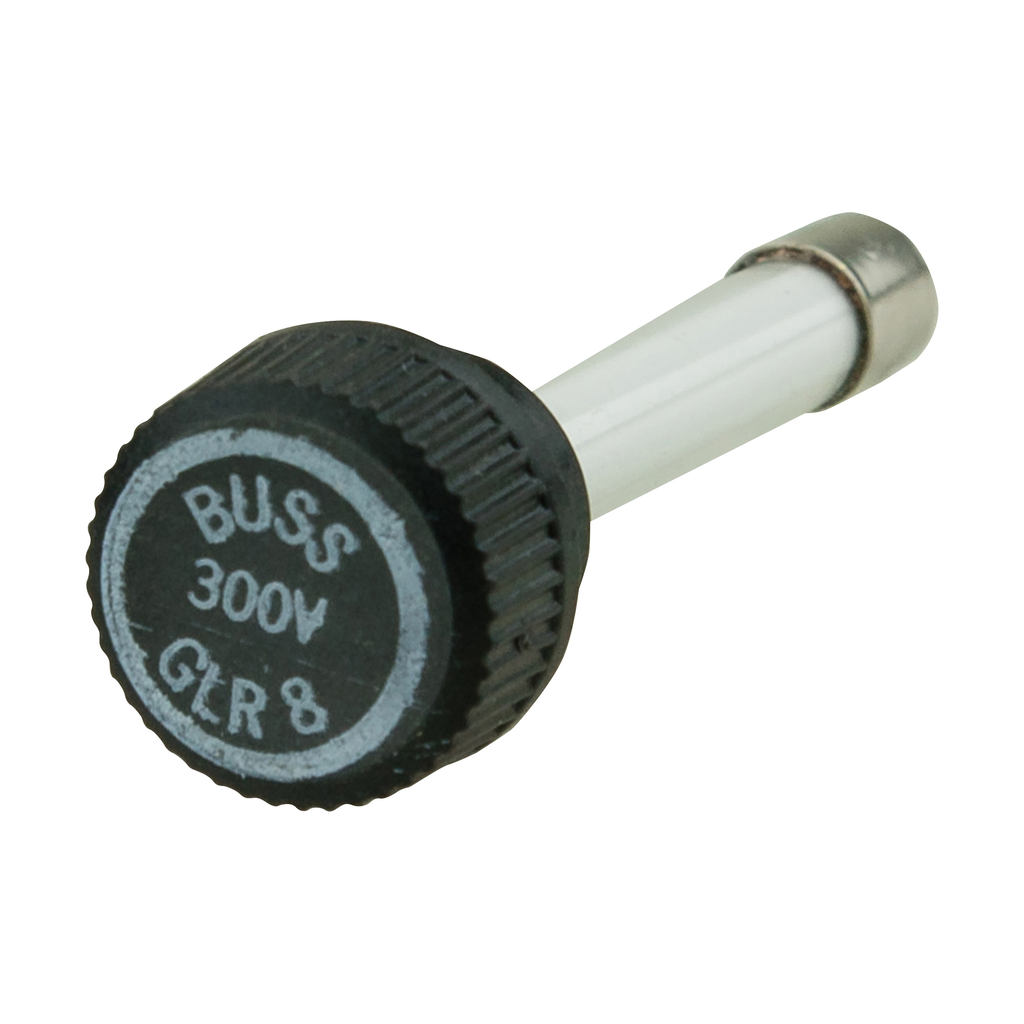

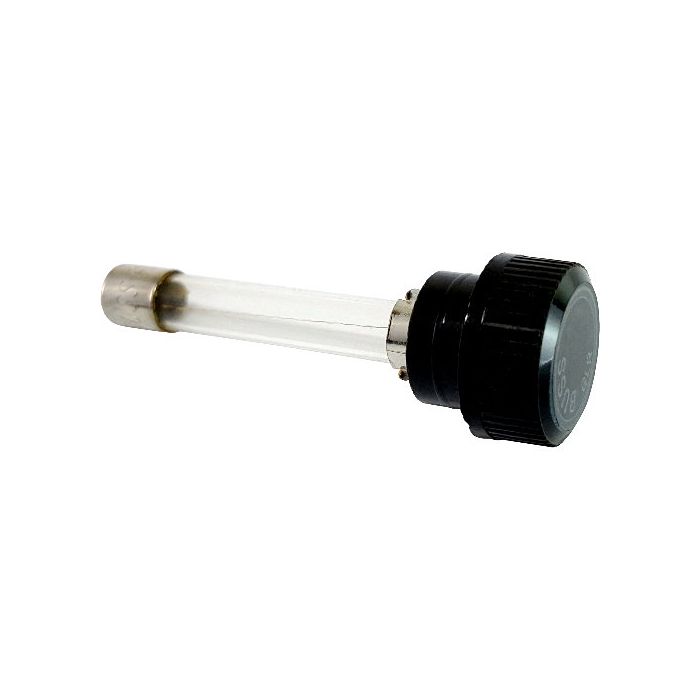

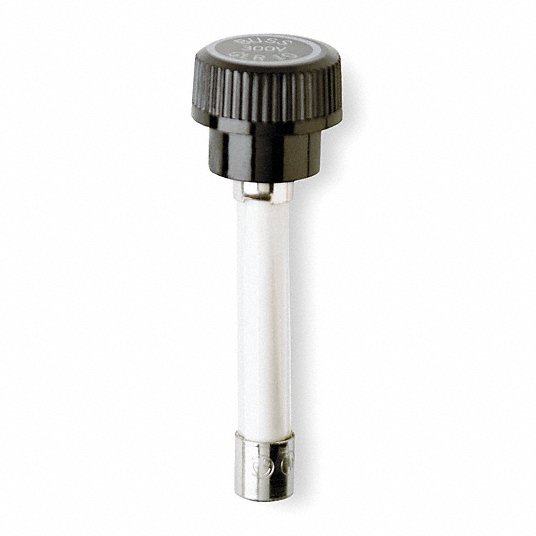

Bussmann GLR-8 Fuse 8 Amp 300V

Product Description

The BUSSMANN GLR-8 is a small dimension fuse designed for low voltage applications. This 8 Amp, 300 Volt AC specialty fuse is fast-acting and features a non-rejection style. It protects circuits from current spikes and is suitable for in-line lighting ballast protection. It is UL Listed and CSA Certified.

• 8 Amps
• 300 Volts AC
• Fast Acting

Product Highlights

The BUSSMANN GLR-8 fuse provides fast-acting protection against current spikes in various applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GLR-8
• Country of Origin: Mexico

Technical Specifications

• GTiN: 00051712716314
• Size: 0.72 In Diameter X 2.25 In Length
• Type: Low Voltage
• Brand: Bussmann
• Width: .72 in
• Height: 2-1/4 Inch
• Length: 0.72 Inch
• Weight: .2 lb
• Voltage: 300 Volt
• Amperage: 8 Amp
• Diameter: 0.72 Inch
• Product UPC: 05171271631
• 12-Digit UPC: 051712716314
• Applications: In-Line Lighting Ballast Protection
• Mounting Type: Panel
• Interrupt Rating: 23 kAIC
• AC Voltage Rating: 300 V
• Interrupting Rating: 10,000 AIC
• UL Listed: Std. 248-14, Guide JDYX, File E19180
• CSA Certified: Class 1422-01, File 53787
• Series: GLR
• AC: AC
• Body Material: Glass
• Body Style: Cylindrical
• Cap Diameter: 5/8 in
• Compatible Fuse Block Series: HLR
• Current Rating: 8 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 5/8 in
• Overall Length: 2-1/4 in
• Speed: Fast-Acting
• Standards: CE; CSA Certification Class 1422-01; UL 248-14 Guide JDYX
• Visual Indication: Glass
• Fuse: Fuse
• Display Qty: 1
• Display Sell UOM: EA
• UNSPSC: 39121611
• Part #: 31A32488
• Package Quantity: 1
• Weight (lbs): 0.5000
• MPN: INDUSTRIAL SPARE
• Condition: New – Open box
• Category: Business & Industrial\nElectrical Equipment & Supplies\nFuses\nFuses & Links
• Country of Origin: United States
