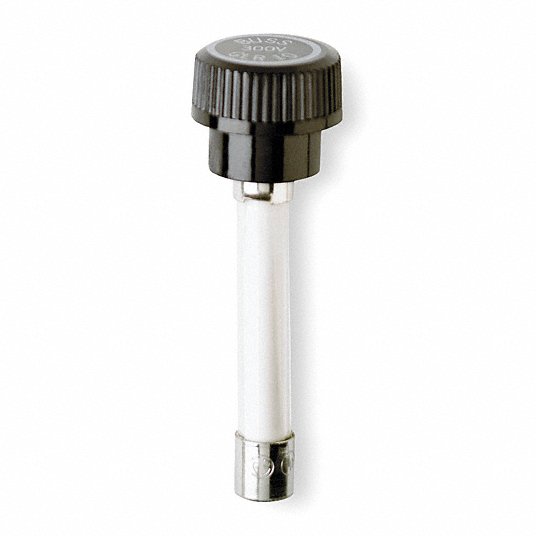

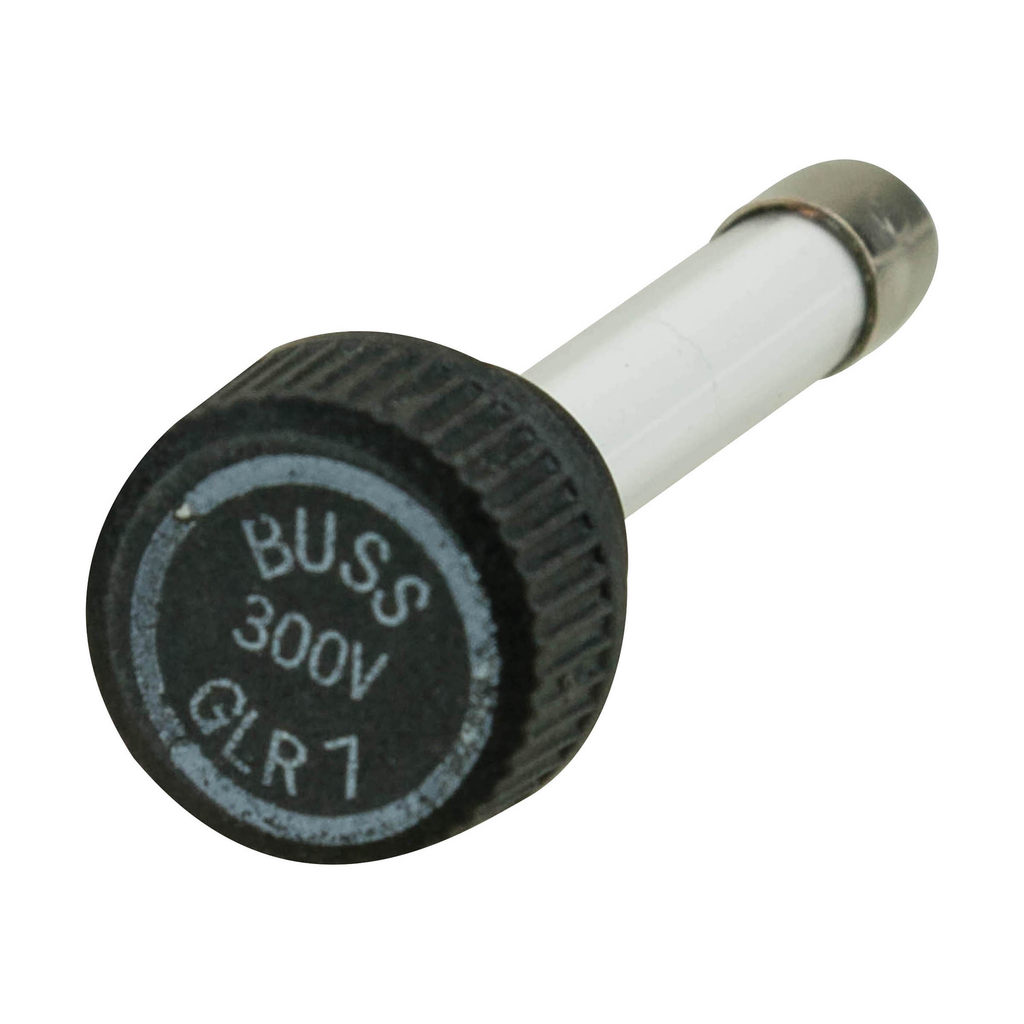

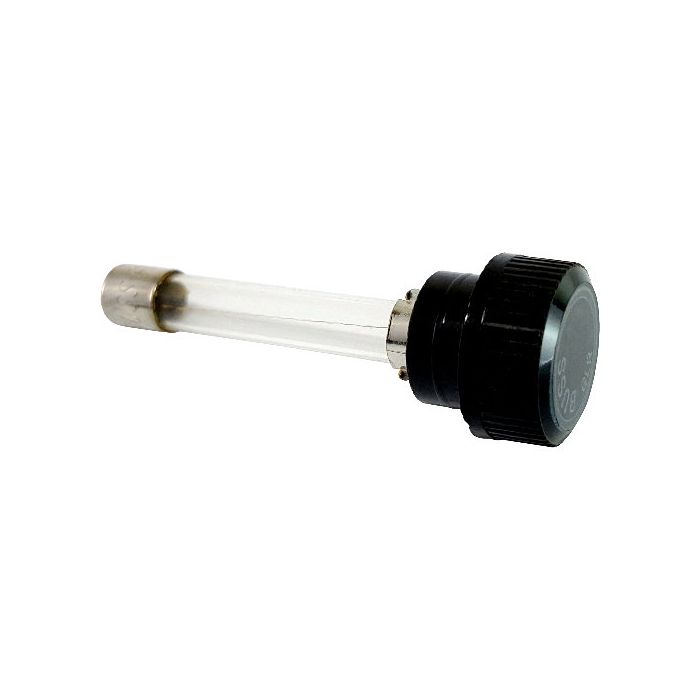

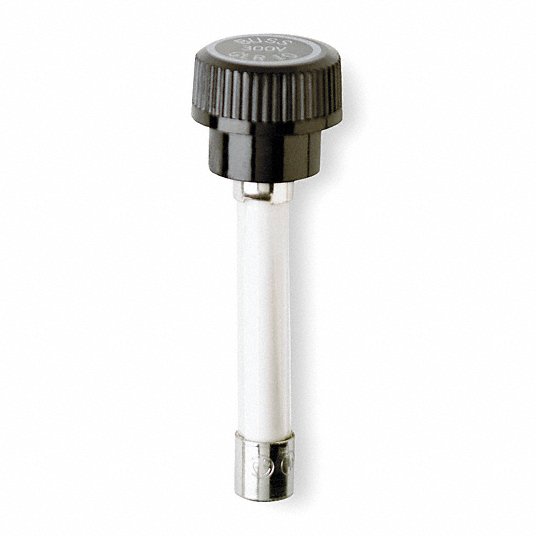

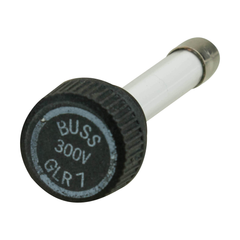

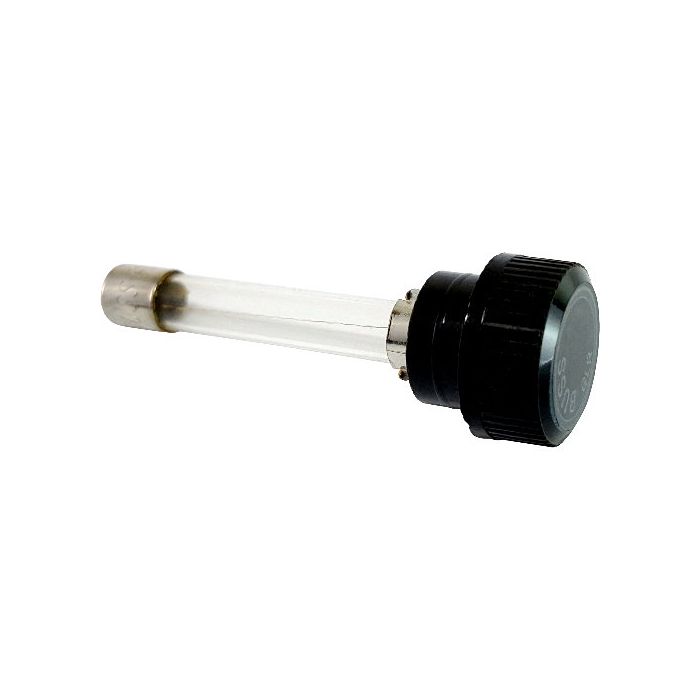

Bussmann GLR-7 Series GLR-7 7 Amp 300 VAC

Product Description

The BUSSMANN GLR-7 is a 7 Amp 300 VAC small dimension fast acting fuse. This low voltage supplemental fuse is designed for in-line lighting ballast protection. It is CE, CSA C22.2, and UL 248-14 certified, ensuring compliance with safety standards.

• Fast Acting
• Voltage: 300 Volt
• Interrupt Rating: 100 AIC

Product Highlights

The BUSSMANN GLR-7 fuse provides reliable and fast-acting circuit protection for various applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GLR-7
• Country of Origin: United States

Technical Specifications

• Brand: Bussmann
• Class: Supplemental
• Voltage: 300 Volt
• Amperage: 7 Amp
• Diameter: 0.72 Inch
• Standard: CE,CSA C22.2,UL 248-14
• Applications: In-Line Lighting Ballast Protection
• Interrupt Rating: 100 AIC
• AC Voltage Rating: 300 V
• Interrupting Rating: 10,000 AIC
• Manufacturer Part Number: GLR-7
• Body Material: Glass
• Body Style: Cylindrical
• Current Rating: 7 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Interrupt Rating - AC: 10 kA
• Speed: Fast-Acting
• Standards: CE; CSA Certification Class 1422-01; UL 248-14 Guide JDYX
• Fuse Type: Cartridge
• Current Rating (Amps): 7A
• MPN: GLR-7
• Country of Origin: United States
• Package Quantity: 1
• Series: GLR
• Approval Agency: CSA, UL
• Breaking Capacity @ Rated Voltage: 10kA
• Requires Holder: Requires Holder
• Package / Case: Cartridge, Non-Standard
• Voltage Rating - AC: 300 VAC
• Response Time: Fast Blow
