Bussmann GLR-5 Fast Acting Fuse 5 Amp

Product Description

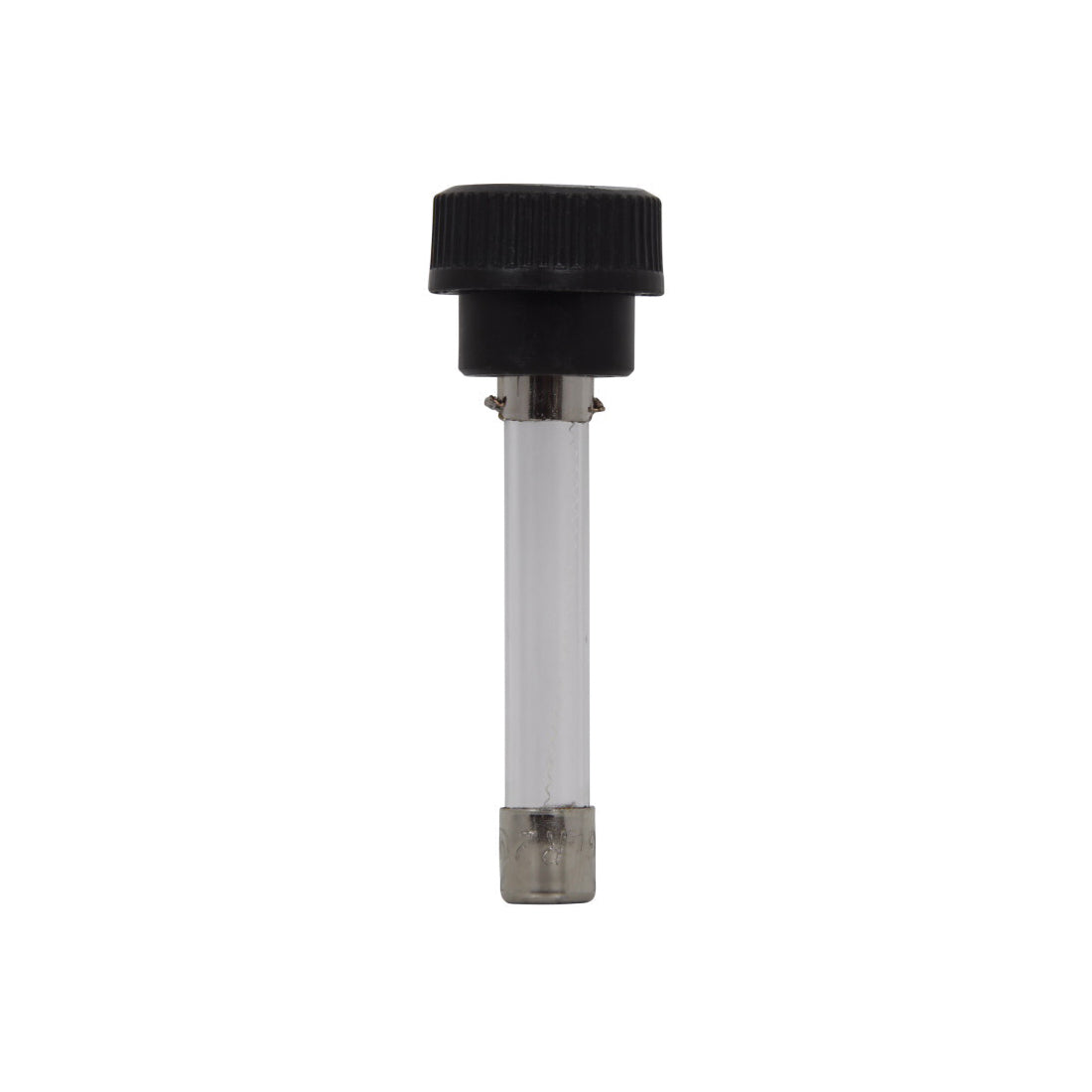

The BUSSMANN GLR-5 is a small dimension, fast-acting fuse designed for in-line lighting ballast protection. This supplemental fuse offers reliable circuit protection. It has a voltage rating of 300V and an amperage of 5A. The fuse is CE, CSA C22.2, and UL 248-14 certified.

• Fast Acting
• Small Dimension
• Non-Rejecting

Product Highlights

The Bussmann GLR-5 fuse provides fast-acting, supplemental protection for low voltage applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GLR-5
• Country of Origin: MX - Mexico

Technical Specifications

• Brand: Bussmann
• Class: Supplemental
• Voltage: 300 Volt
• Amperage: 5 Amp
• Diameter: 0.72 Inch
• Standard: CE,CSA C22.2,UL 248-14
• Applications: In-Line Lighting Ballast Protection
• Interrupt Rating: 20 kAIC
• Voltage Rating: 300 VAC
• Ampere: 5 A
• Speed: Fast Blow
• Approvals: UL, CSA
• Fuse Interrupt Rating: 10 kA at 300V ac
• Fuse Type: Non Rejecting Fast Acting Fuse
• Fuse Amps: 5A
• Body Style: Cylindrical
• Element: Single
• Material: Glass
