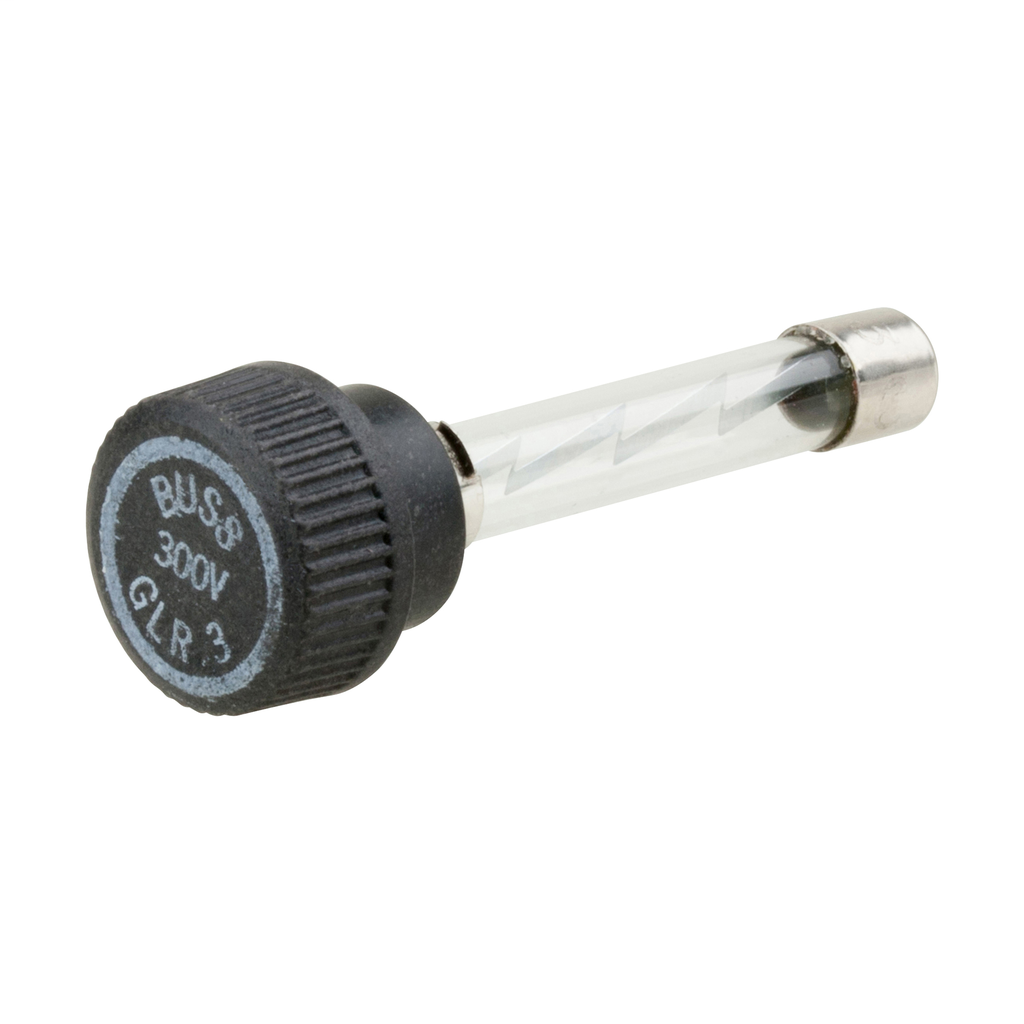

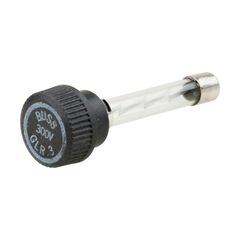

Bussmann GLR-3 Fuse, 3A, Glr, 300Vac

Product Description

The BUSSMANN GLR-3 fuse is rated to 3A, 300Vac. This fast-acting low voltage small dimension fuse provides supplemental protection. It is suitable for in-line lighting ballast protection and can be panel mounted with a separate steel clip. The GLR fuse and knob are an integral 1-piece unit.

• 3 Amp
• Integral Fuse and Holder Knob
• 300V

Product Highlights

The Bussmann GLR-3 fuse offers reliable overcurrent protection with a fast-acting response. It is suitable for a range of industrial and commercial applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GLR-3

Technical Specifications

• Voltage: 300 Volts
• Material: Glass
• AC Adapter Current: 3 Amps
• National Stock Number: 5920-00-573-7512
• Mounting Type: Panel/Holder
• Specification Met: Csa,iec,iso,nema
• GTiN: 00051712716260
• Type: Fast Acting Low Voltage Small Dimension
• Brand: Bussmann
• Class: Supplemental
• Amperage: 3 Amp
• Diameter: 0.72 Inch
• Standard: CE,CSA C22.2,UL 248-14
• Product UPC: 05171271626
• 12-Digit UPC: 051712716260
• Applications: In-Line Lighting Ballast Protection
• Interrupt Rating: 10 kA
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Series: GLR
• Terminal Type: Wire
• Amperage Rating: 3 A
• Voltage Rating: 300 VAC
• Body Type: Cylindrical
• IGCC: 4905
• Mounting: Panel
• Application: In-Line Lighting Ballast Protection
• Manufacturer: BUSSMANN
• Special Features: Interrupt Rating 10 kA; Material Glass Tube
• Category: Circuit Protection
• Fuse Type: Cartridge
• Current Rating (Amps): 3A
• Response Time: Fast Blow
• Approval Agency: CE, CSA, UL
• Breaking Capacity @ Rated Voltage: 10kA
• Package / Case: Cartridge, Non-Standard
