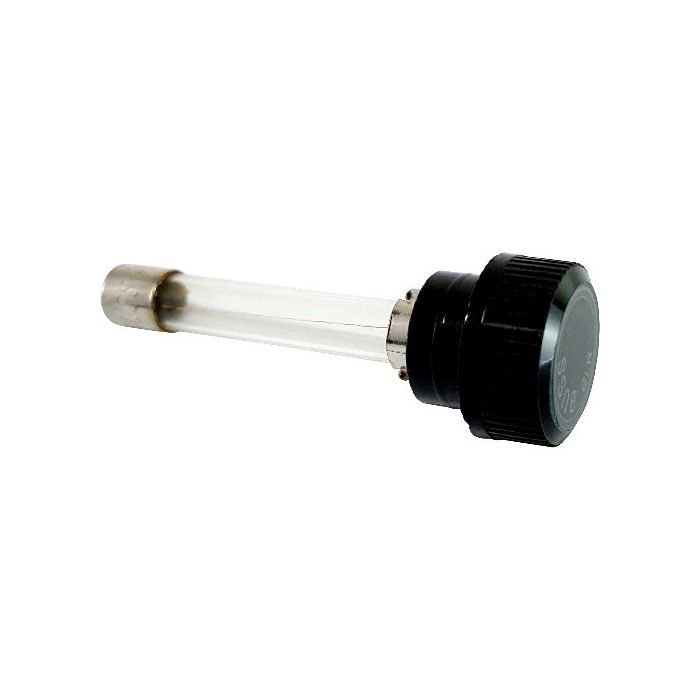

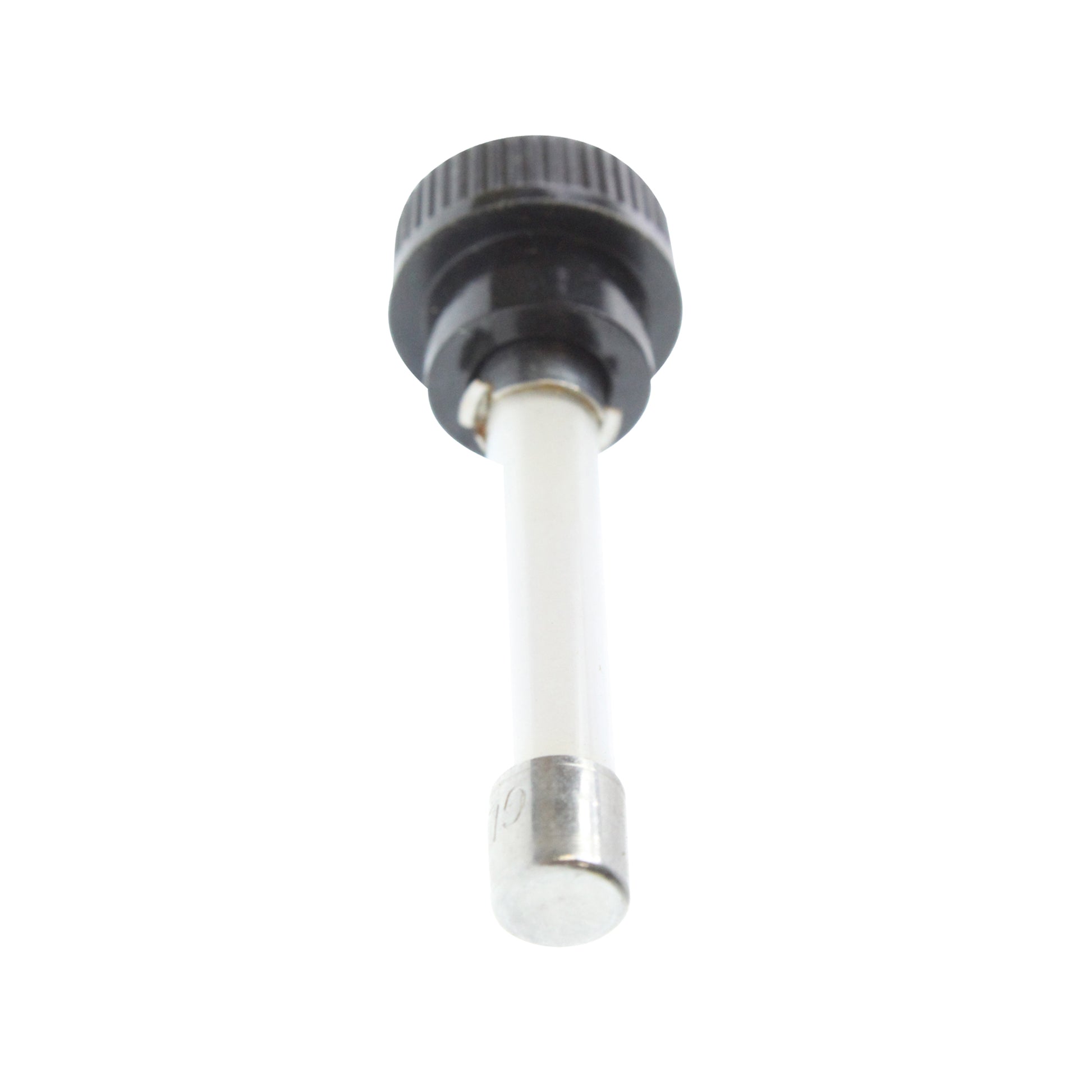

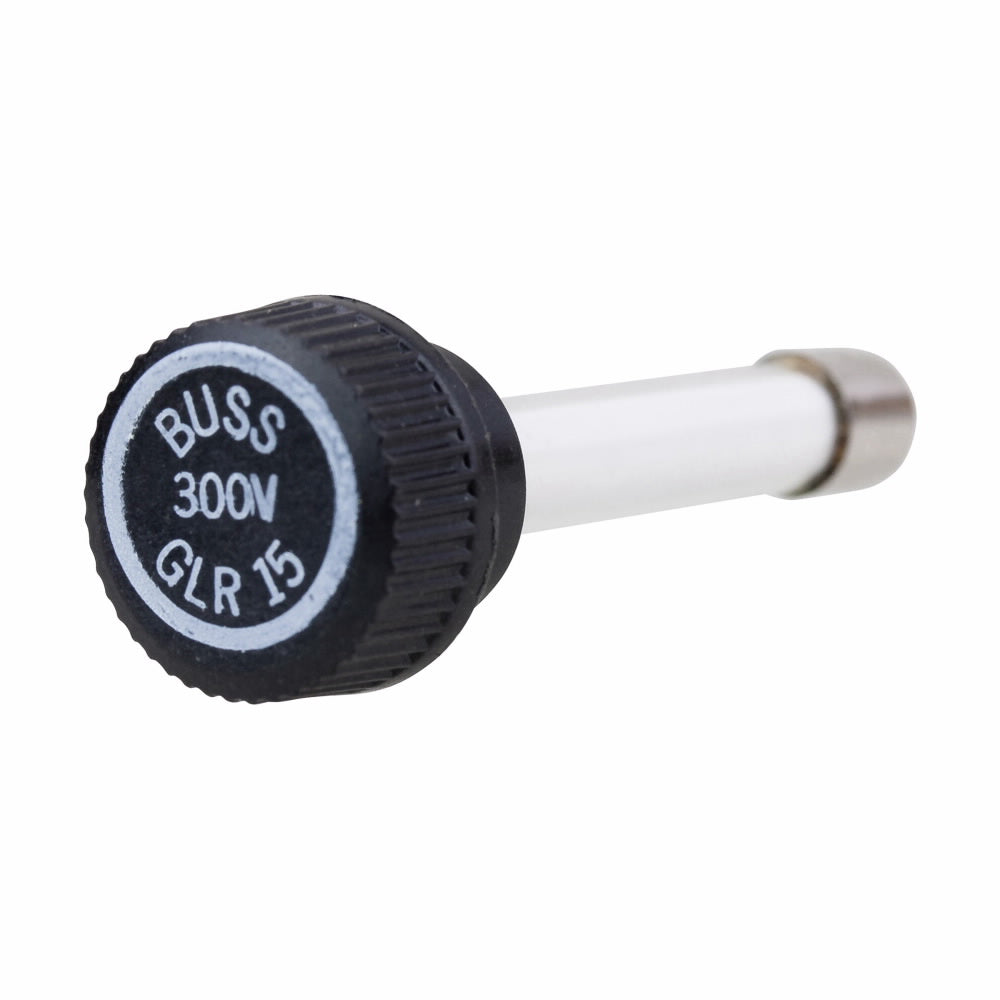

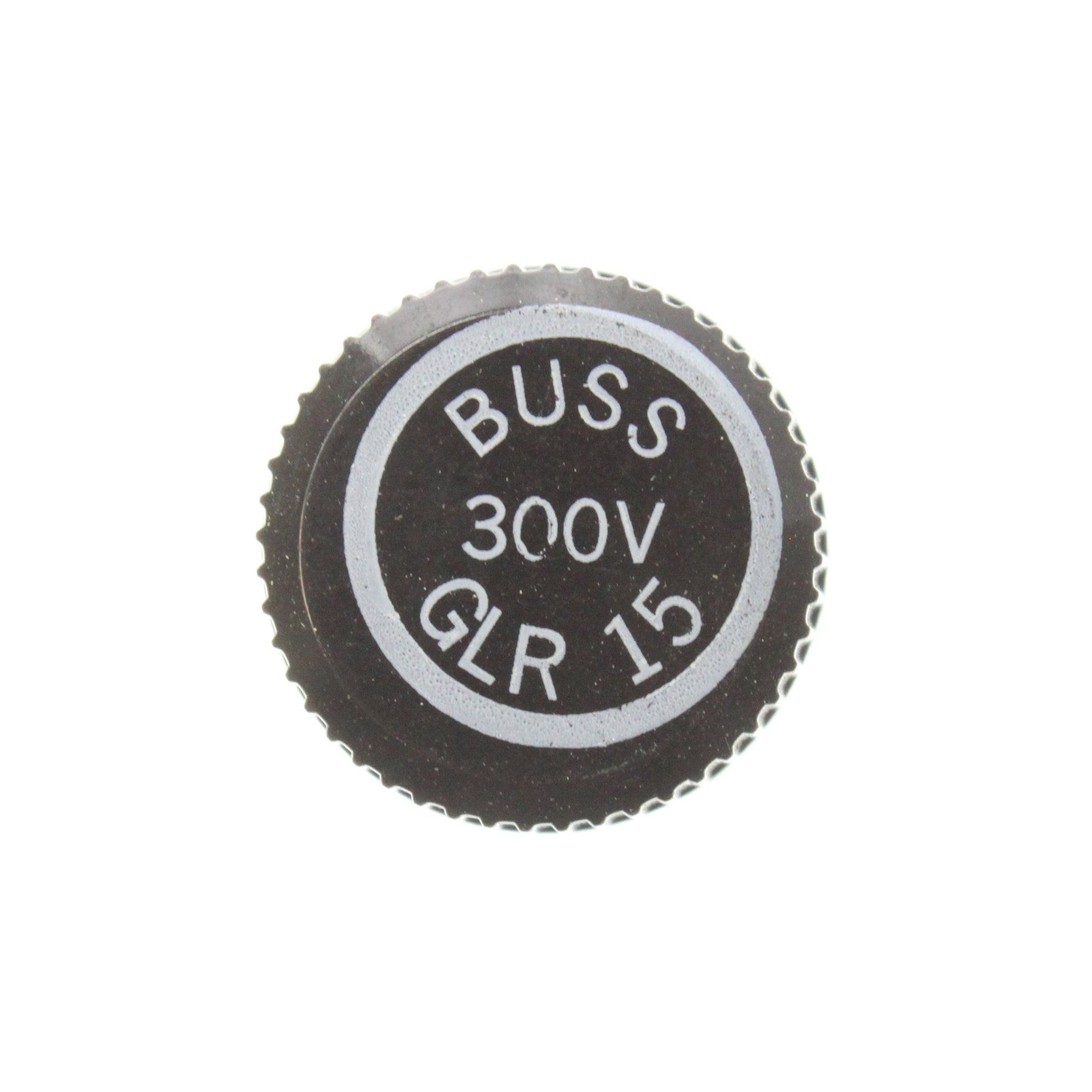

Bussmann GLR-15 Series Small Dimension Fast Acting Fuse 15 Amp

Product Description

The BUSSMANN GLR-15 series small dimension fast-acting fuse with integrated insulating caps combines an insulating cap with the fuse body to act as an in-line fuse. It protects circuits from current spikes. This low voltage fuse has a voltage rating of 300V and an interrupt rating of 15kAIC.

• Fast-Acting
• Integrated insulating caps
• Protects circuit from current spikes

Product Highlights

The BUSSMANN GLR-15 is a fast-acting fuse with integrated insulating caps that protect circuits from current spikes.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GLR-15
• Country of Origin: Mexico

Technical Specifications

• Amperage: 15
• Applications: In-Line Lighting Ballast Protection
• Interrupt Rating: 15 kAIC
• Mounting Type: Panel
• Standard: CE,UL 248-14
• Type: Low Voltage
• Voltage: 300 Volt
• Brand: Bussmann
• Class: Supplemental
• Diameter: 0.72 Inch
• Series: GLR
• Manufacturer Part Number: GLR-15
• AC Voltage Rating: 300 V
• Body Material: Glass
• Body Style: Cylindrical
• Cap Diameter: 5/8 in
• Compatible Fuse Block Series: HLR
• Current Rating: 15 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 5/8 in
• Overall Length: 2-1/4 in
• Speed: Fast-Acting
• Standards: C22.2 No. 248.14; CE; CSA Certified; UL 248-14 Guide JDYX
• Visual Indication: Glass
• Model: GLR-15
• Package quantity: 1
• VWA: 300-Volt 15-Amps
• Interrupting Rating: 10,000 AIC
• UL Listed: Std. 248-14, Guide JDYX, File E19180
• CSA Certified: Class 1422-01, File 53787
• Country of Origin: Mexico
