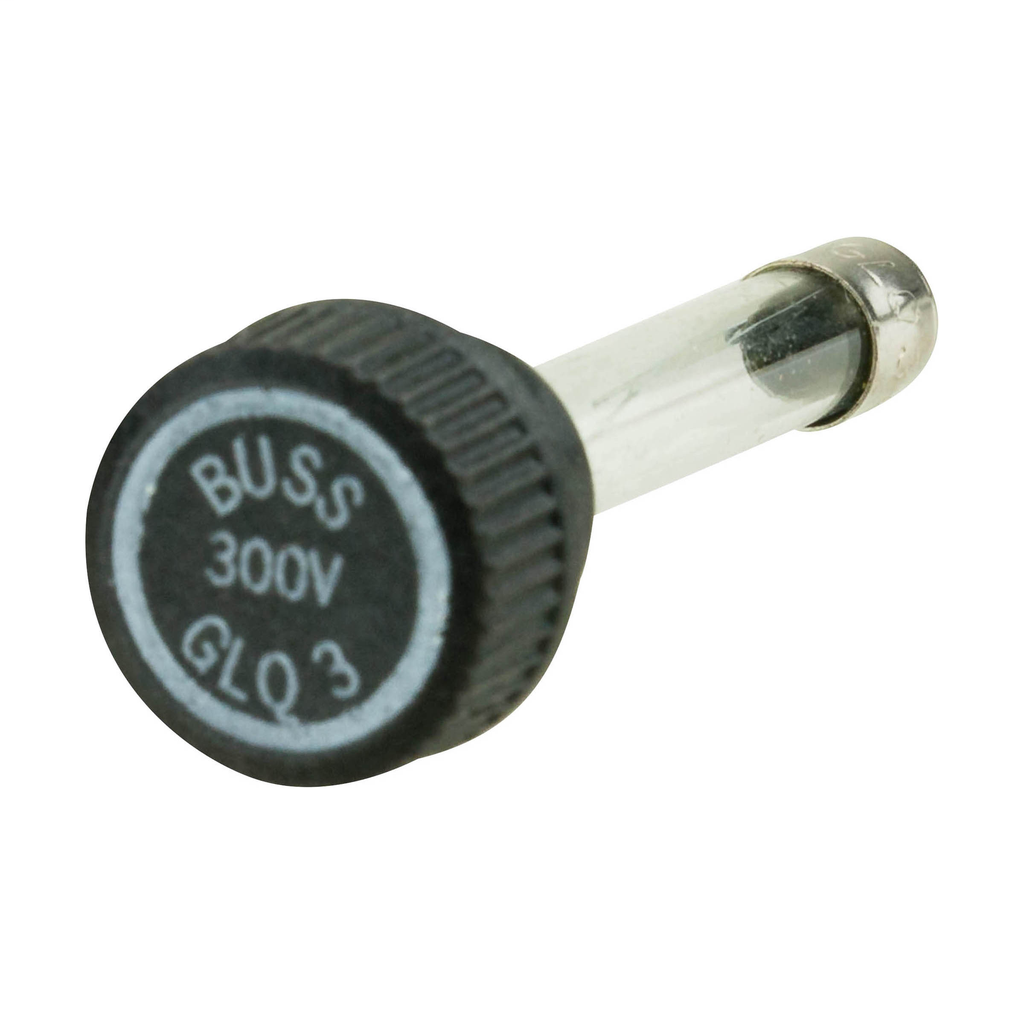

Bussmann GLQ-3 Fuse 3 Amp 300 VAC (0.72 In Diameter X 2.25 In Length)

Product Description

The BUSSMANN GLQ-3 is a 3 Amp, 300 VAC small dimension fast-acting fuse. It is designed for in-line lighting ballast protection. The fuse is fast-acting and ideal for electrical and industrial applications requiring a quick response to overcurrent conditions. It requires a holder for mounting.

• Fast Acting
• Small Dimension
• Low Voltage

Product Highlights

Fast-acting fuse with a cylindrical body, designed for lighting ballast protection and industrial applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: GLQ-3
• Country of Origin: Mexico

Technical Specifications

• Size: 0.72 In Diameter X 2.25 In Length
• Type: Low Voltage
• Brand: Bussmann
• Voltage: 300 Volt
• Amperage: 3 Amp
• Diameter: 0.72 Inch
• Standard: CE,CSA C22.2,UL 248-14
• Applications: In-Line Lighting Ballast Protection
• Interrupt Rating: 10 kAIC
• Category: Circuit Protection
• Voltage Rating - AC: 300 VAC
• Manufacturer: Eaton - Electronics Division
• Response Time: Fast Blow
• Series: GLQ
• Packaging: Bulk
• Approval Agency: CSA, UL
• Breaking Capacity @ Rated Voltage: 10kA
• Package / Case: Cartridge, Non-Standard
• Fuse Type: Cartridge
• Size / Dimension: 0.626" Dia x 2.250" L (15.90mm x 57.15mm)
• Current Rating (Amps): 3A
• Material: Glass
• Body Style: Cylindrical
• Element: Single
• Standard & Approvals: CE Certified, UL 248-14, Guide JDYX, File No. E19180, CSA C22.2 No. 248.14, Class 1422-01, File No. 53787, RoHS Compliant
• Class: Supplemental
• Body Size: 5/8 in Dia x 2-1/4 in L
• Application: For in-line lighting ballast protection
• AC Voltage Rating: 300 V
• Body Material: Glass
• Cap Diameter: 5/8 in
• Compatible Fuse Block Series: HLQ
• Current Rating: 3 A
• Fits Fuse Block Style: Rejection
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 5/8 in
• Overall Length: 2-1/4 in
• Speed: Fast-Acting
• Standards: CE; CSA Certification Class 1422-01; UL 248-14 Guide JDYX
• Visual Indication: Glass
• UNSPSC: 39121607
• MPN: GLQ3
• Current Type: AC
• Mounting Style: Cable
• Number of Phases: 1
• Model: GLQ-3
• Amps: 3A
• Item: Glass Fuse
• Mounting: Panel
• Current: 3 A
