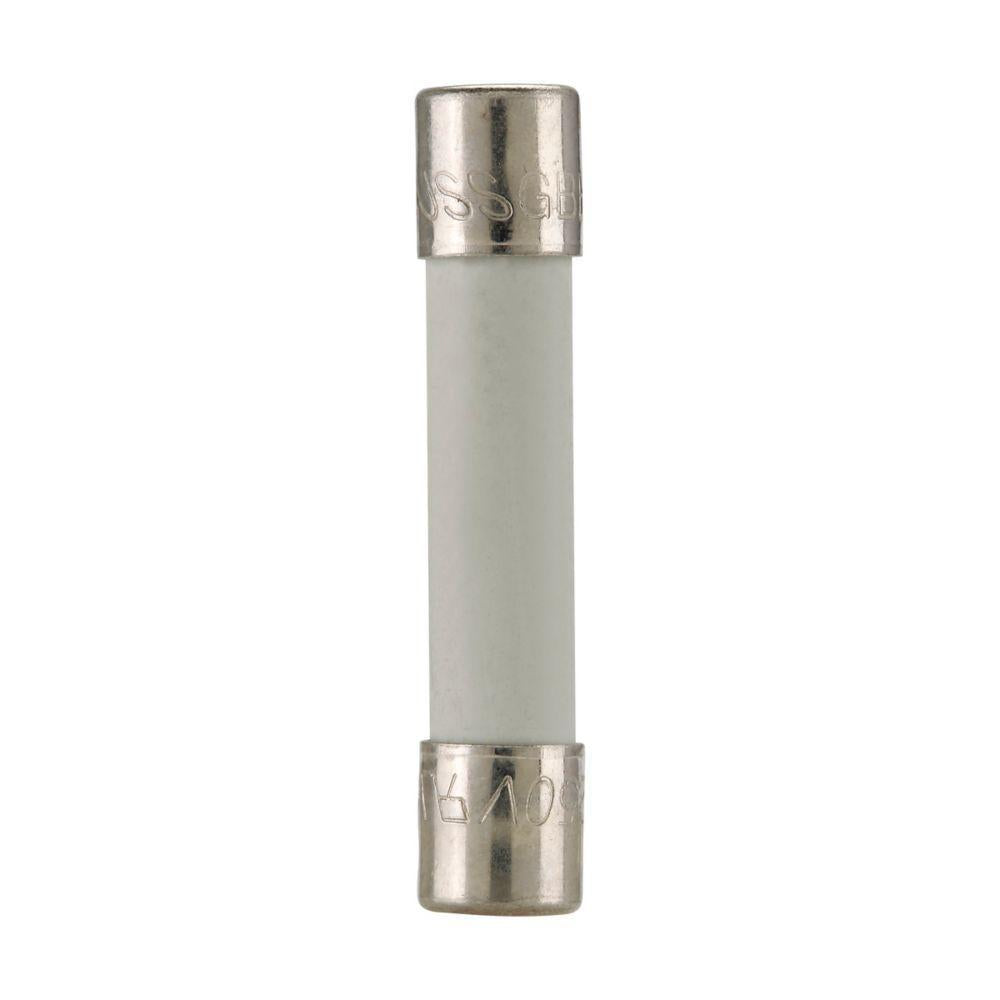

EATON Bussmann GBB-2-R Very Fast Acting Fuse 2 A
EATON Bussmann GBB-2-R Very Fast Acting Fuse 2 A
EATON Bussmann GBB-2-R Very Fast Acting Fuse 2 A
EATON Bussmann GBB-2-R Very Fast Acting Fuse 2 A

Bussmann GBB-2-R Very Fast Acting Fuse 2 A

EATON
Brand: EATON
SKU: GBB-2-R
Availability: In Stock

Ships same day if ordered by 12 pm
$25.63
$25.63
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BUSSMANN GBB-2-R is a very fast-acting fuse designed for electronic circuit applications. It features a ceramic tube and nickel-plated brass end cap construction. This fuse provides protection for sensitive electronic circuitry with its very fast-acting performance. It has a voltage rating of 250 VAC/125 VDC.

  • Very fast-acting performance allows protection of highly sensitive electronic circuitry
  • Nickel-plated brass endcap construction
  • 2 min maximum at 150%, 1 sec maximum at 200%

Product Highlights

The BUSSMANN GBB-2-R fuse offers very fast-acting performance and is ideal for protecting sensitive electronic circuits.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: GBB-2-R
Technical Specifications
Product Name
Eaton Bussmann series very fast-acting fuse
Catalog Number
GBB-2-R
UPC
051712549912
EAN
5027590246682
Product Height
32 mm
Product Diameter
6 mm
Compliances
CE Marked RoHS Compliant
Global Catalog
GBB-2-R
Product Type
Very fast-acting fuse
Amperage Rating
2 A
Resistance
0.0662 ohms DC cold
Voltage drop
0.1687 mV typical
Interrupt rating
200 AIC at 250 Vac 10 kAIC at 125 Vac/dc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
2 min at 150%, 1 sec at 250%
Material
Ceramic
Voltage rating
250 Vac, 125 Vdc
Type
Electronic
Application
Electronic circuits
Mounting Type
Holder
Body Size
1/4 in Dia x 1-1/4 in L
Body Style
Cylindrical
Element
Single
Standard & Approvals
CSA Class 1422-30, UL Guide No. JFHR2, File No. E56412, File No. 53787, CE Marked, RoHS Complaint
Terminal Type
Ferrule
Brand / Manufacturer
BUSSMANN FUSES
Voltage
250
Series
GBB
Catalog / Class
Semiconductor
Speed
VERY FAST ACTING
SKU
GBB-2-R
Brand
Bussmann
Part Number #
GBB-2-R
SKU #
2261730
UNSPSC
39121611
Volts DC
125
Volts AC
250
Amps
2
Mounting
Cartridge
Interrupt Rating AC
10 kA
Length
1 1/4 in
