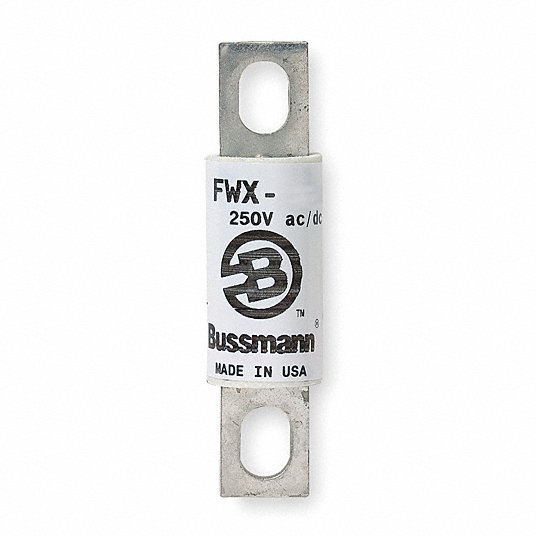

Bussmann FWX-60A BUSS High Speed Fuse 60A

Product Description

The BUSSMANN FWX-60A is a high-speed fuse designed for semiconductor protection. This 60A fuse is fast-acting and ideal for safeguarding current-sensitive equipment. It features a ceramic body and bolt-on design for secure mounting. Commonly used in various applications requiring rapid response to current changes.

• Fast-acting for sensitive current protection
• Bolt-on design for secure mounting
• Ceramic body material

Product Highlights

High-speed fuse with a ceramic body and bolt-on design, ideal for protecting sensitive equipment.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FWX-60A
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series FWX high speed fuse
• Catalog Number: FWX-60A
• UPC: 051712150590
• Product Length/Depth: 3.44 in
• Product Height: 0.89 in
• Product Width: 0.91 in
• Product Type: High speed fuse
• Amperage Rating: 60A RMS
• Interrupt rating: 50 kAIC at 250 Vdc 200 kAIC Vac
• Voltage rating: 600 V
• Watt losses: 8.1 W
• Packaging type: Standard
• Connection: Blade end x blade end
• Fuse indicator: Non Indicating
• Mounting method: Stud
• Material: Ceramic
• Maximum Current: 60 Amps
• Mounting Type: Through-Hole Mount
• Specification Met: CSA, RoHS
• Series: FWX
• AC Voltage Rating: 250 V
• Body Material: Ceramic
• Compatible Fuse Block Series: 1BS
• Current Rating: 60
• DC Voltage Rating: 250 V
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Bolt-On
• Fuse Diameter x Length: 13/16 in x 3-3/16 in
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 20 kA
• Overall Diameter: 13/16 in
• Overall Length: 3-3/16 in
• Speed: Fast-Acting
• Standards: CE; CSA Certified; UL Recognized
• Visual Indication: Non-Indicating
• UNSPSC: 39121612
• Volts DC: 250
• Volts AC: 250
• Amps: 60
• Mounting: Bolt On
• Interrupt Rating DC: 50 kA
• Interrupt Rating AC: 200 kA
• Class: aR
