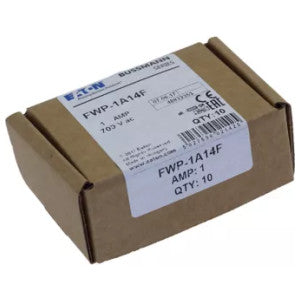

Bussmann FWP-1A14F High Speed Fuse 1A (14 x 51 mm)

Product Description

The Eaton BUSSMANN FWP-1A14F is a high-speed fuse designed for the protection of AC and DC drives, power converters/rectifiers, and variable speed drives. It has a voltage rating of 700V and an amperage rating of 1A. This fuse offers excellent cycling capability and DC performance. It is suitable for semiconductor protection and DC common bus applications.

• High speed fuse
• Ferrule end X ferrule end
• Class aR

Product Highlights

The BUSSMANN FWP-1A14F high speed fuse is ideal for AC and DC drives, power converters/rectifiers, and variable speed drives.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FWP-1A14F
• Country of Origin: HU - Hungary

Technical Specifications

• Product Name: Eaton Bussmann series high speed cylindrical fuse
• Catalog Number: FWP-1A14F
• UPC: 051712795098
• EAN: 5027590500272
• Product Length/Depth: 51 mm
• Product Height: 15 mm
• Product Width: 15 mm
• Global Catalog: FWP-1A14F
• Product Type: High speed cylindrical fuse
• Amperage Rating: 1 A
• Accessories: CH14 Modular fuse holderFW14-PCB
• Breaking capacity: 200 kA
• Frequency rating - max: 62 Hz
• Frequency rating - min: 45 Hz
• Fuse indicator: Non Indicating
• Release characteristic: Other
• Utilization category: aR (accompanied semiconductor protection)
• Voltage type: AC/DC
• Fuse size: 14 x 51 mm
• Rated voltage AC: 700 V
• Class: GR
• Clearing (I2T): 0.41
• Watt losses: 5.7 W
• Fuse shape: Cylindrical
• Pre arc (I2T): 0.04
• Color: White
• Interrupt rating: 200 kAIC
• Connection: Ferrule end x ferrule end
• Construction size: 14 mm x 51 mm
• Material: Ceramic
• Packaging type: Standard
• Voltage rating: 700 V
• Type: High speed fuse
• Application: Semiconductor, DC Common bus, DC drives, Power converters/rectifiers
• Fuse type: FWP-A14F
• Breaking capacity at nominal voltage, AC: 200 kA
• Breaking capacity at nominal voltage, DC: 50 kA
• Mfr. #: FWP-1A14F
• Mfr.: Bussmann / Eaton
• ECCN: EAR99
• UNSPSC: 39121625
• Frequency Rating: 62 Hz
• Fuse Interrupt Rating: 200 kAIC
• Rated Voltage: 700V
• Shape: Rectangular
• Fuse Amps: 1A
• Color Family: White
• Length: 2.0079 in.
• Height: 0.5906 in.
• Width: 0.5906 in.
• Ampere: 1 A
• Speed: Fast Blow
• Approvals: UL
• Dimensions: 0.56" Dia x 2" L (14.3x50.8mm)
• Item weight: 1.5 oz
• Other names: FWP 1A14F, FWP1A14F
