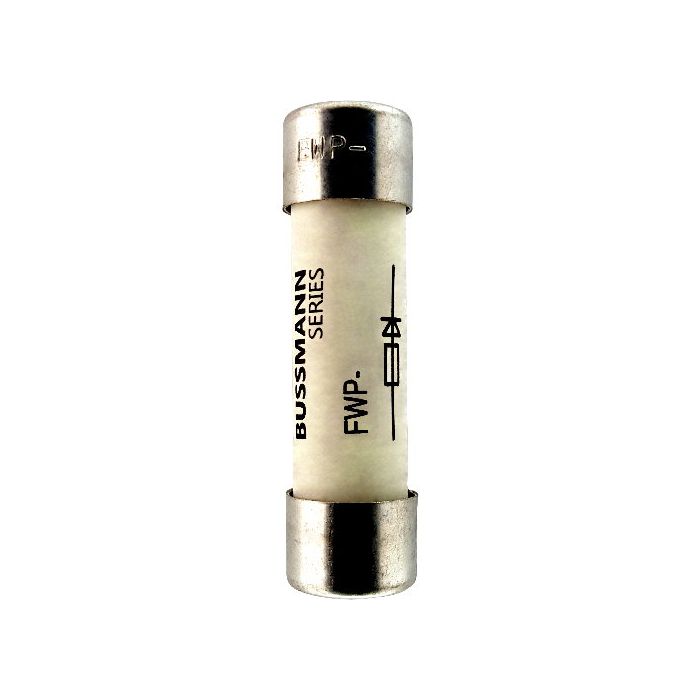

Bussmann FWP-15A14F High Speed Cylindrical Fuse 15 Amp

Product Description

The BUSSMANN FWP-15A14F is a high-speed fuse with excellent cycling capability and DC performance. It is rated for 700 Vac (UL), 700 Vdc (UL), and 690 Vac (IEC), with a 15A amperage rating. This fuse is suitable for semiconductor protection, DC common bus, DC drives, and power converters/rectifiers.

• High speed fuse
• Non Indicating
• Ferrule end X ferrule end

Product Highlights

The BUSSMANN FWP-15A14F high speed fuse offers reliable protection for various applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FWP-15A14F

Technical Specifications

• Product Name: Eaton Bussmann series high speed cylindrical fuse
• Catalog Number: FWP-15A14F
• UPC: 051712795937
• EAN: 5027590500210
• Product Length/Depth: 51 mm
• Product Height: 15 mm
• Product Width: 15 mm
• Global Catalog: FWP-15A14F
• Product Type: High speed cylindrical fuse
• Used with: Finger safe holders/blocks and striker
• Amperage Rating: 15 A
• Accessories: CH14 Modular fuse holderFW14-PCB
• Breaking capacity: 200 kA
• Frequency rating - max: 62 Hz
• Frequency rating - min: 45 Hz
• Fuse indicator: Non Indicating
• Release characteristic: Other
• Utilization category: aR (accompanied semiconductor protection)
• Voltage type: AC/DC
• Fuse size: 14 x 51 mm
• Rated voltage AC: 700 V
• Rated voltage DC: 700 V
• Class: Class aR
• Clearing (I2T): 70
• Watt losses: 5.5 W
• Fuse shape: Cylindrical
• Minimum melting: 8.6 I2t (A2 sec)
• Pre arc (I2T): 10
• Material: Ceramic
• Packaging type: Standard
• Quantity: 10
• Voltage Rating: 700 V
• Type: High speed fuse
• Application: Semiconductor, DC Common bus, DC drives, Power converters/rectifiers
• Fuse type: FWP-A14F
• Breaking capacity at nominal voltage, AC: 200 kA
• Breaking capacity at nominal voltage, DC: 50 kA
• Amps: 15
• Volts AC: 700
• Fuse Type: Semiconductor
• Acting Speed: Fast Acting
• Mounting: Stud Mount
• Physical Size: 0.563" x 2"
• Interrupting Rating (RMS): 200,000 AIC
• Interrupting Rating (DC): 10,000 AIC @ 700 VDC
• Voltage: 660 Volts
• Maximum Current: 15 Amps
• Mounting Type: Through-Hole Mount
• Ampere: 15 A
• Voltage rating: 800 VAC
• Interrupt rating: 200 kA
• Speed: Fast Blow
• Shape: Cartridge Fuses
• Approvals: UL
• Dimensions: 0.56" Dia x 2" L (14.3x50.8mm)
• Applications: DC Common Bus, DC Drives, Power Converters/Rectifiers, Reduced Voltage Starters
• Connection Type: Ferrule
• End Type: Ferrule
• Size: 0.563 In Diameter X 2.000 In Length
• Standard: CSA,E2186,UL
• TC Connection: Ferrule End X Ferrule End
• Brand: Eaton
• Sub Brand: Bussmann Series
