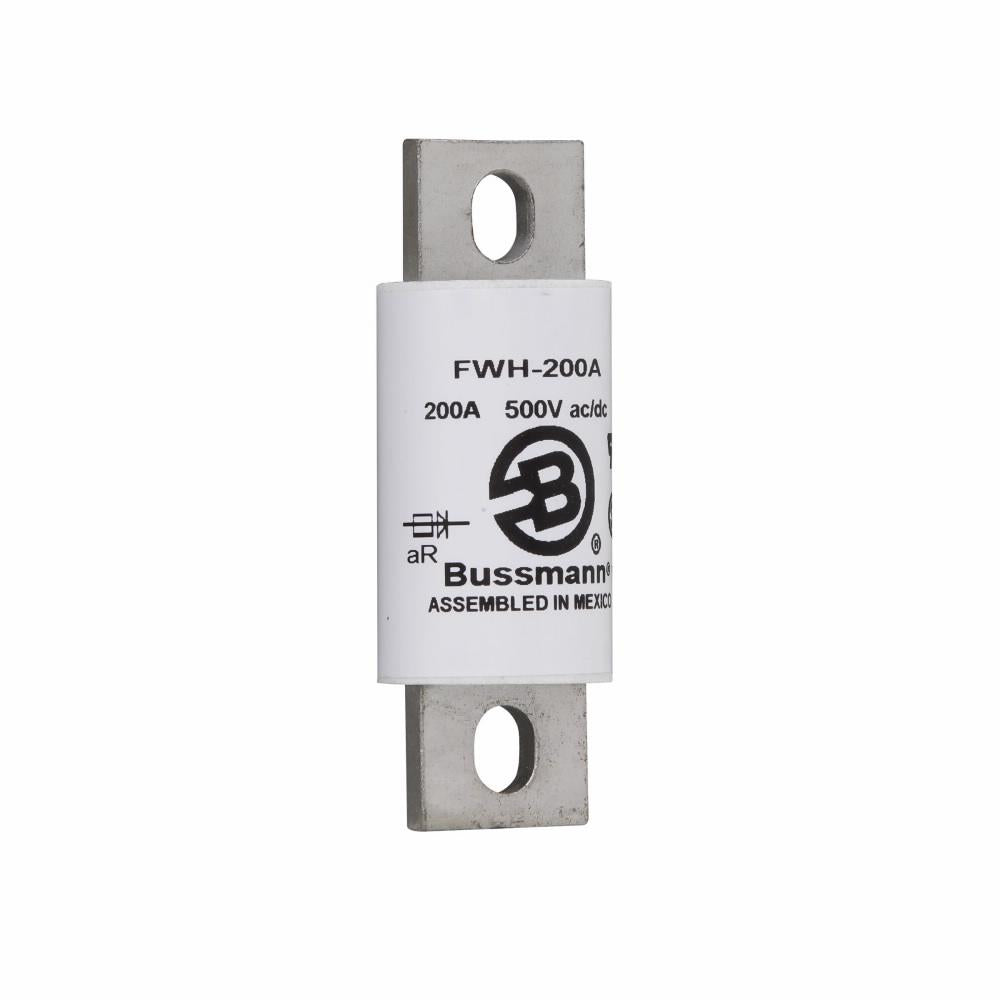

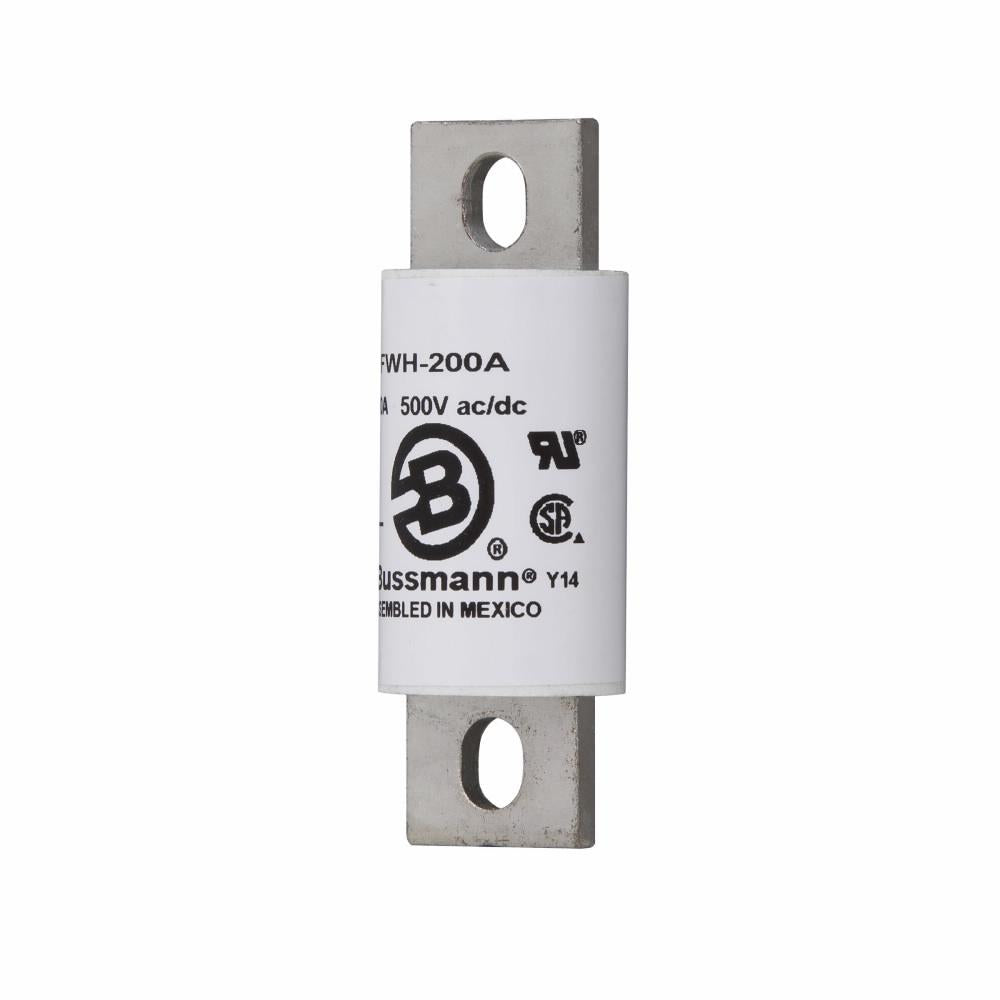

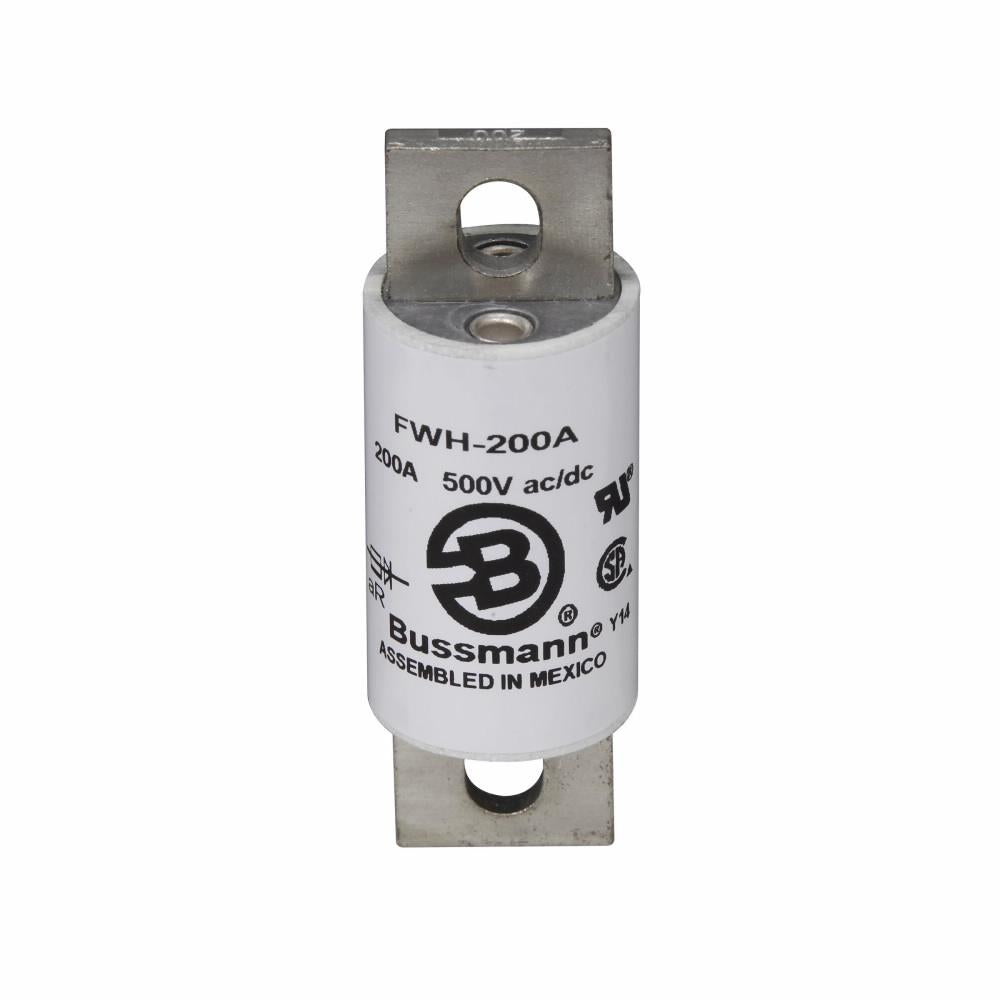

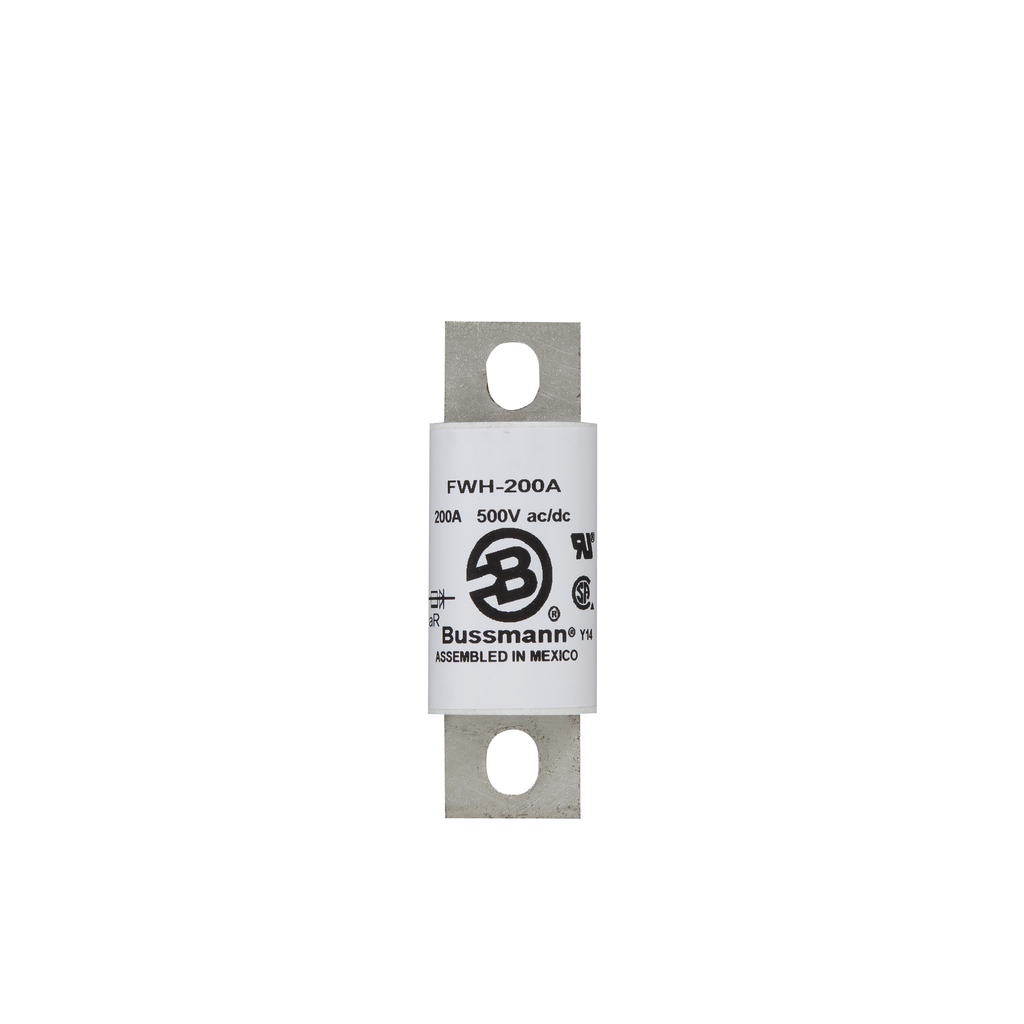

Bussmann FWH-200A 200 Amp High Speed Fuse 1000 VAC/800 VDC

Product Description

The Bussmann Series FWH-200A is a high-speed fuse designed for reliable circuit protection. This fuse operates at 200 Amps and is rated for 1000 Volts AC and 800 Volts DC. The design features a stud mounting type with a cartridge body. This fuse is suitable for a variety of applications in power distribution and is optimized for thermal dissipation, making it effective in high current cycling environments.

• 200 Amps rating for high power applications
• Designed for 1000 Volt AC and 800 Volt DC environments
• Stud mounting for easy installation

Product Highlights

The Bussmann high-speed fuse is ideal for protecting components like diodes and IGBTs in harsh DC applications. It ensures safe operation under heavy load conditions.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Voltage Rating: 1000 VAC/800 VDC
• Amperage Rating: 200 A
• Body Size: 1.156 inches Diameter x 3.625 inches Length
• Mounting Type: Stud
• Material: Fiberglass
• Interrupt Rating: 50/200 kAIC
• Series: FWH
• Indicating/Non-Indicating: Non-Indicating
