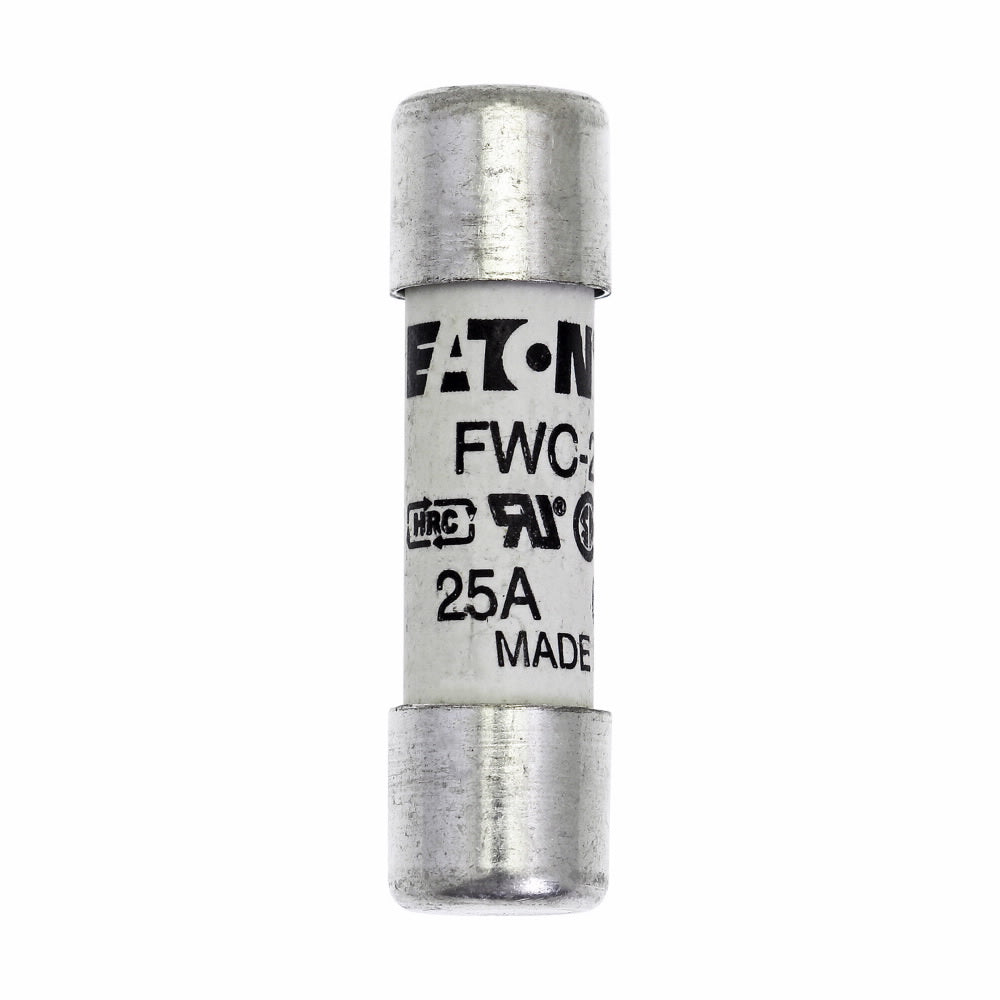

EATON Bussmann FWC-25A10F High Speed Cylindrical Fuse 25 A
EATON Bussmann FWC-25A10F High Speed Cylindrical Fuse 25 A
EATON Bussmann FWC-25A10F High Speed Cylindrical Fuse 25 A
EATON Bussmann FWC-25A10F High Speed Cylindrical Fuse 25 A

Bussmann FWC-25A10F High Speed Cylindrical Fuse 25 A

EATON
Brand: EATON
SKU: FWC-25A10F
Availability: In Stock

Ships same day if ordered by 12 pm
$68.56
$68.56
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BUSSMANN FWC-25A10F is a high-speed cylindrical fuse designed for semiconductor protection. Rated at 25A and 600 VAC/VDC, it offers a 200 kAIC interrupt rating. This fuse features a ferrule end x ferrule end connection and is suitable for DC common bus, DC drives, and power converters/rectifiers.

  • High speed fuse
  • Ferrule end X ferrule end
  • Semiconductor Fuse

Product Highlights

High-speed fuse with excellent cycling capability and DC performance, designed for semiconductor protection.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: FWC-25A10F
  • Country of Origin: IN
Technical Specifications
Product Name
Eaton Bussmann series high speed cylindrical fuse
Catalog Number
FWC-25A10F
UPC
051712796477
EAN
5027590420600
Product Length/Depth
38 mm
Product Height
11 mm
Product Width
11 mm
Global Catalog
FWC-25A10F
Product Type
High speed cylindrical fuse
Amperage Rating
25 A
Accessories
BMM Fuse block CHM modular fuse holder
Breaking capacity
200 kA
Frequency rating - max
62 Hz
Frequency rating - min
45 Hz
Fuse indicator
Other
Release characteristic
Other
Utilization category
aR (accompanied semiconductor protection)
Voltage type
AC/DC
Fuse size
10 x 38 mm
Rated voltage AC
600 V
Rated voltage DC
700 V
Class
Class aR
Clearing (I2T)
390
Watt losses
6 W
Fuse shape
Cylindrical
Pre arc (I2T)
60
Interrupt rating
200 kAIC Vac
Connection
Ferrule end x ferrule end
Construction size
10 x 38 mm 10 mm x 38 mm
Material
Ceramic
Packaging type
Standard
Voltage Rating
600 V
Type
High speed fuse
Application
Semiconductor, DC Common bus, DC drives, Power converters/rectifiers
Fuse type
FWC-A10F
Breaking capacity at nominal voltage, AC
200 kA
Breaking capacity at nominal voltage, DC
10 kA
Voltage
600V AC / DC
Speed
Extremely Fast Acting
Features
Current Limiting
Physical Size
13/32" x 1 1/2"
Equivalent
Mersen A60Q Style
AC Voltage Rating
600
DC Voltage Rating
600
AC Interrupting Rating
200,000 AIC
DC Interrupting Rating
100,000 AIC
UL
UL Recognized Component
AC UL guide
JFHR2 File E60314
DC UL file
E60314
Ampere
25 A
Frequency
45 to 1000 Hz
Terminal Type
Ferrule
Mounting Type
Holder
Body Style
Cylindrical
Element
Single
Body Material
Ceramic
Body Size
0.406 in Dia x 1.5 in L
Alternate Catalog Number
FWC-25A10F
Height
0.43 in
Length
1.50 in
Standard
UL Recognized ,CSA Certified,CE Marked,RoHS Compliant
Standards
ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCE CertifiedCSA Certified
Sub Brand
Bussmann Series
UNSPSC
39121628
UPC 11
05171279647
UPC 12
051712796477
Width
0.43 in
Brand
Bussmann
Manufacturer
Eaton
Size
0.406 In Diameter X 1.500 In Length
