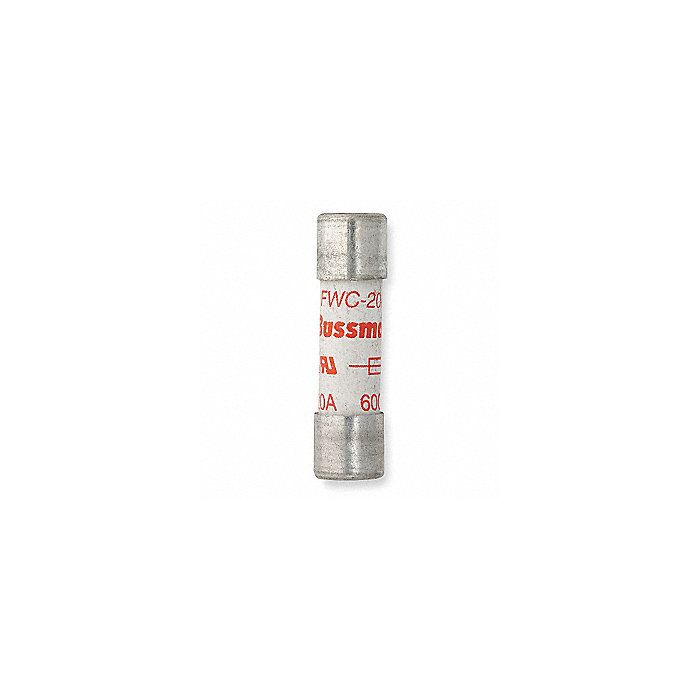

Bussmann FWC-12A10F Fuse 12 A

Product Description

The Bussmann FWC-12A10F is a high-speed cylindrical fuse. This 12A fuse is designed with ferrule end x ferrule end connections. It is suitable for semiconductor, DC common bus, DC drives, and power converters/rectifiers applications. The fuse is UL Recognized Component.

• High speed fuse
• Ferrule end X ferrule end
• Semiconductor Fuse

Product Highlights

The Bussmann FWC-12A10F fuse offers excellent cycling capability and DC performance with low arc voltage and low energy let-through.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: FWC-12A10F
• Country of Origin: Canada

Technical Specifications

• Product Name: Eaton Bussmann series high speed cylindrical fuse
• Catalog Number: FWC-12A10F
• Product Length/Depth: 38 mm
• Product Height: 11 mm
• Product Width: 11 mm
• Amperage Rating: 12 A
• Breaking capacity: 200 kA
• Frequency rating - max: 62 Hz
• Frequency rating - min: 45 Hz
• Fuse indicator: Other
• Release characteristic: Other
• Utilization category: aR (accompanied semiconductor protection)
• Voltage type: AC/DC
• Fuse size: 10 x 38 mm
• Rated voltage AC: 600 V
• Rated voltage DC: 700 V
• Class: Class aR
• Clearing (I2T): 120
• Watt losses: 3 W
• Fuse shape: Cylindrical
• Pre arc (I2T): 15
• Interrupt rating: 200 kAIC Vac
• Connection: Ferrule end x ferrule end
• Construction size: 10 x 38 mm 10 mm x 38 mm
• Material: Ceramic
• Packaging type: Standard
• Voltage rating: 600 V
• Type: High speed fuse
• Application: Semiconductor, DC Common bus, DC drives, Power converters/rectifiers
• Fuse type: FWC-A10F
• Breaking capacity at nominal voltage, AC: 200 kA
• Breaking capacity at nominal voltage, DC: 10 kA
• Brand: Bussmann
• Model: FWC-12A10F
• AC Voltage Rating: 600
• DC Voltage Rating: 600
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Physical Size: 13/32" x 1 1/2"
• Category: Fuses
• Fuse Type: Cartridge
• Body Style: Cylindrical
• Interrupting Rating: 200 kA at 600 VAC
• Product: Semiconductor Fuses
• Termination Style: Clip
• Fuse Size / Group: 10 mm x 38 mm
• Series: FWC
