EATON Bussmann FWA-20A10F Fuse, 20 Amp, 150V
EATON Bussmann FWA-20A10F Fuse, 20 Amp, 150V

Bussmann FWA-20A10F Fuse, 20 Amp, 150V

EATON
Brand: EATON
SKU: FWA-20A10F
Availability: In Stock

Ships same day if ordered by 12 pm
$66.01
$66.01
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

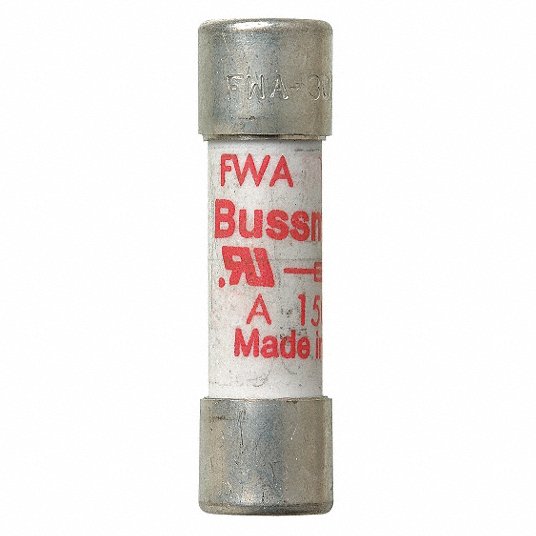

The BUSSMANN FWA-20A10F is a high-speed, low-voltage fuse with a ferrule style. This 20A fuse is designed to protect current-sensitive equipment by responding rapidly to changes in current. It features a cylindrical body with conductive metal caps for easy installation and removal.

  • 20 Amps
  • 150V AC/DC
  • High speed low voltage fuse

Product Highlights

Fast-acting fuse for protecting sensitive equipment from current changes. Ideal for semiconductor, DC common bus, DC drives, and power converters/rectifiers applications.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: FWA-20A10F
  • Country of Origin: Hungary
Technical Specifications
Product Type
High speed cylindrical fuse
Amperage
20 A
Voltage
150 V
Product Name
Eaton Bussmann series high speed cylindrical fuse
Catalog Number
FWA-20A10F
UPC
051712795227
EAN
5027590499187
Product Length/Depth
39 mm
Product Height
11 mm
Product Width
11 mm
Compliances
CE Marked RoHS Compliant
Certifications
CSA Certified UL Recognized
Global Catalog
FWA-20A10F
Accessories
BMM Fuse blockCHM modular fuse holder
Breaking capacity
200 kA
Frequency rating - max
62 Hz
Frequency rating - min
45 Hz
Fuse indicator
Other
Release characteristic
Other
Utilization category
aR (accompanied semiconductor protection)
Voltage type
AC/DC
Fuse size
10 x 38 mm
Rated voltage AC
150 V
Rated voltage DC
150 V
Class
Class aR
Clearing (I2T)
130
Watt losses
3.8 W
Fuse shape
Cylindrical
Pre arc (I2T)
33
Interrupt rating
100 kAIC
Connection
Ferrule end x ferrule end
Construction size
10 x 38 mm 10 mm x 38 mm
Material
Ceramic
Packaging type
Standard
Voltage rating
150 V
Type
High speed fuse
Application
Semiconductor, DC Common bus, DC drives, Power converters/rectifiers
Fuse type
FWA-A10F
Breaking capacity at nominal voltage, AC
200 kA
Breaking capacity at nominal voltage, DC
50 kA
Brand
BUSSMANN
Series
FWA
Manufacturer Part Number
FWA-20A10F
AC Voltage Rating
150 V AC
Body Material
Melamine
Compatible Fuse Block Series
1BS; CHM; HPS
Current Rating
20 A
DC Voltage Rating
150 V DC
Element
Single
Fits Fuse Block Style
Non-Rejection
Fuse Body Style
Cylindrical
Fuse Diameter x Length
13/32 in x 1-1/2 in
Interrupt Rating - AC
100 kA
Interrupt Rating - DC
100 kA
Overall Diameter
13/32 in
Overall Length
1-1/2 in
Speed
Fast-Acting
Standards
CE; UL Recognized
Visual Indication
Non-Indicating
UNSPSC
39121612
Amps
20
Volts AC
150
Fuse Type
Semiconductor
Interrupting Rating RMS
100,000 AIC
Interrupting Rating VDC
20,000 AIC @ 150 VDC
Interrupting Rating VDC2
100,000 AIC @ 80 VDC
Physical Size
10 x 38 mm
